Topcon Paver System 5 User Manual

Control Methods
P/N 7010-0341 www.topconpositioning.com
2-25

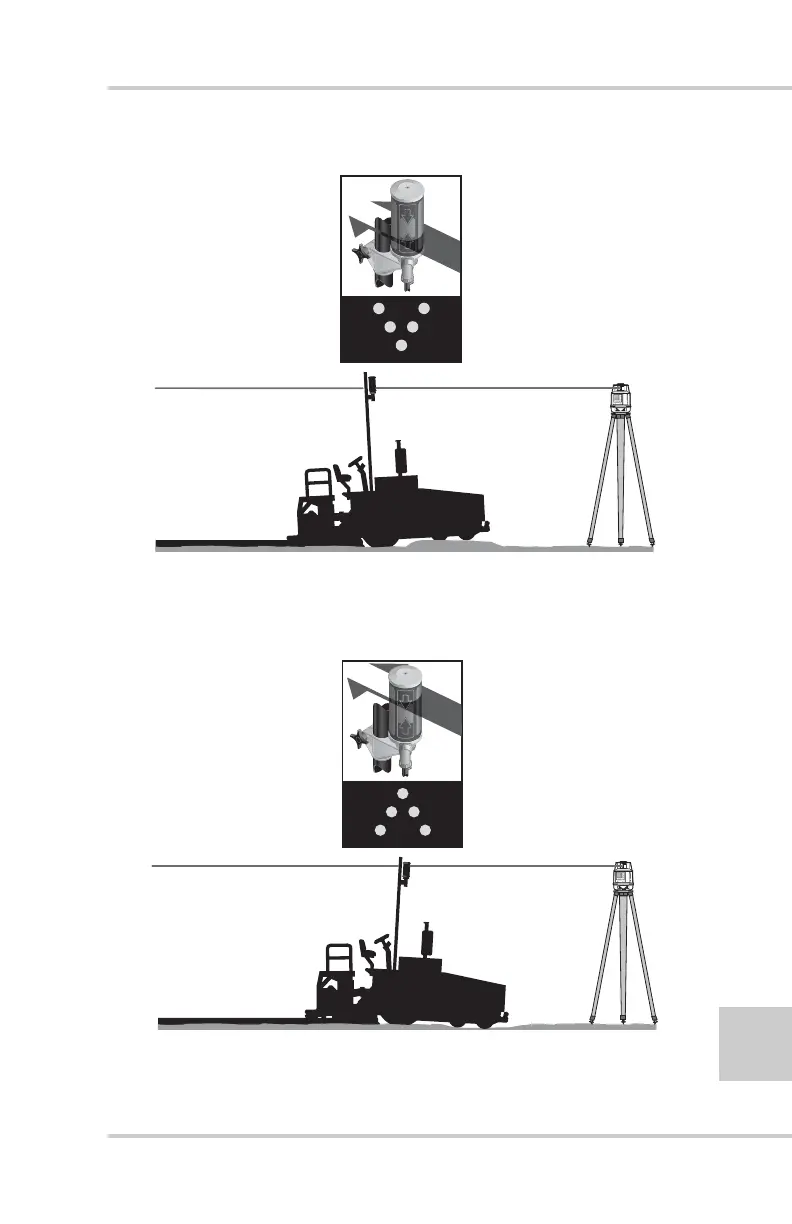

Figure 2-27. Laser Control – Above Grade
As screed is lowered the beam of light hits the Laser Receiver
above the center a raise signal is indicated (Figure 2-28).
Figure 2-28. Laser Control – Below Grade
+
+

Topcon Paver System 5 Specifications

General

Brand	Topcon
Model	Paver System 5
Category	Control Systems
Language	English
