Control Methods
P/N 7010-0341 www.topconpositioning.com
2-27
If the required slope changes, the screed operator dials the new
slope into the System Five Control Box (Figure 2-30). The tow
point cylinder on the slope side will raise or lower until the
slope sensor measures the new slope.

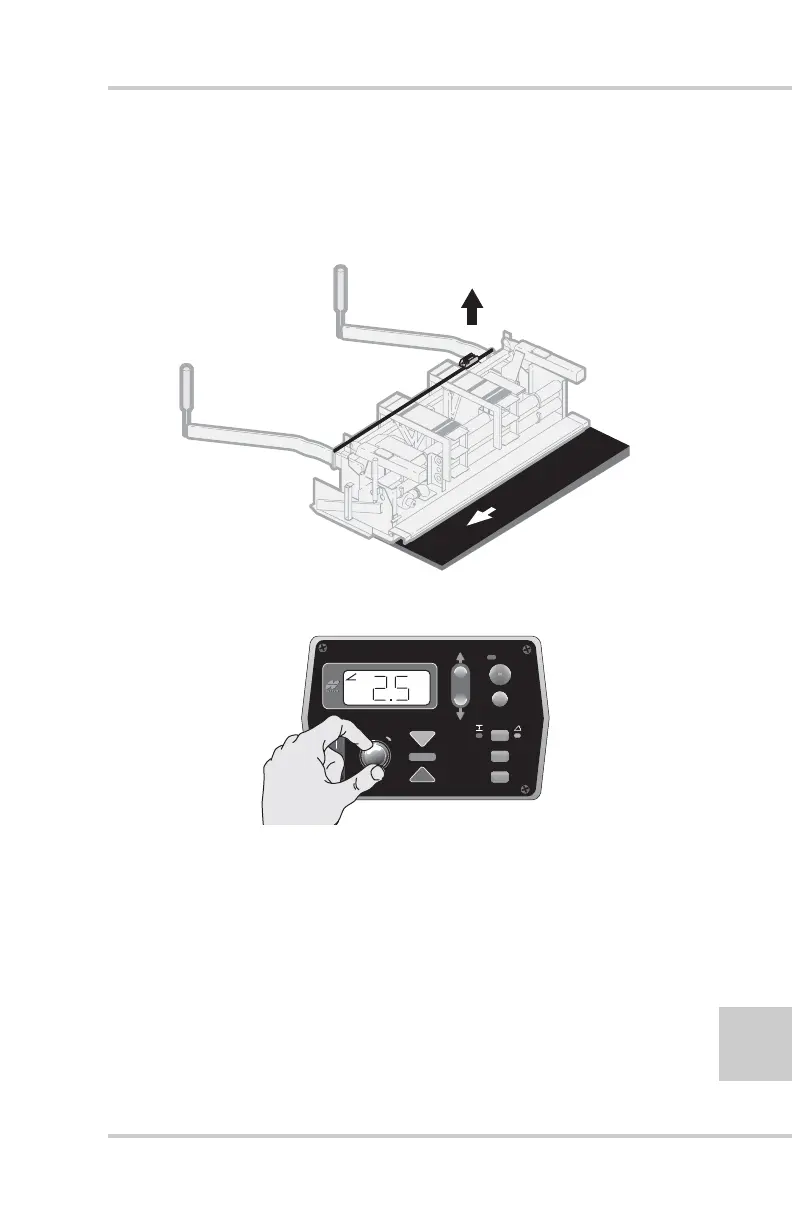

Figure 2-30. System Five Box directing the Slope Sensor position
FiveSystem
AU
TO
S
UR
VEY
SET
(M
E
NU
)
2.5% Slope
%
+
