• If the road slopes down from the stringline, the stringline
will need to be raised (Figure 3-15).

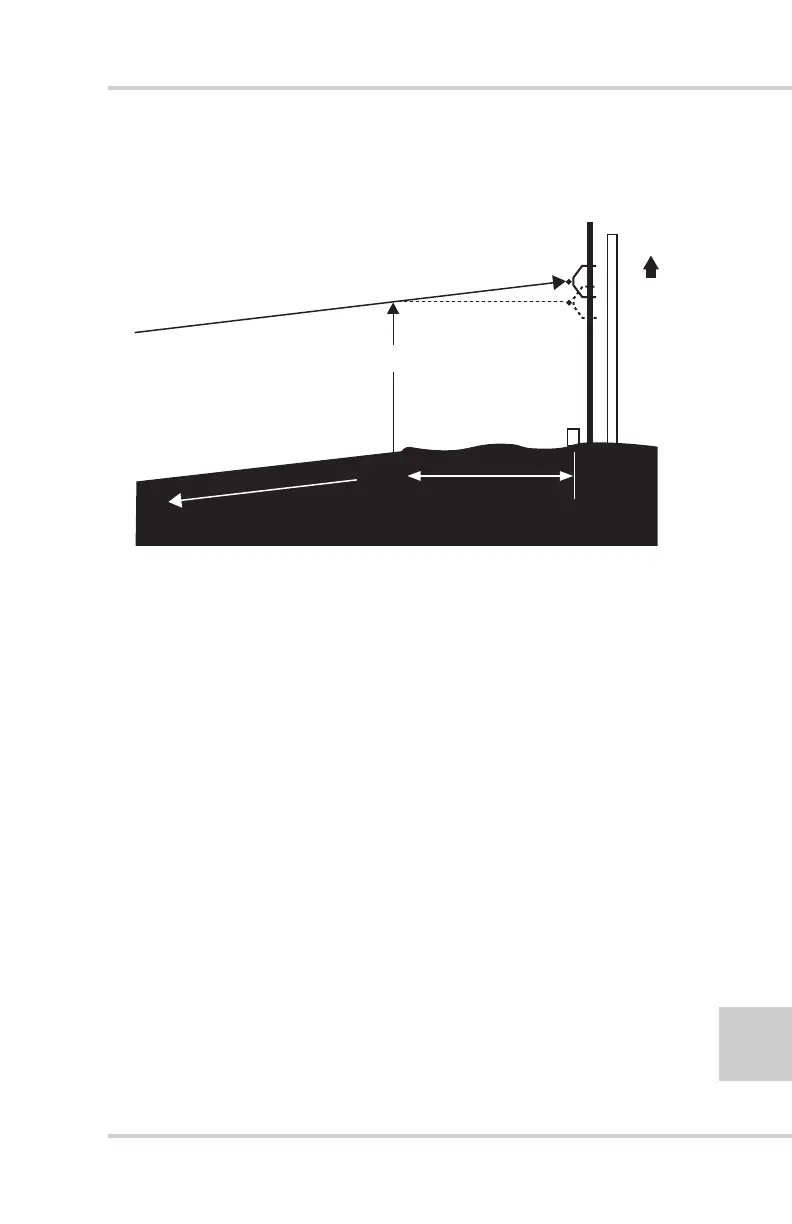

Figure 3-15. Raise Stringline: 3% Cross Slope with 2 Foot Offset
3. Repeat step 2 for each station.
2.0' OFFSET
2.0'
2%
PROJECTED SLOPE
3.0% SLOPE X 2.00' OFFSET = .06'
RAIS
E
.06'
3.0% SLO PE
