Greensmaster 3250--D Hydraulic SystemPage 4 -- 103
5. Removecaps crewandflatwashersecuringthecon-
sole shroud to the hydraulic tank. Remove both cap
screwsandflat washers securingtheconsole shroud to
the lower panel (Fig. 73).
6. Remove three (3) washer head screws that secure
the mounting plate (item 29) to the f rame. Two screws
are located on the top of the plate at the front corners of
thehydraulictank.Thethirdscrewisinfrontofthecastor
fork and below the plate.
7. Tilt mounting plate assembly up by lifting at the rear
ofthemachine. Prop up plate securely.Remove four(4)
cap screws (item 16), flat washers (item 12) and grom-
mets(item13) securing the hydraulic tanktothemount-
ing plate.
8. Remove hydraulic tank from the mounting plate.
Inspecting Reservoir Parts (Fig. 70)
1. Clean tank and filler screen with solvent.
2. Inspect tank for leaks, cracks or other damage.
3. Replace hydraulic hoses if worn or leaking.
Installing Hydraulic Reservoir (Fig. 70)
1. Placeantiseizelubricantintoallfour(4)insertsatthe
bottom of the hydraulic tank. Position tank onto the
mounting plate.
2. Securehydraulictanktothemountingplatewithfour
(4) cap screws (item 16), flat washers (item 12) and
grommets (item 13). Torque cap screws from 30 to 60
in--lb (3.4 to 6.8 N--m).
3. Secure mounting plate to the frame with three (3)
washer head screws. Two screws go on the top of the
plateatthefrontcornersofthefueltank.Thethirdscrew
goes in front of the castor fork and below the plate.
4. Secureconsoleshroudtothehydraulictankwithcap
screw and flat washer and to the lower panel with both
cap screws and flat washers (Fig. 73).
5. Secure return hose (item 21) to hydraulic barb fitting
(item9)withhoseclamp.
6. Secure pump inlet hose to gear pump with hose
clamp (Fig. 71).
7. Connect hose assembly to the hydraulic fitting
welded to the reel motor case drain tube located below
the right side of the frame (Fig. 72).
8. Fill hydraulic tank with new hydraulic oil.
9. F ollow Hydraulic System Start--up procedures (see
Hydraulic System Start--up in this section).

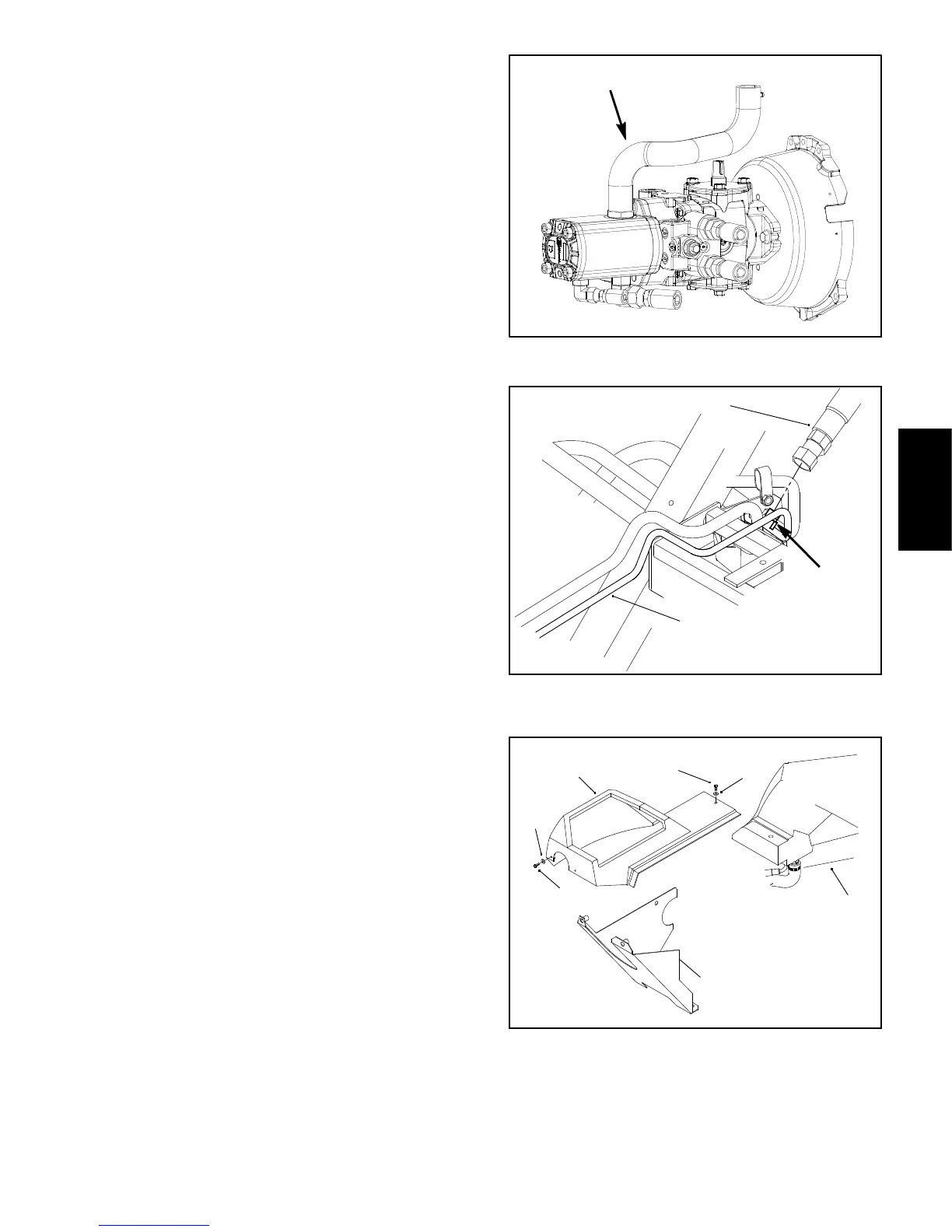

Figure 71
PUMP INLET HOSE
1. Hose assembly 2. Case drain tube
Figure 72
1
2
WELDED
FITTING
1. Cap screw
2. Cap screw
3. Flat washer
4. Console shroud
5. Hydraulic tank
6. Lower panel
Figure 73
2
3
3
1
4
5
6
Hydraulic
System
