Greensmaster 3250--DHydraulic System Page 4 -- 100

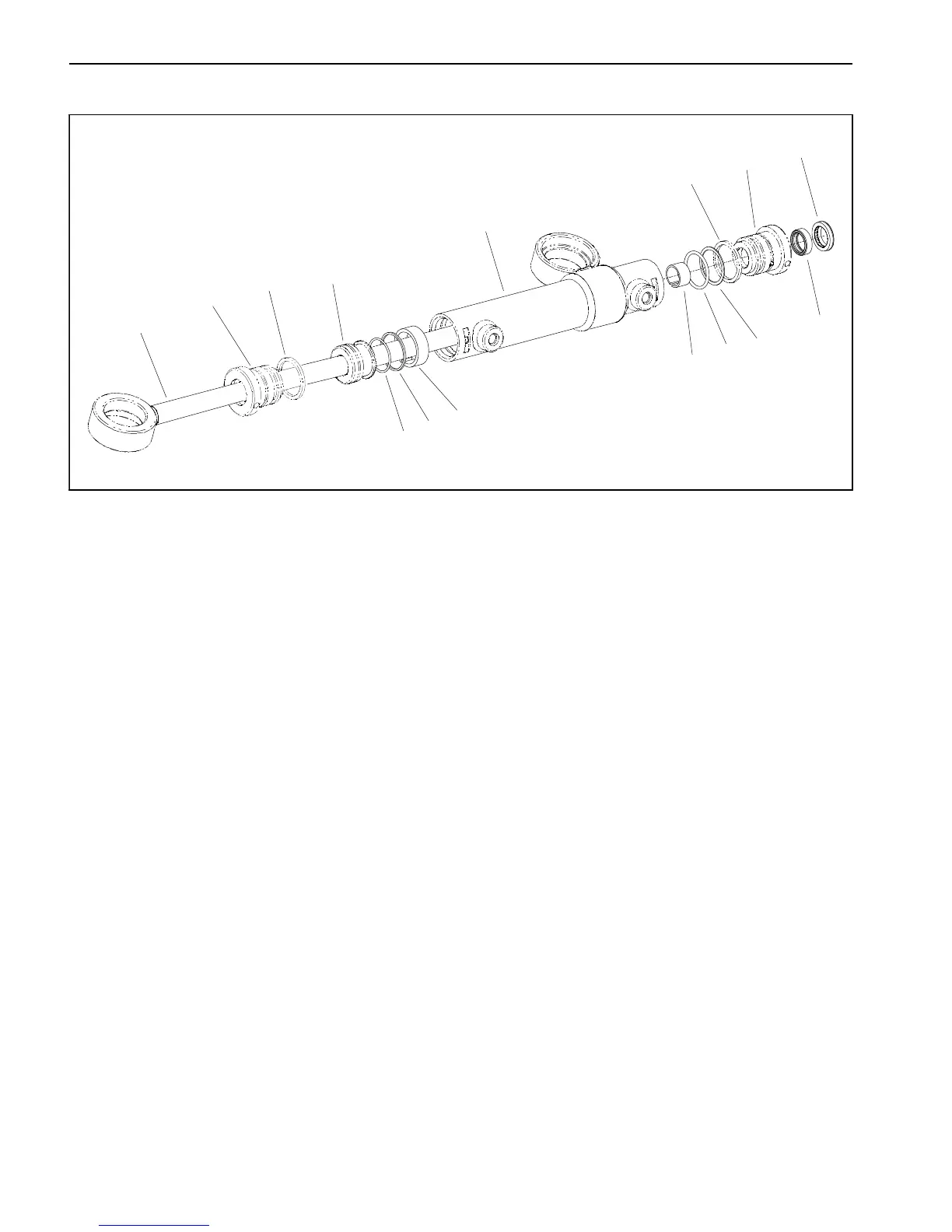

Steering Cylinder Service
Figure 69
v
1. Rod
2. Wiper
3. Seal
4. Head (non--ball joint end)
5. Backup ring
6. O--ring
7. Wear ring
8. Barrel
9. Back--up ring
10. Seal
11. Wear ring
12. Retaining ring
13. Piston
14. Head (ball joint end)
2
3
4
5
13
10
9
11
1
6
14
7
8
12
12
NOTE: The steering cylinder design does not allow re-
moval o f the piston (item 13) from the rod. This cylinder
designpreventsreplacingtheO--ringontheinsideofthe
pistonandalsothe sealson theballjointendhead(item
14).Ifasteeringcylinderleakexistsonthenon--balljoint
end head (item 4), all seals on that head can be re-
placed.Thepistonouterseals(items9and10)andwear
ring(item11)canbereplacedaswell.Ifleakageordam-
age exists at other cylinder locations that cannot be dis-
assembled, steering cylinder replacement will be
necessary.
