Greensmaster 3250--D
DPA Cutting Units
Page 7 -- 4
Special Tools
Special tools for servicing Toro Commercial Products
are available from your Toro Distributor. Some of these
tools may have been supplied with your machine or are
available as Toro parts.

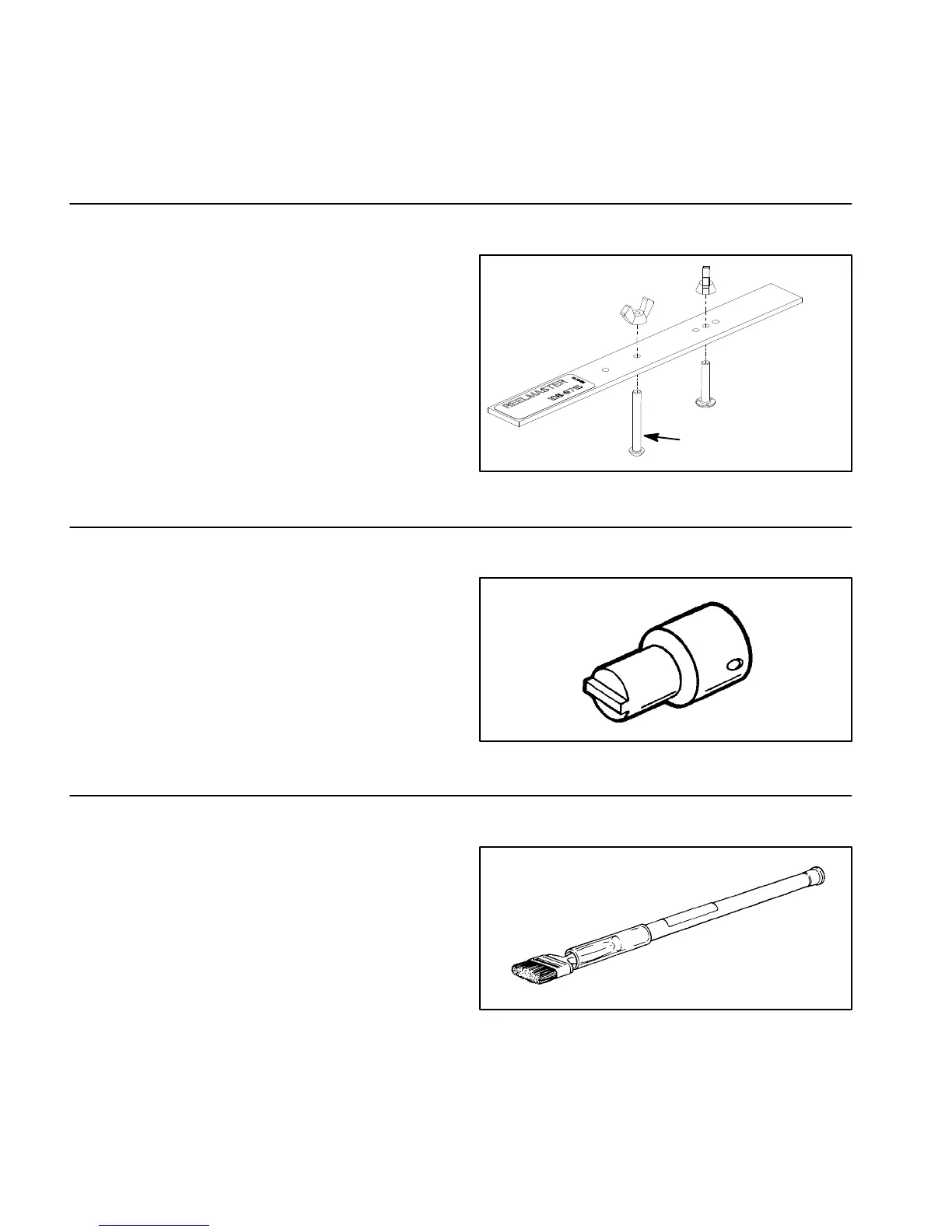

Gauge Bar Assembly
Use gauge bar to verify height--of--cut adjustment.
Toro Part Number: 108--6715
Figure 3
Used for Height--of--
Cut adjustment
Bedknife Screw Tool
Thisscrewdriver--typebitismadetofitTorobedknifeat-
taching screws. Use this bit with a torque wrench to se-
cure the bedknife to the bedbar.
IMPORTANT: To prevent damage to the bedbar, DO
NOT use an air or manual impact wrench with this
tool.
Toro Part Number: TOR510880
Figure 4
Handle Assembly
For applying lapping compound to cutting units while
keeping hands a safe distance from the rotating reel.
Toro Part Number: 29--9100
Componentsforthehandleassemblyareavailableindi-
vidually as follows:
Brush 36--4310
Handle 29--9080
Handle cap 2410--18
Figure 5
