Greensmaster 3250--D
Page 5 -- 24
Electrical System
Fusible Links
The electrical system on Greensmaster 3250--D ma-
chines includes a harness with three (3)fusible links for
machinecircuit protection(Fig.29).Thefusible linkhar-
ness is connected to the engine starter motor B+ termi-
nal.Thefusiblelinkharnessconnectsthe machinewire
harness to the positive (+) battery terminal.
Anadditionalfusible linkisincludedin thewireharness.
This fusible link connects the starter terminal to the en-
gine fuel solenoid pull coil.
If any of these links should fail, current to the protected
circuit will cease. Refer to the electrical schematic and
wireharnessdrawings in Chapter9 -- FoldoutDrawings
for additional circuit information.
Testing
Makesure thatignitionswitchisOFF.Disconnectnega-
tive(--) battery cable from battery terminal and then dis-
connect positive (+) cable from battery (see Battery
Servicein the Service andRepairs section of this chap-
ter). Locate fusible link harness and unplug fusible link
connectorfromwire harness.Useamultimeter to make
surethatcontinuityexistsbetweenthefusiblelinktermi-
nals.Ifafusiblelink isopen,replace thefusible link har-
ness.
After testing is complete, make sure that fusible link is
securely attached to engine component and wire har-
ness. Connect positive battery cable to battery terminal
first and then connect negative cable to battery.

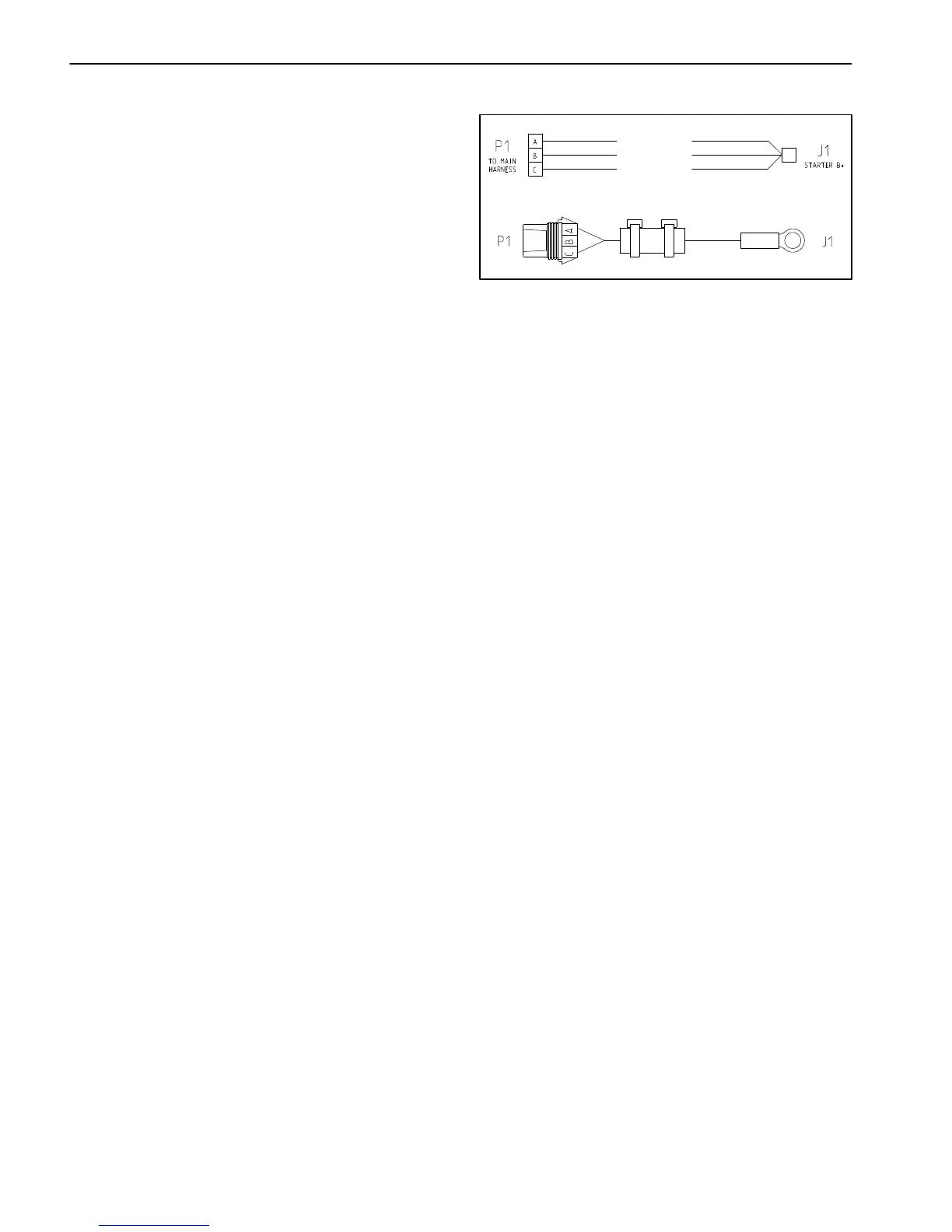

Figure 29
FUSIBLE LINK
FUSIBLE LINK
FUSIBLE LINK
