Toro 04470 Service Manual

Greensmaster 3250--DGroomer Page 8 -- 2
Specifications

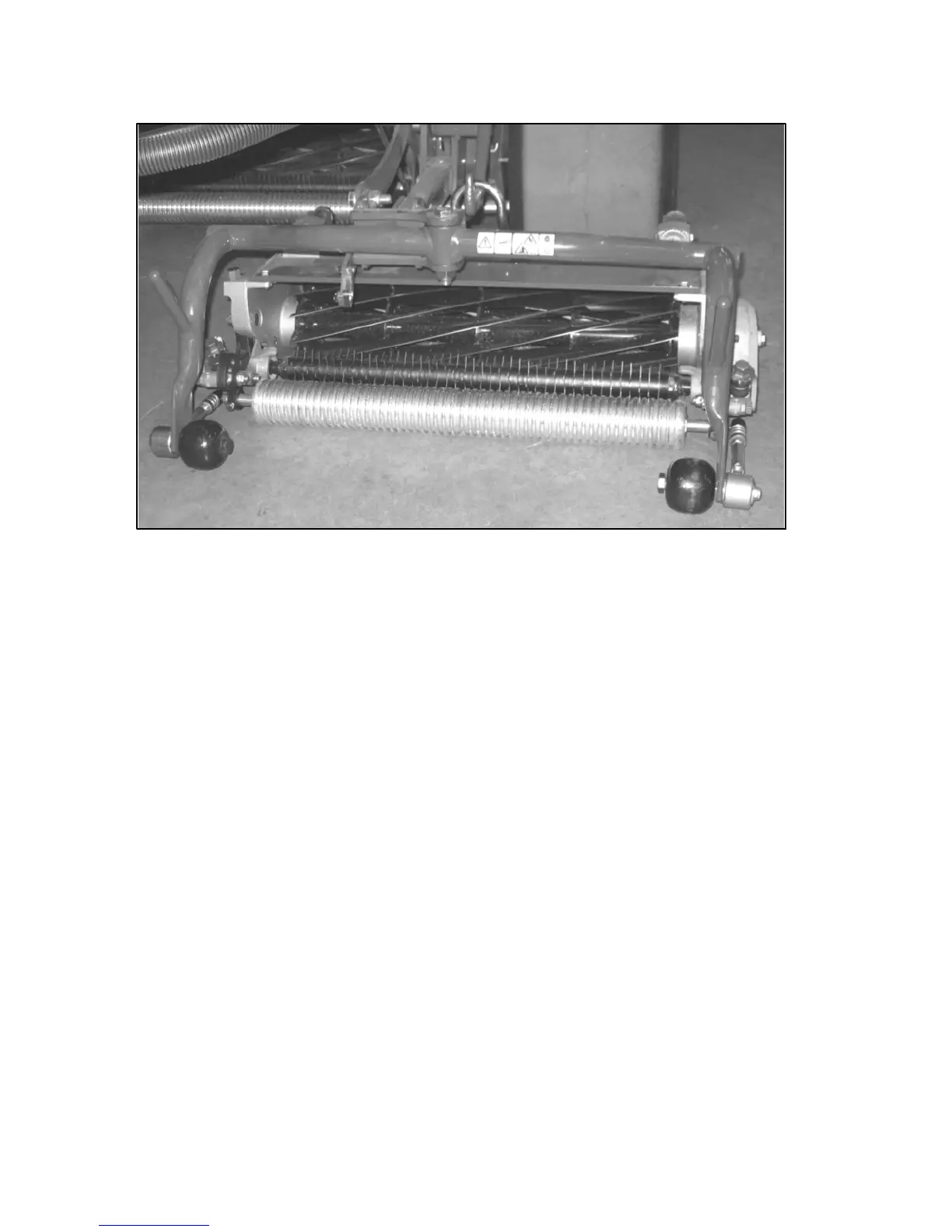

MOUNTING: The groomer is mounted to the DPA cut-
ting unit side plates. The drive assembly for the groom-
ingreel islocatedon theoppositesideof thecuttingunit
from the hydraulic cutting reel motor.
GROOMING REEL CONSTRUCTION: 2.375 inch (6
cm) diameter, 41 steel blades with 1/2 inch blade spac-
ing.Bladespacingcanbeadjustedto1/4inchor3/4inch
byalteringthenumberandposition of blade spacerson
thegroomer. Groomerbrushcanbeinstalledin place of
grooming reel.
GROOMER HEIGHT SETTING: From 0.030 to 0.620
inch (0.8 to 15.7 mm) at mowing HOC range o f 0.060 to
0.750inch(1.5to19.1mm).
WIDTH--OF --GROOMER: 19.380 inches (49.2 cm).
HEIGHT ADJUSTMENT KNOB: Allows a 0.003 inch
(0.08mm) increment of heightadjustmentfor each click
of the adjuster.
UP--DOWN FEATURE: Allows grooming reel to be
raisedabovetheheight/depthadjustmentfornogroom-
ing reel action while cutting.
