Greensmaster 3250--DHydraulic System Page 4 -- 56

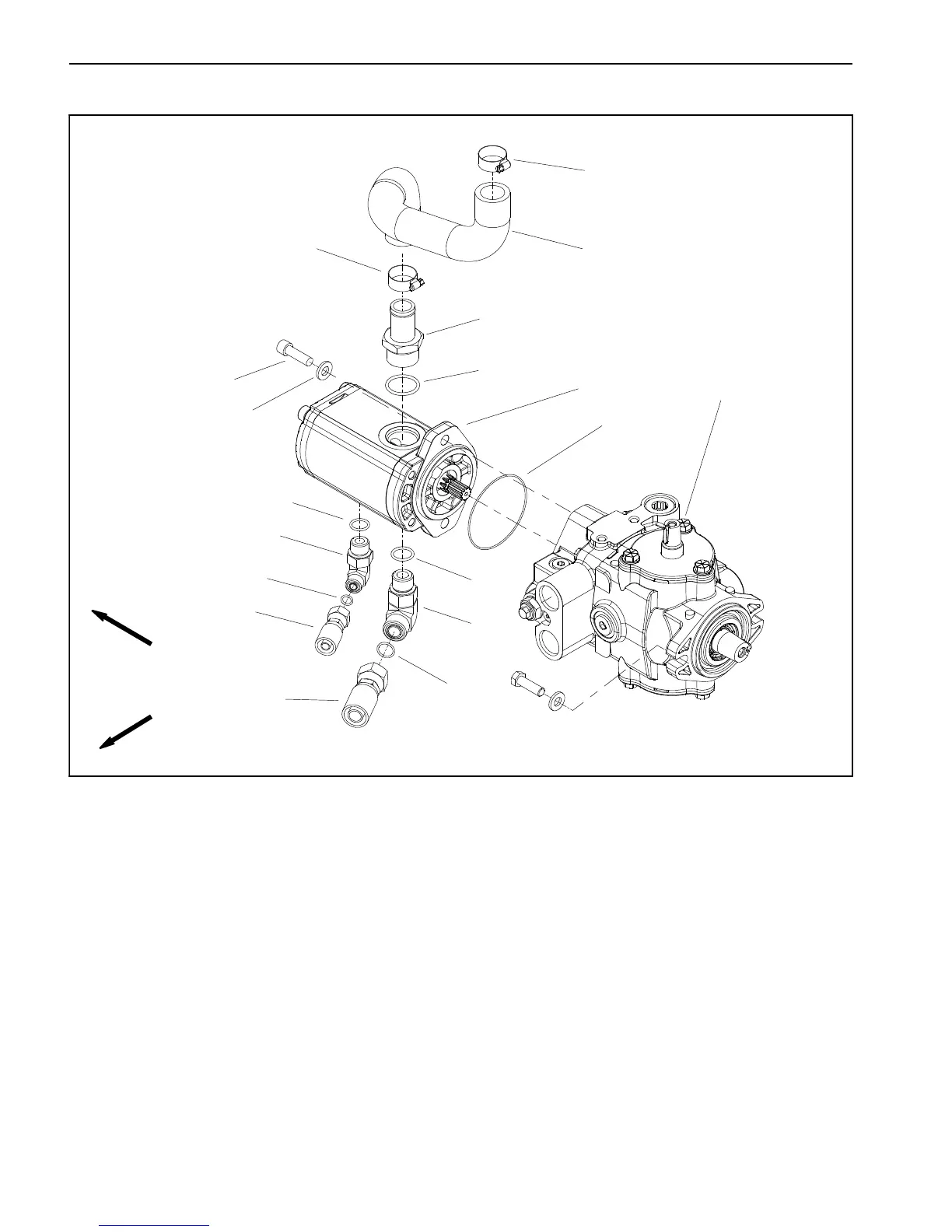

Gear Pump
1. Pump inlet hose
2. Gear pump
3. Hydraulic fitting
4. Hydraulic fitting
5. O--ring
6. O--ring
7. Hose clamp (2 used)
8. O--ring
9. O--ring
10. Hydraulic hose
11. O--ring
12. Piston pump
13. Socket head screw (2 used)
14. Flat washer (2 used)
15. Hydraulic hose
16. Hose connector
17. O--ring
Figure 33
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
4
7
