Toro 04470 Service Manual

Greensmaster 3250--DPage 3 -- 8Diesel Engine
Exhaust System

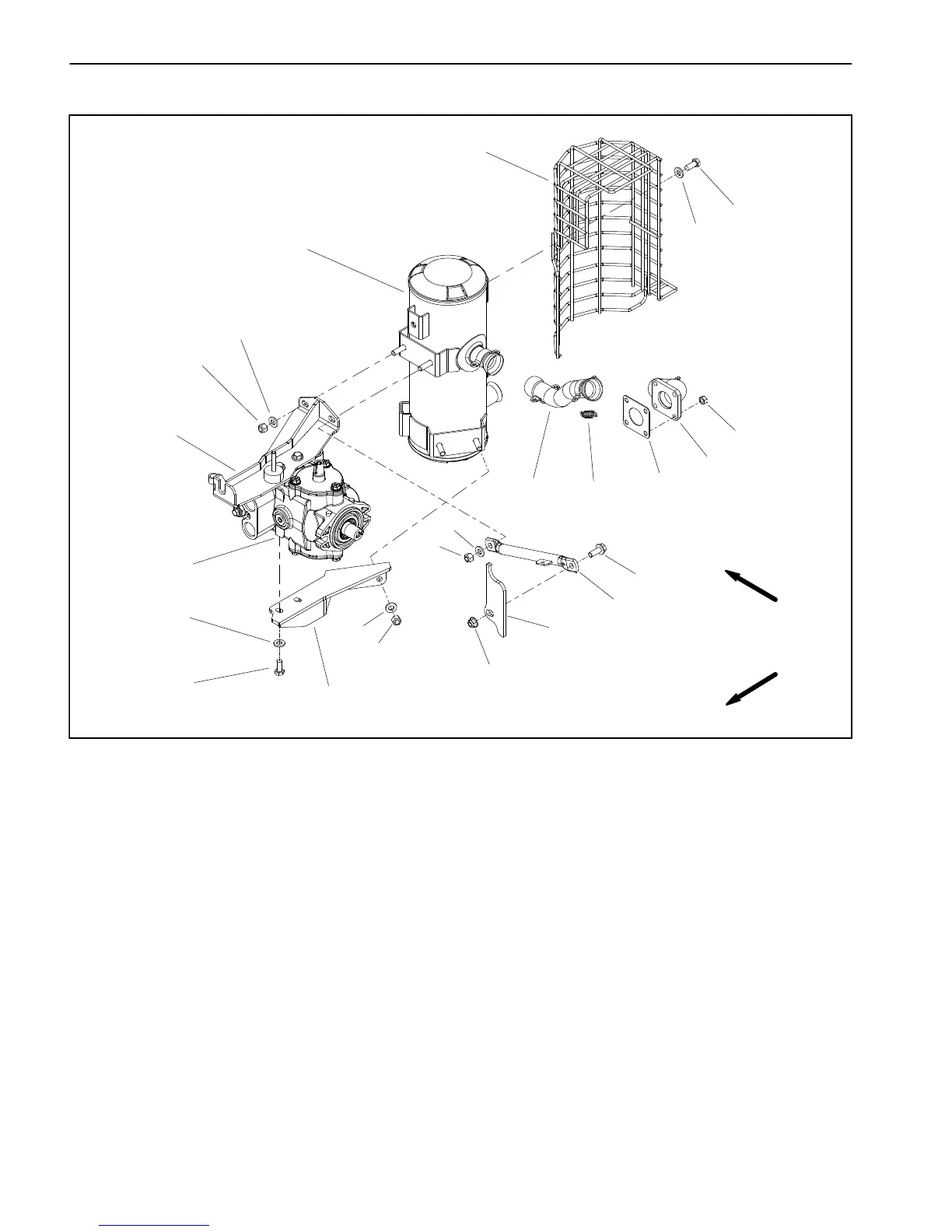

Figure 6
1. Muffler
2. Flat washer (10 used)
3. Lock nut (4 used)
4. Upper muffler mount
5. Piston pump
6. Cap screw (6 used)
7. Lower muffler mount
8. Flange nut
9. Engine mount
10. Exhaust support
11. Flange head screw
12. Exhaust pipe
13. Spring (4 used)
14. Exhaust gasket
15. Exhaust plate
16. Hex nut (4 used)
17. Muffler shield
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
4
2
2
2
3
6
2
3
14
15
16
17
