Toro 04470 Service Manual

Greensmaster 3250--DPage 6 -- 8Chassis

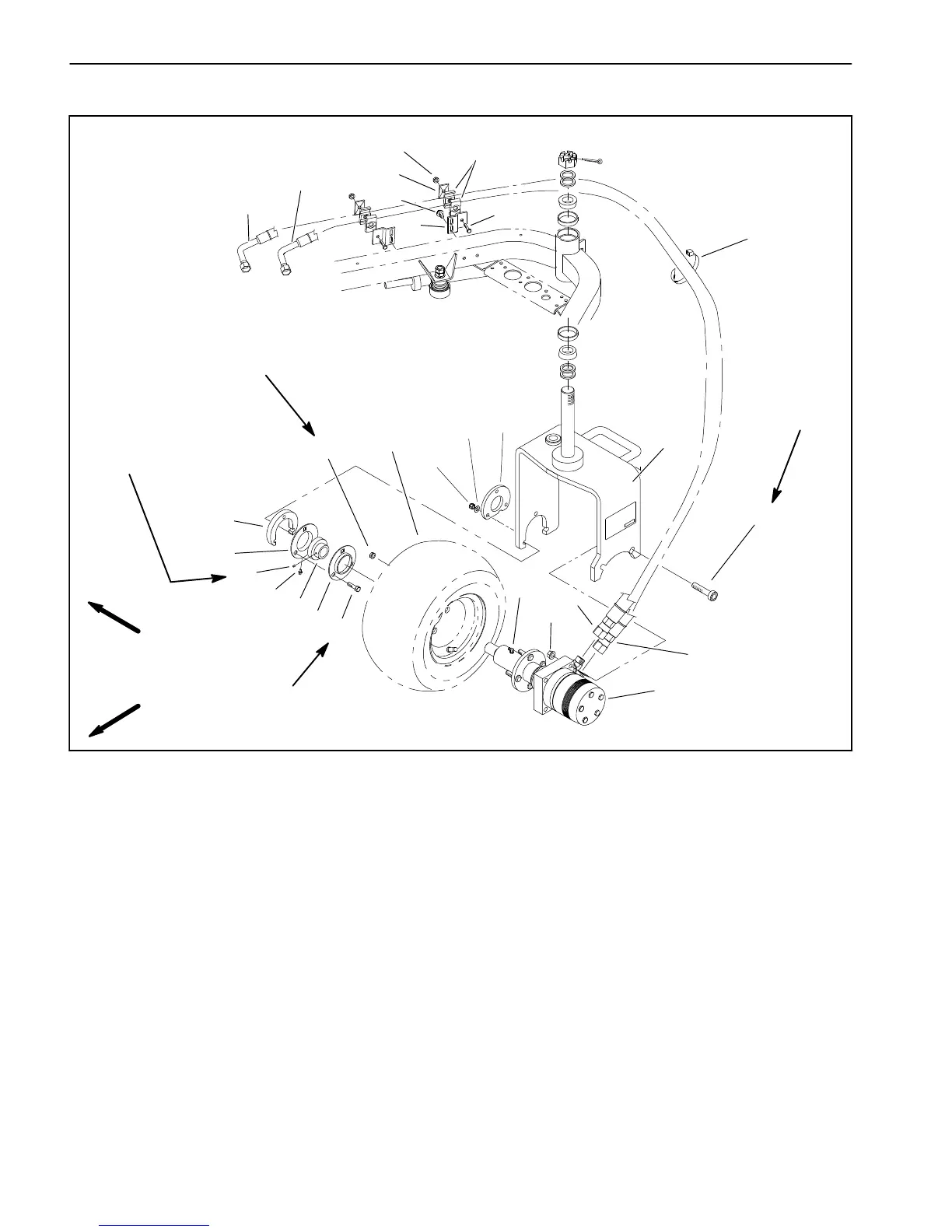

Rear Wheel (If Equipped with 3WD)
Figure 6
FRONT
RIGHT
1
2
3
4
5
7
8
9
10
11
17
18
19
20
21
12
13
14
15
16
4
3
6
23
24
25
22
70 to 90 ft--lb
(95 to122 N--m)
100 ft--lb
(135 N--m)
40 ft--lb
(55 N--m)
80 to 100 in--lb
(9 to 11 N--m)
26
1. Castor fork
2. Hub and motor assembly
3. Hydraulic hose
4. Hydraulic hose
5. Bearing
6. Relube flangette
7. Grease fitting
8. Standard flangette
9. Mount spacer
10. Cap screw (3 used)
11. Lock nut (3 used)
12. Socket head screw (2 used)
13. Lock nut (2 used)
14. Cable tie
15. Tube clamp (4 used)
16. Cover plate (2 used)
17. Cap screw (2 used)
18. Lock nut (2 used)
19. Clamp bracket (2 used)
20. Washer head screw (4 used)
21. Bearing adapter plate
22. Grease fitting
23. Lug nut (4 used)
24. Set screw (2 used)
25. Wheel assembly
26. Flat washer (3 used)
