Toro 04470 Service Manual

Greensmaster 3250--DHydraulic System Page 4 -- 60

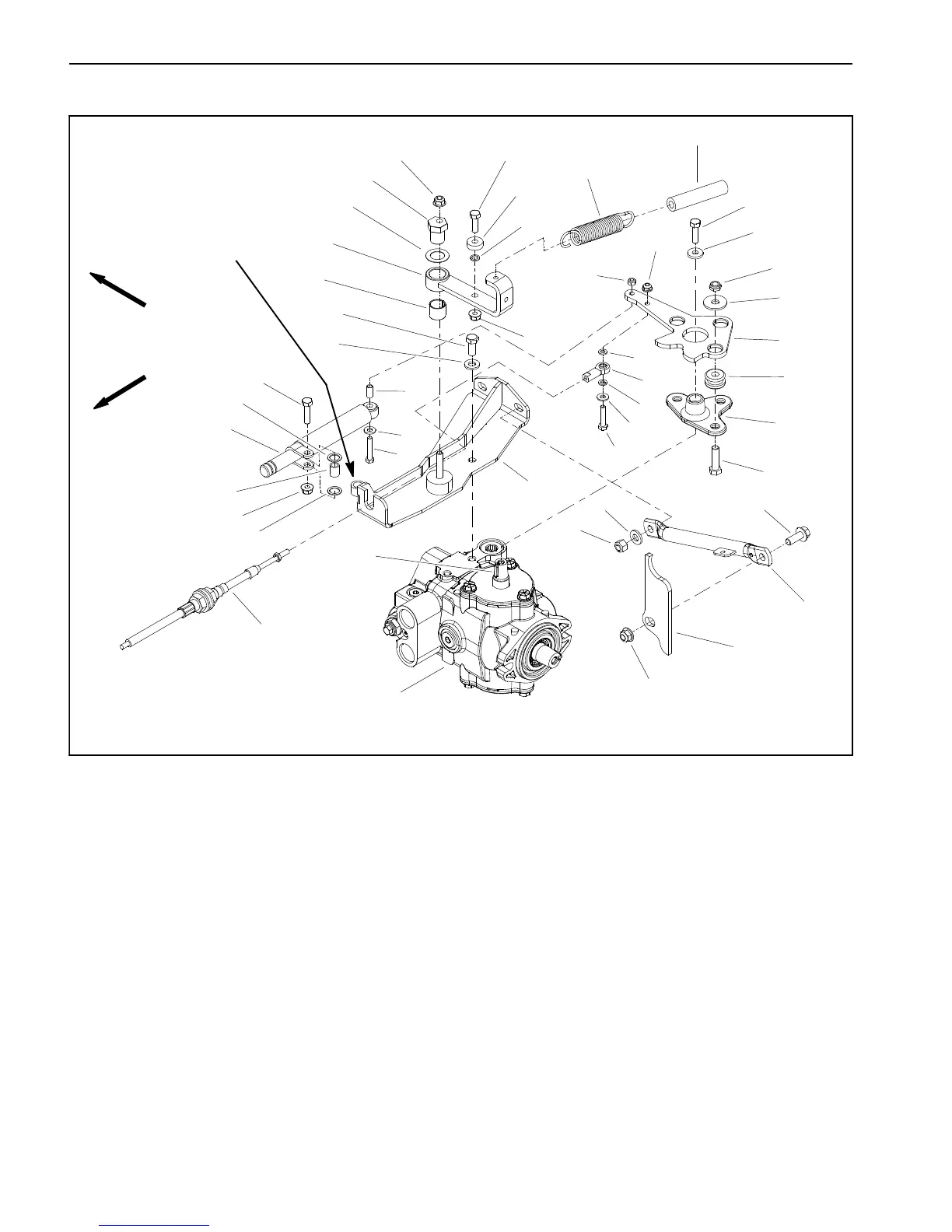

Piston (Traction) Pump Neutral Assembly
1. Lock nut
2. Nylon washer (2 used)
3. Cap screw
4. Damper lever
5. Pivot spacer
6. Pump lever
7. Flat washer
8. Cap screw
9. Upper muffler mount
10. Bushing
11. Neutral arm
12. Thrust washer
13. Traction stud
14. Flat washer (2 used)
15. Bearing spacer
16. Ball bearing
17. Extension spring
18. Cap screw
19. Washer (3 used)
20. Washer (2 used)
21. Pivot tube
22. Cap screw (2 used)
23. Cap screw
24. Cap screw
25. Flange nut (3 used)
26. Cable ball joint
27. Flange nut
28. Dampener hose
29. Flat washer (2 used)
30. Lock nut (3 used)
31. Traction control cable
32. Pivot plate
33. Mount (3 used)
34. Cap screw (3 used)
35. Exhaust support
36. Cap screw (3 used)
37. Flange nut
38. Engine mount
39. Lock nut (2 used) (muffler mount)
40. Washer (2 used) (muffler mount)
41. Piston pump assembly
42. Key
Figure 37
Antiseize
Lubricant
FRONT
RIGHT
2
33
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
3
32
34
36
35
37
29
14
2
25
25
31
38
39
40
41
42

Toro 04470 Specifications

General

Brand	Toro
Model	04470
Category	Lawn Mower
Language	English
