Greensmaster 3250--DPage 3 -- 12Diesel Engine

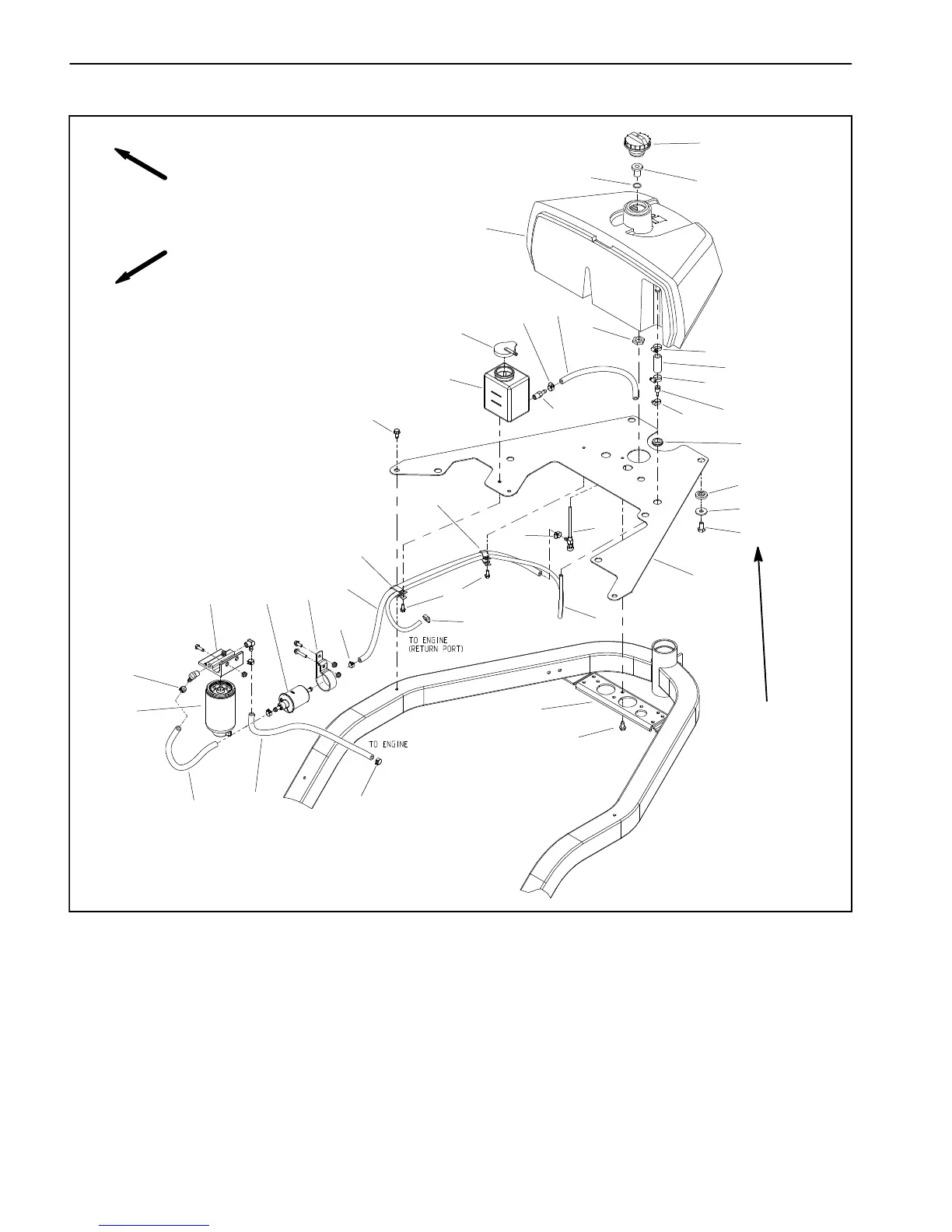

Fuel Tank
Figure 10
FRONT
RIGHT
30 to 60 in--lb
(3.4 to 6.8 N--m)
Antiseize
Lubricant
1. Fuel cap
2. Fuel tank
3. Flange bushing (3 used)
4. Flat washer (3 used)
5. Overflow tank (coolant)
6. Washer head screw (4 used)
7. Flange head screw (3 used)
8. Fuel hose
9. Straight fitting
10. Hose clamp (2 used)
11. Fuel fitting
12. Cap
13. Mounting plate
14. Coolant hose
15. Fitting
16. Cap screw (3 used)
17. Nut
18. Fuel hose
19. Fuel pump bracket
20. Hose clamp (2 used)
21. Shut--off valve
22. Hose clamp (5 used)
23. Tank vent hose
24. Fuel pump
25. Grommet
26. Worm clamp (4 used)
27. Fuel filter/separator head
28. Fuel filter/separator
29. Fuel hose
30. Fuel hose
31. Support bracket
32. O--ring
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
10
26
6
26
26
20
26
22
22
27
28
29
30
31
32
