Greensmaster 3250--DHydraulic System Page 4 -- 72
Rear Wheel Motor (If Equipped with 3WD)
1. Castor fork
2. Hub and motor assembly
3. Hydraulic hose
4. Hydraulic hose
5. Bearing
6. Relube flangette
7. Grease fitting
8. Standard flangette
9. Mount spacer
10. Cap screw (3 used)
11. Lock nut (3 used)
12. Socket head screw (2 used)
13. Lock nut (2 used)
14. Cable tie
15. Tube clamp (4 used)
16. Cover plate (2 used)
17. Cap screw (2 used)
18. Lock nut (2 used)
19. Clamp bracket (2 used)
20. Washer head screw (4 used)
21. Bearing adapter plate
22. Grease fitting
23. Lug nut (4 used)
24. Set screw (2 used)
25. Wheel assembly
26. Flat washer (3 used)

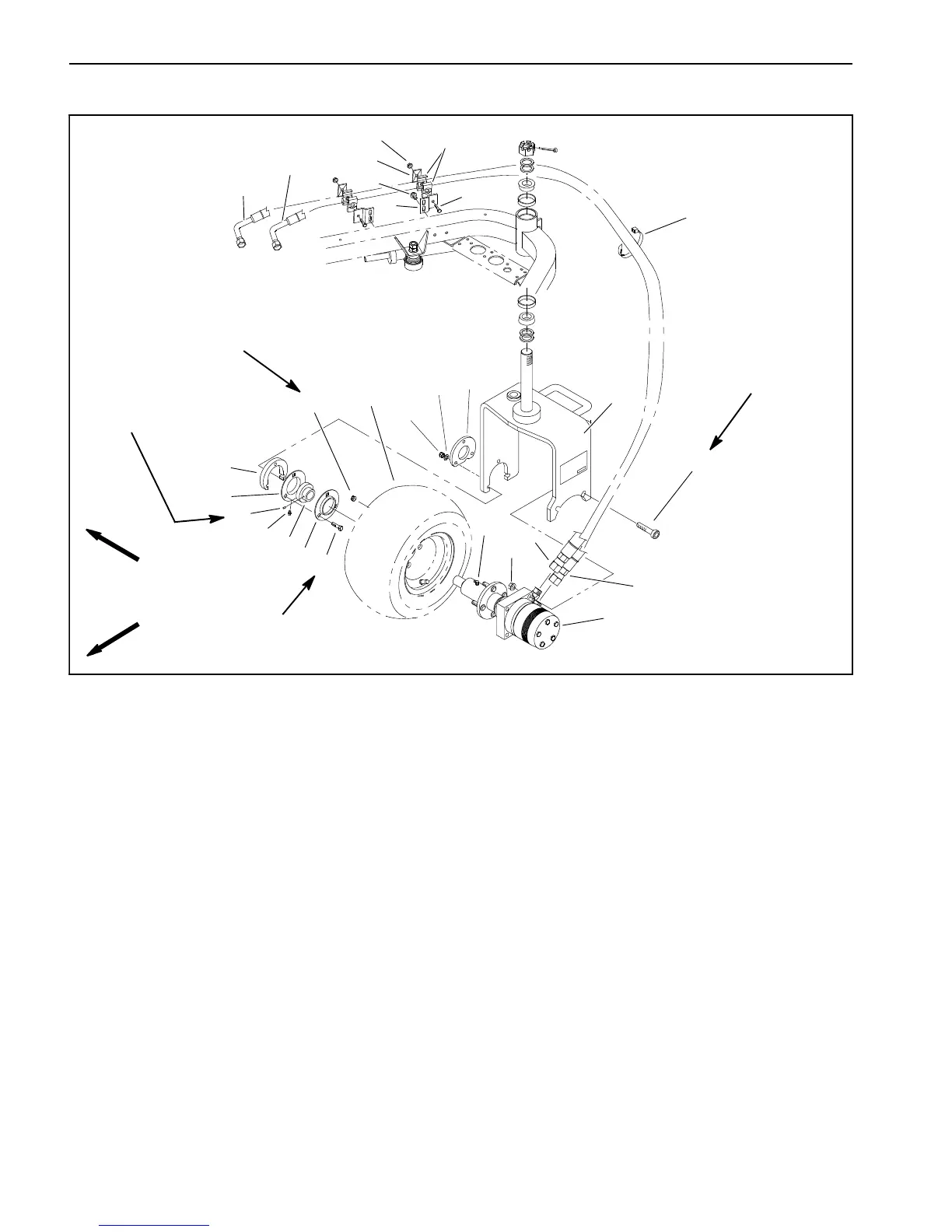

Figure 48
FRONT
RIGHT
1
2
3
4
5
7
8
9
10
11
17
18
19
20
21
12
13
14
15
16
4
3
6
23
24
25
22
70 to 90 ft--lb
(95 to122 N--m)
100 ft--lb
(135 N--m)
40 ft--lb
(55 N--m)
80 to 100 in--lb
(9 to 11 N--m)
26
NOTE: For service of the hub and motor assembly
(item 2) on machines equipped with 3WD, see Rear
Wheel(IfEquippedwith3WD)andRearWheelHuband
Motor Assembly (If Equipped with 3 WD) in the Service
and Repairs section of Chapter 6 -- Chassis.
