Greensmaster 3250--DHydraulic System Page 4 -- 22

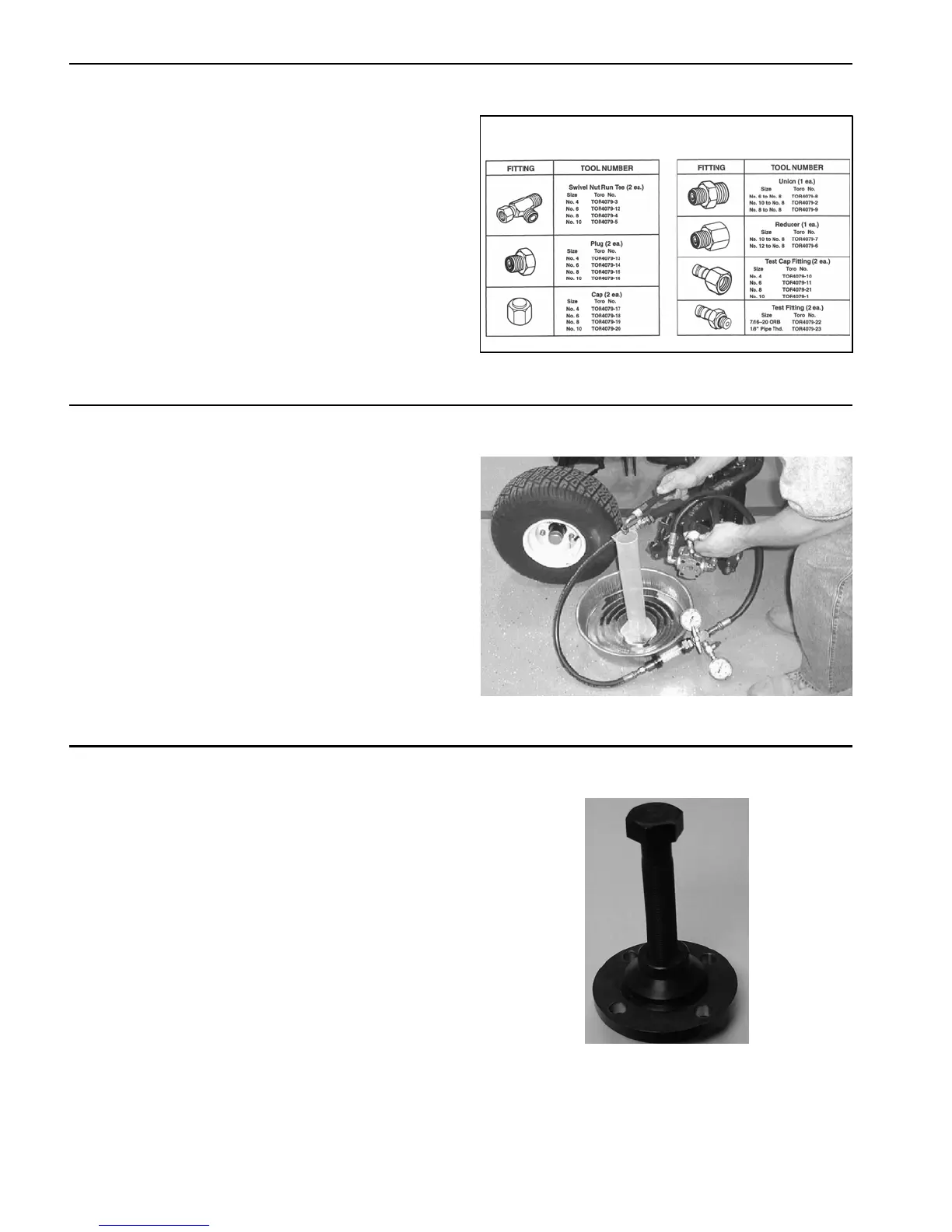

Hydraulic Test Fitting Kit
This kit includes a variety of O--ring face seal fittings to
enable you to connect test gauges into the system.
The kit includes: tee’s, unions, reducers, plugs, caps
and male test fittings.
Toro Part Number: TOR4079
Figure 15
TORO TEST FITTING KIT (NO. TOR4079)
Measuring Container
Use this container for doing hydraulic motor efficiency
testing(motorswith casedrainlines only).Measureeffi-
ciency of a hydraulic motor by restricting the outlet flow
from the motor and measuring leakage from the case
drainlinewhilethemotoris pressurizedbythehydraulic
system.
Toro Part Number: TOR4077
Figure 16
Wheel Hub Puller
The wheel hub puller allows safe removal of the wheel
hub from the shaft of wheel motors.
Toro Part Number: TOR4097
Figure 17
