Greensmaster 3250--D Hydraulic SystemPage 4 -- 2 1
High Flow Hydraulic Filter Kit
The high flow hydraulic filter kit is designed with large
flow (40 GPM/150 LPM) and high pressure (5000
PSI/345 bar) capabilities. This kit provides for bi--direc-
tional filtration which prevents filtered debris from being
allowedback intothecircuit regardlessofflowdirection.
If a component failure occurs in the closed loop traction
circuit, contamination from the failed part will remain in
the circuit until removed. When connecting hydraulic
test gauges in order to test traction circuit components
orafterreplacingafailedt ractioncircuitcomponent(e.g.
piston(traction)pumporwheelmotor), the highflowhy-
draulic filter can be installed in the traction circuit. The
filterwillensurethatcontaminatesareremovedfromthe
closed loop and thus, do not cause additional c ompo-
nent damage.
Toro Part Number: TOR6011
NOTE: This kit does n ot include hydraulic hoses (see
Hydraulic Hose Kit TOR6007 above).
NOTE: Replacement filter element is Toro part number
TOR6012. Filter element cannister tightening torque is
2 5 f t -- l b ( 3 4 N -- m ) .

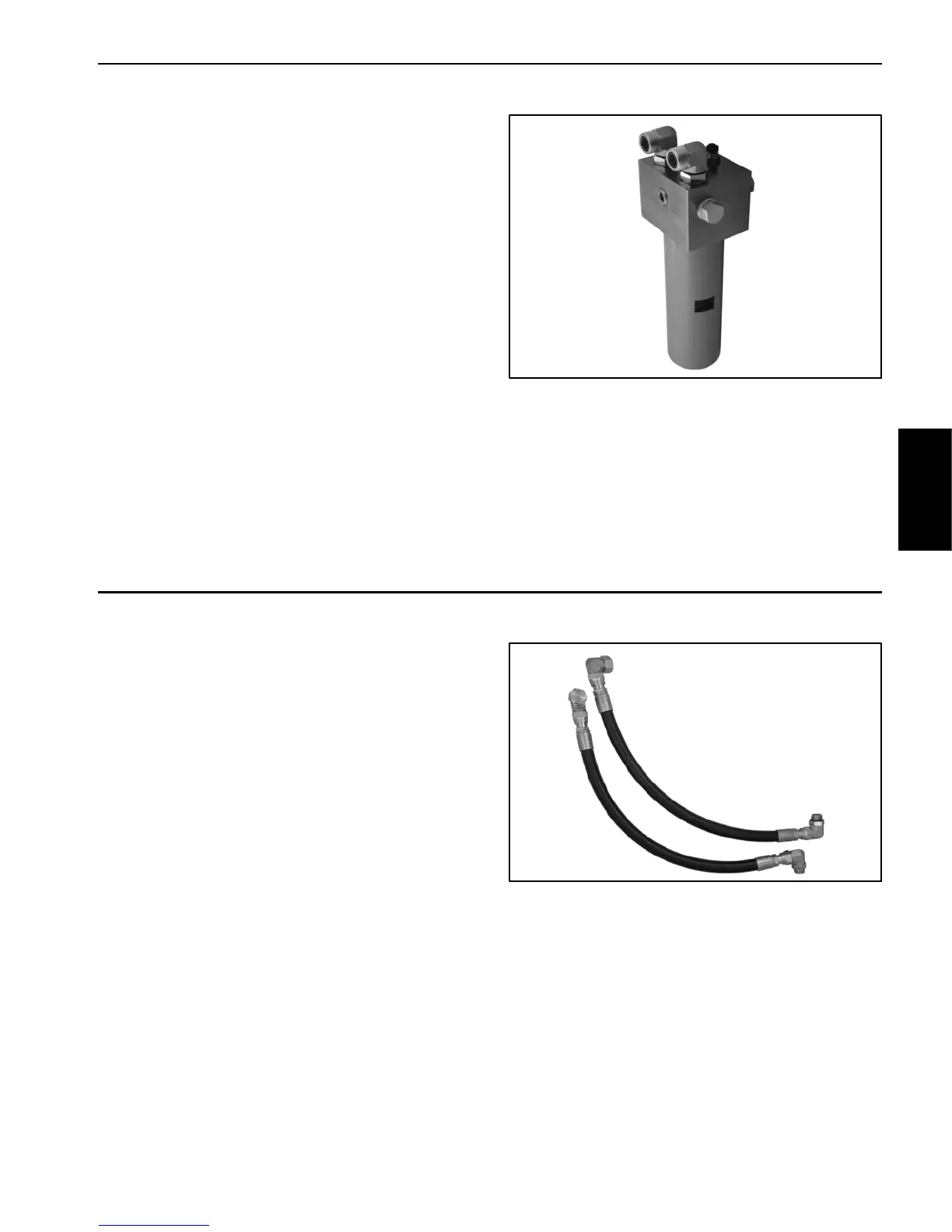

Figure 13
Hydraulic Hose Kit
This kit includes hydraulic fittings and hoses needed to
connect40GPMhydraulictester(AT40002)orhighflow
hydraulic filter kit (TOR6011) to machine hydraulictrac-
tion system components.
Toro Part Number: TOR6007
Figure 14
