Toro 04470 Service Manual

Greensmaster 3250--DPage 6 -- 16Chassis

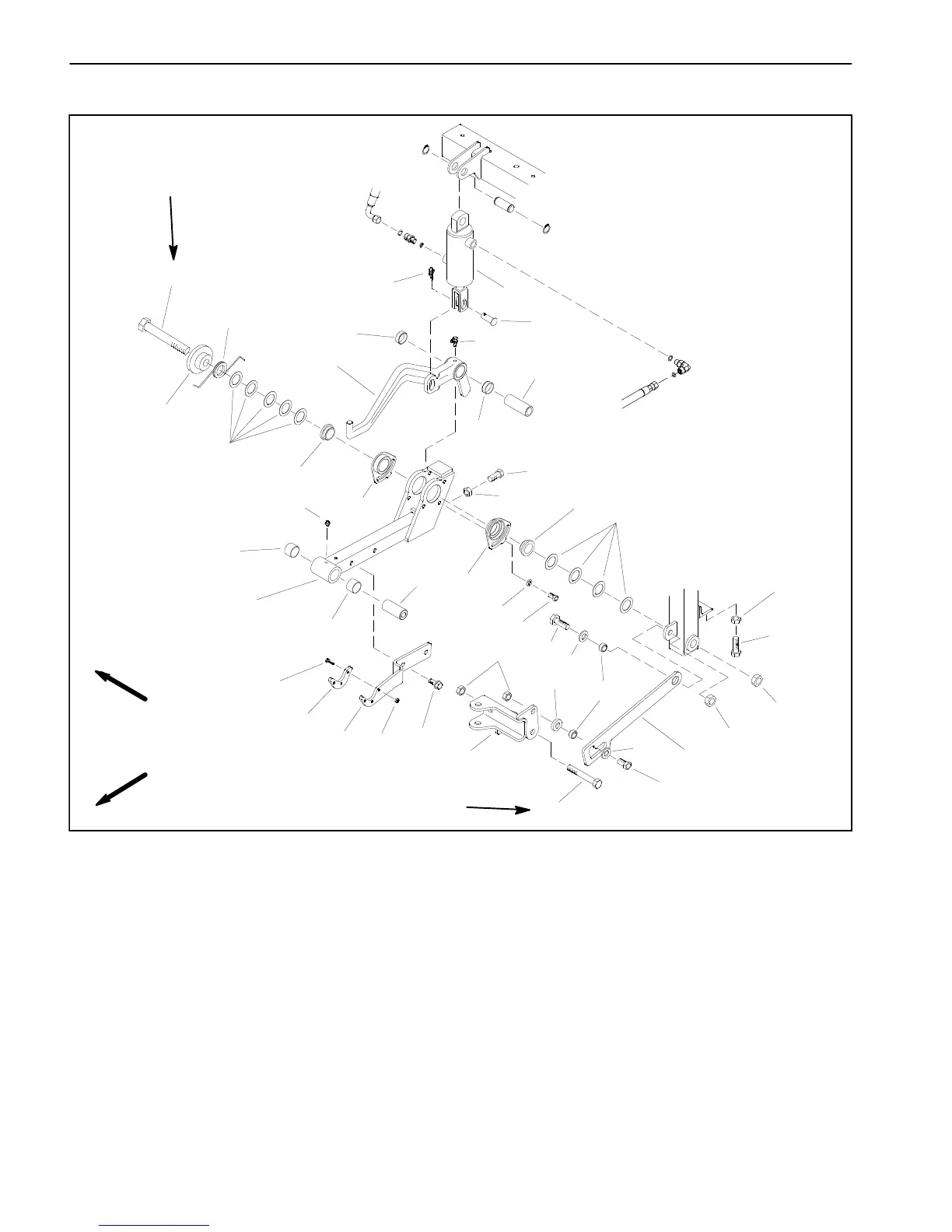

Center Lift Arm
1. Center lift arm
2. Bushing
3. Torsion spring
4. Cotter pin
5. Lift cylinder
6. Clevis pin
7. Grease fitting
8. Pivot tube
9. Cap screw
10. Jam nut
11. Flange bushing
12. Thrust washer
13. Cap screw
14. Lock nut
15. Lock nut
16. Link bracket
17. Spacer tube
18. Flat washer
19. Spacer
20. Cap screw (2 used)
21. Flat washer
22. Eccentric bushing
23. Pull frame spacer
24. Bushing
25. Lift frame
26. Phillips screw (3 used)
27. Wear pad
28. Transport plate
29. Lock nut (3 used)
30. Cap screw (2 used)
31. Clevis
32. Cap screw
33. Spring guide
34. Grease fitting
Figure 13
1
2
4
5
10
20
21
22
23
26
27
28
29
24
25
11
12
14
15
16
17
18
19
6
7
8
9
2
10
11
12
15
18
22
24
30
31
32
34
33
13
67 to 83 ft--lb
(91 to 112 N--m)
100 to 150 ft--lb
(136 to 203 N--m)
3
FRONT
RIGHT
9
9
9
