Toro 04470 Service Manual

Greensmaster 3250--D Page 6 -- 15 Chassis
Disassembly
1. Park machine on a level surface. Make sure engine
is off and parking brake is engaged.
2. Remove cutting unit from front lift arm.
3. Disassemble front lift arm as needed using Figures
11 and 12 as guides.
Assembly
1. Assemble front lift arm using Figures 11 and 12 as
guides.
A. If clevis (item 16 in Fig. 11) was removed from
front lift frame, torque cap screw from 67 to 83 ft--lb
(91 to 112 N--m).
B. If pull frame (item1inFig.12) was removed from
clevis on lift frame, torque cap screw from 67 to 83
ft--lb (91 to 112 N--m).
2. Attach cutting unit to lift arm.
3. Check thatwhenraisedtothetransport position,the
cuttingunitsaresecuredbythetransportplate.Ifneces-
sary, loosen two (2) cap screws (item 28 in Fig. 11) and
reposition transport plate.

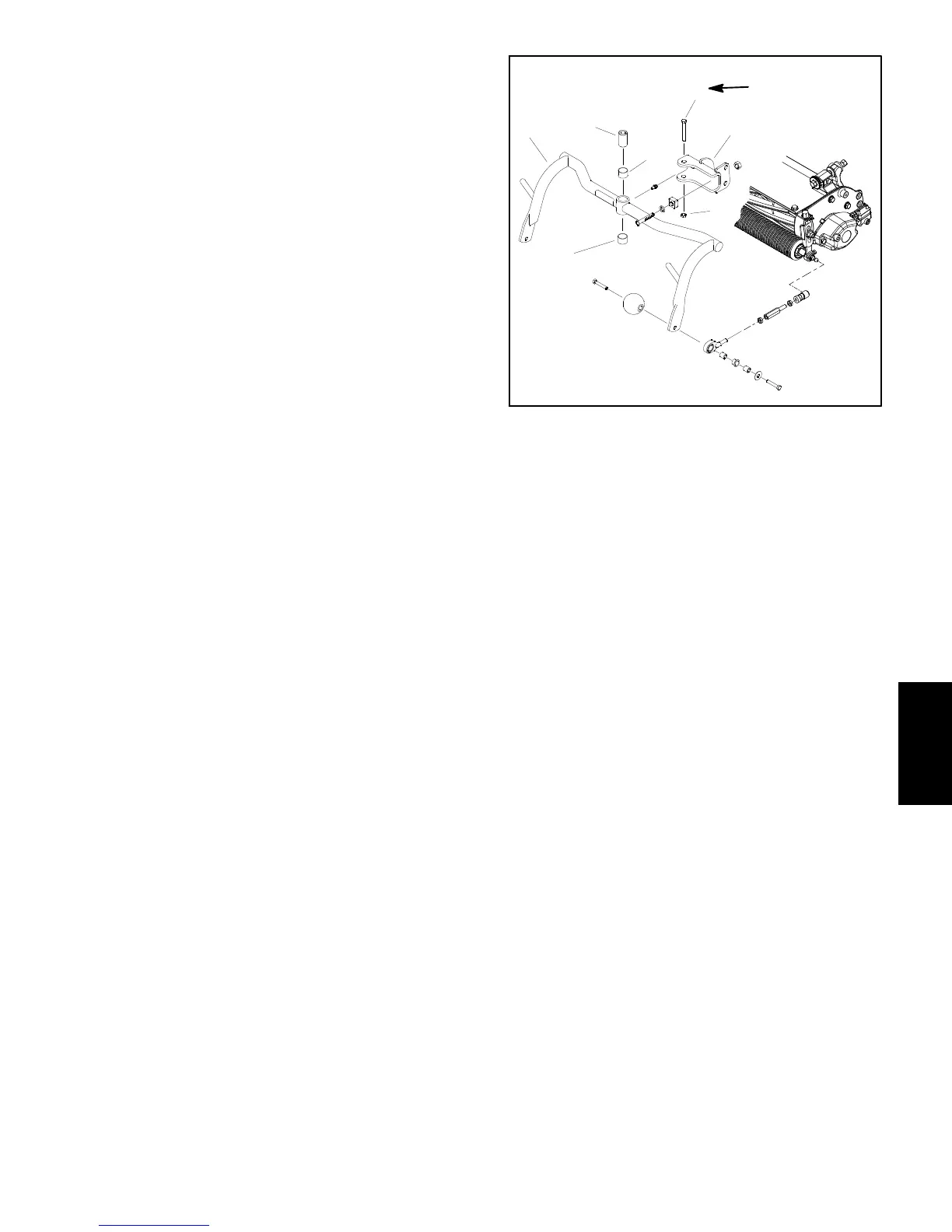

1. Pull frame
2. Pivot spacer
3. Bushing
4. Clevis
5. Cap screw
6. Lock nut
Figure 12
1
2
3
5
6
4
3
67 to 83 ft--lb
(91 to 112 N--m)
