Greensmaster 3250--DPage 3 -- 10Diesel Engine
Radiator

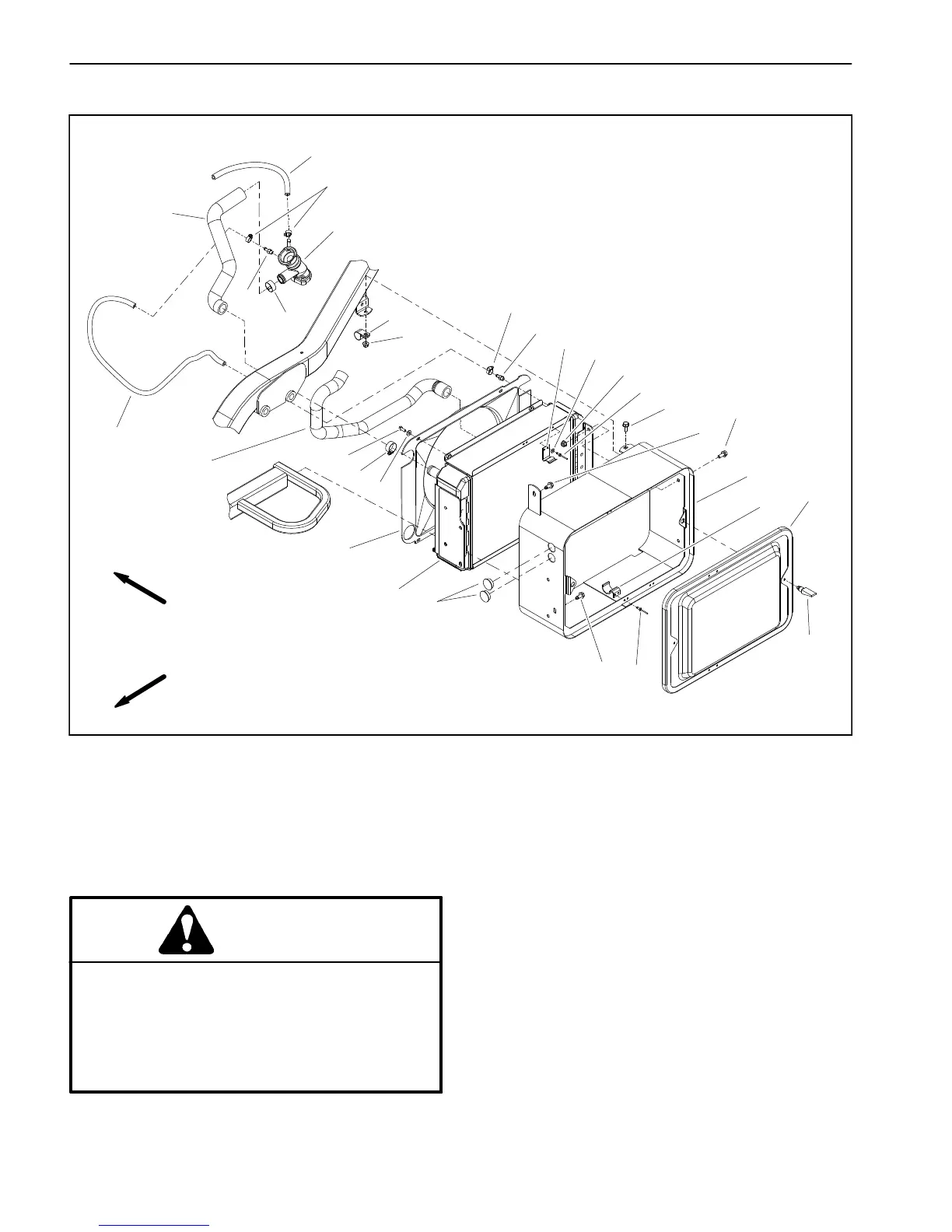

Figure 8
1. Hose clamp (4 used)
2. Lower radiator hose
3. Hose connector (2 used)
4. Radiator
5. Upper cooler bracket
6. Flat washer (4 used)
7. Washer head screw (2 used)
8. Radiator support
9. Flange nut (5 used)
10. Screen
11. Swell latch (2 used)
12. Flat washer (2 used)
13. Lower cooler bracket (2 used)
14. Plug (2 used)
15. Thermostat housing
16. Hose (to coolant reservoir)
17. Upper radiator hose
18. Flange head screw (5 used)
19. Fan shroud
20. Worm clamp (3 used)
21. Pop rivet (6 used)
22. Cap screw (4 used)
23. R--clamp
24. Hose
2
3
6
8
9
10
11
13
1
5
7
14
15
16
17
18
19
20
4
21
7
18
21
12
22
24
20
3
9
23
1
FRONT
RIGHT
CAUTION
DO NOT open radiator cap or drain coolant if the
engineorradiatorishot.Pressurizedhotcoolant
can escape and cause burns.
Ethylene--gycol antifreeze is poisonous. Dis-
poseofitproperlyorstore itina properlylabeled
container away from children and pets.
Radiator Removal (Fig. 8)
1. Park machine on a level surface, lower the cutting
units, stop the engine, engage parking brake and re-
move the key from the ignition switch.
2. Place a suitable container under the front end of the
radiator.Open drainpetcockonthe backoftheradiator.
Drain radiator completely and then close petcock.
3. Remove screen (item 10) from radiator support.
