Toro 04470 Service Manual

Greensmaster 3250--D
DPA Cutting Units
Page 7 -- 14

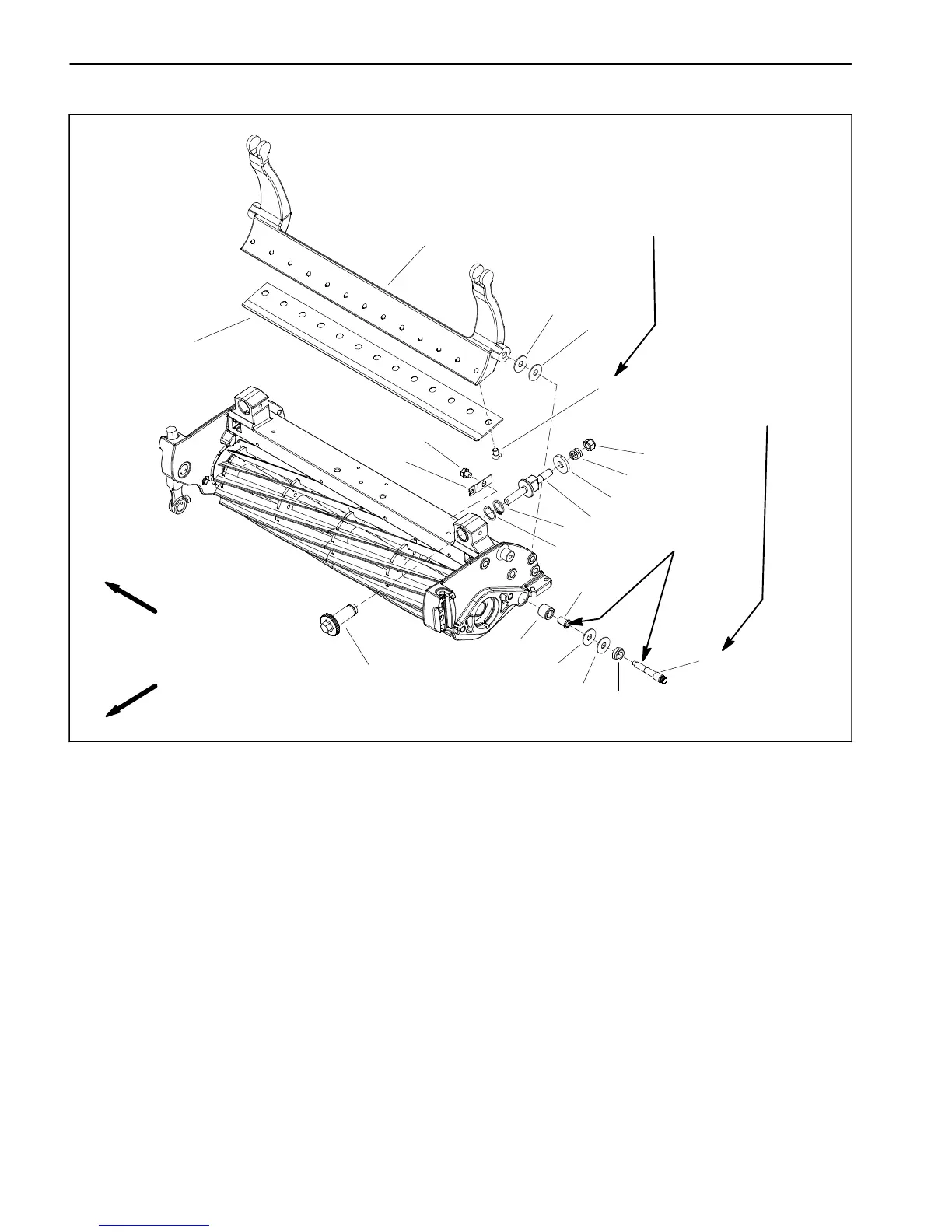

Bedbar Assembly
1. Bedbar
2. Bedknife
3. Screw (13 used)
4. Bedbar adjuster screw (2 used)
5. Bedbar adjuster shaft (2 used)
6. Cap screw (2 used)
7. Detent (2 used)
8. Wave washer (2 used)
9. Retaining ring (2 used)
10. Lock nut (2 used)
11. Washer (2 used)
12. Compression spring (2 used)
13. Lock nut (2 used)
14. Rubber bushing (2 used)
15. Nylon bushing (2 used)
16. Plastic washer (4 used)
17. Metal washer (4 used)
18. Bedbar pivot bolt (2 used)
Figure 14
200 to 250 in--lb
(23to28N--m)
FRONT
RIGHT
Antiseize
Lubricant
1
17
16
18
10
14
15
16
17
7
4
13
6
11
12
8
9
2
3
5
190 to 240 in--lb
(22to27N--m)
Bedbar Removal (Fig. 14)
1. Positionmachineonacleanandlevelsurface,lower
cuttingunits,stopengine,engageparkingbrakeandre-
move key from the ignition switch.
2. Remove the cutting unitfromthemachine and place
cutting unit on a flat work area.
3. Tip the cutting unit to expose the bedknife. Support
the rear of the cutting unit (see Supporting Cutting Unit
when Servicing in the General Information section of
this chapter).
4. Loosen the lock nuts (item 13) on the end of each
bedbar adjuster assembly until washer (item 11) is
loose.
5. Loosen the lock nuts (item 10) on each bedbar pivot
bolt (item 18).
6. Remove two(2)bedbarpivotbolts (item18),four(4)
metal washers (item 17) and four (4) plastic washers
(item 16) from the cutting unit side plates.
