Toro 04470 Service Manual

Greensmaster 3250--DHydraulic System Page 4 -- 62

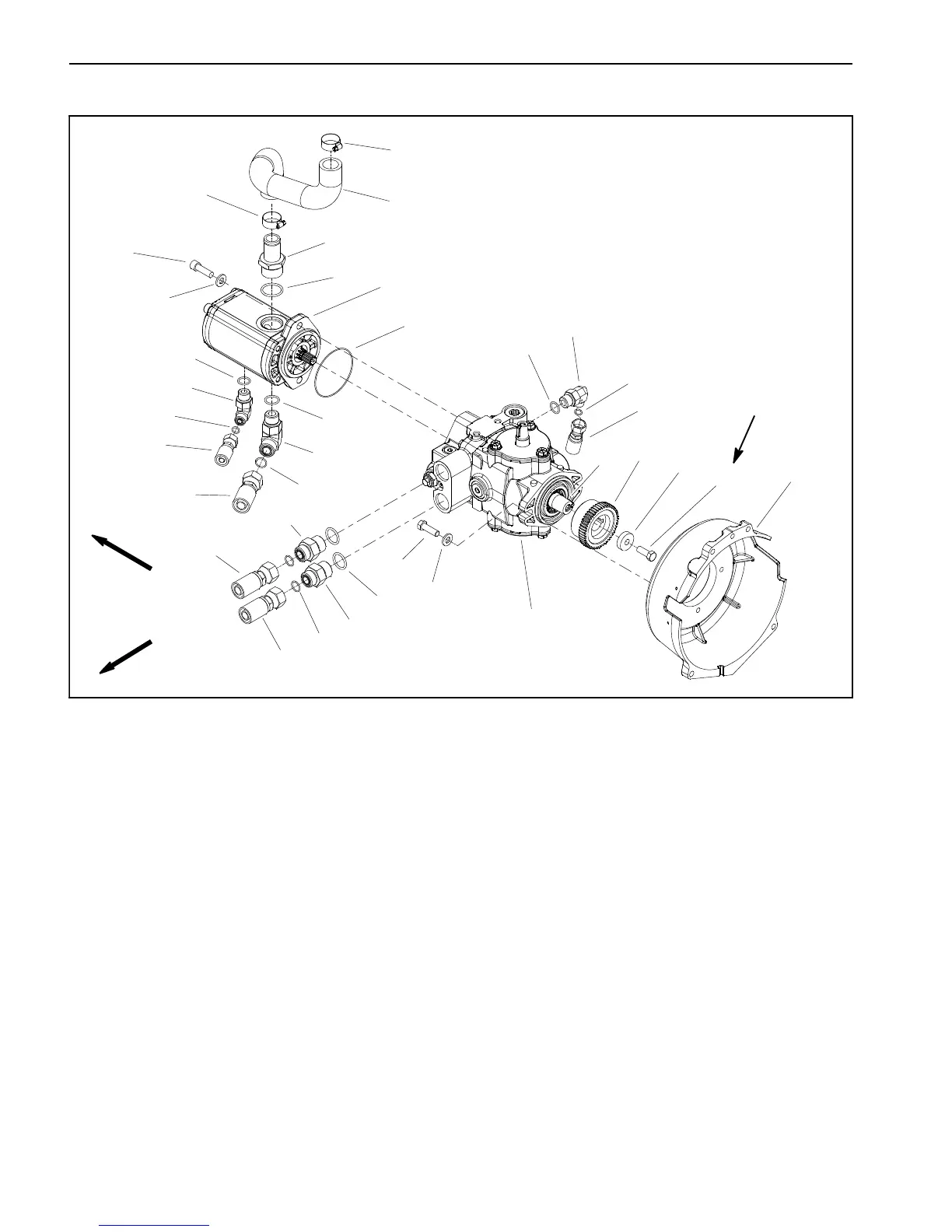

Piston (Traction) Pump
1. Hose clamp (2 used)
2. O--ring
3. 90
o
hydraulic fitting
4. Gear pump
5. Piston pump
6. O--ring
7. Flat washer (4 used)
8. Coupler
9. Key
10. Pump inlet hose
11. Cap screw
12. Cap screw (2 used)
13. Hex socket head screw (2 used)
14. Engine bellhousing
15. Hose assembly
16. O--ring
17. Hose connector
18. 90
o
hydraulic fitting (2 used)
19. Spacer
20. O--ring
21. O--ring
22. Hose assembly
23. O--ring
24. Hose assembly
25. Hose assembly
26. Hose assembly
27. Hydraulic adapter (2 used)
28. O--ring
Figure 40
27 to 33 ft--lb
(37to44N--m)
Loctite #242
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
FRONT
RIGHT
7
1
18
16
21
23
26
27
28
27
NOTE: The complete piston (traction) and gear pump
assembly can be removed from the machine with the
neutral assembly attached to the pistonpump. See Pis-
ton(Traction) Pump NeutralAssemblyinthissection for
information regarding servicing the neutral assembly.
