Greensmaster 3250--D Hydraulic SystemPage 4 -- 5
Towing Traction Unit
In case of emergency, the Greensmaster 3250--D can
be towed for a short distance. However, Toro does not
recommend this as a standard practice.
IMPORTANT: Do not tow the machine faster than 2
to 3 mph because drive system may be damaged. If
machine must be moved a considerable distance,
transport it on a truck or trailer.
1. Locate by--pass valve on the rear s ide of the piston
pump.Rotatevalve90
o
sotheslotinthevalveisvertical.
2. Beforestartingengine,closeb y--passvalvebyrotat-
ing it back 90
o
so the slot in the valve is horizontal. Do
not start engine when the valve is open.

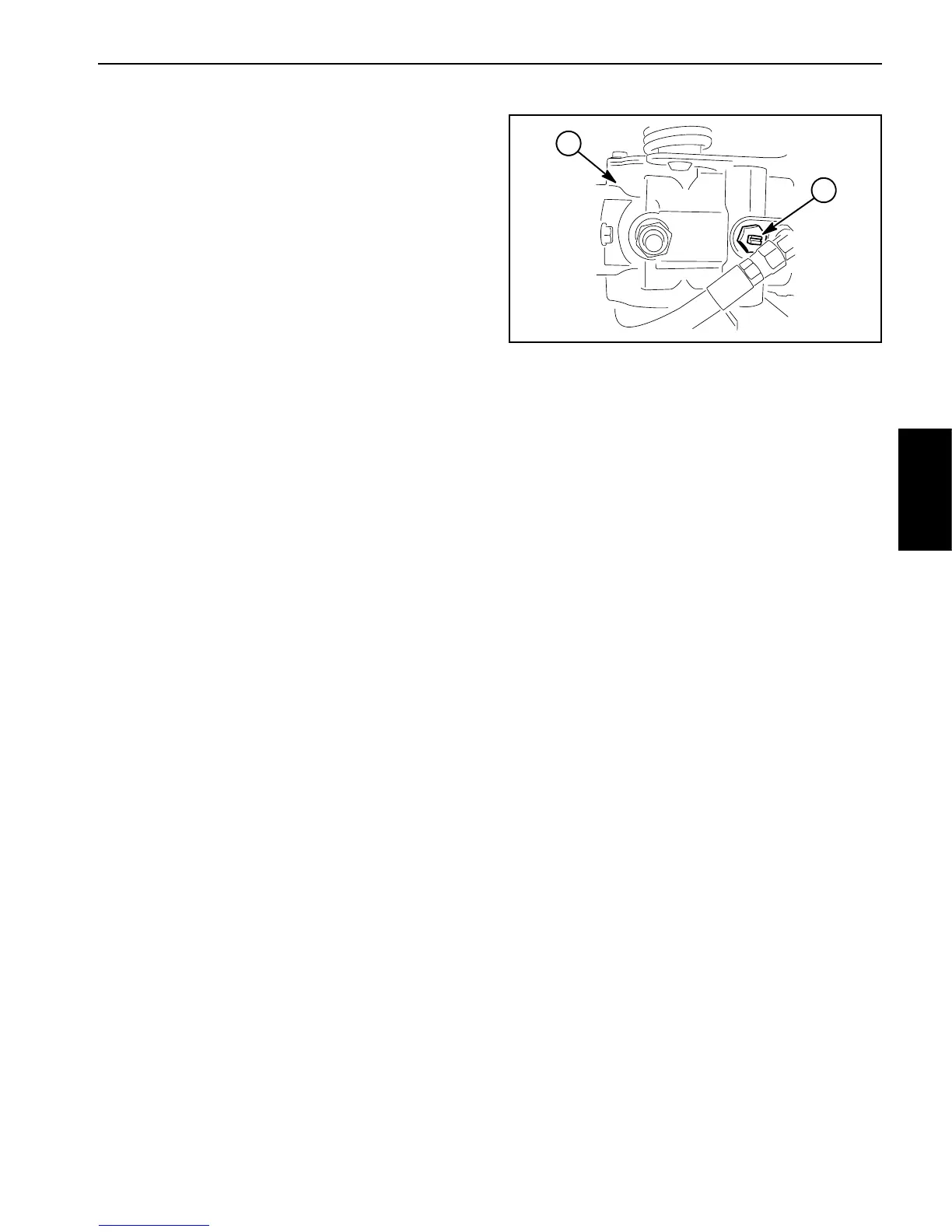

1. Piston pump 2. By--pass valve
Figure 2
2
1
Hydraulic
System
