Greensmaster 3250--D
DPA Cutting Units
Page 7 -- 5

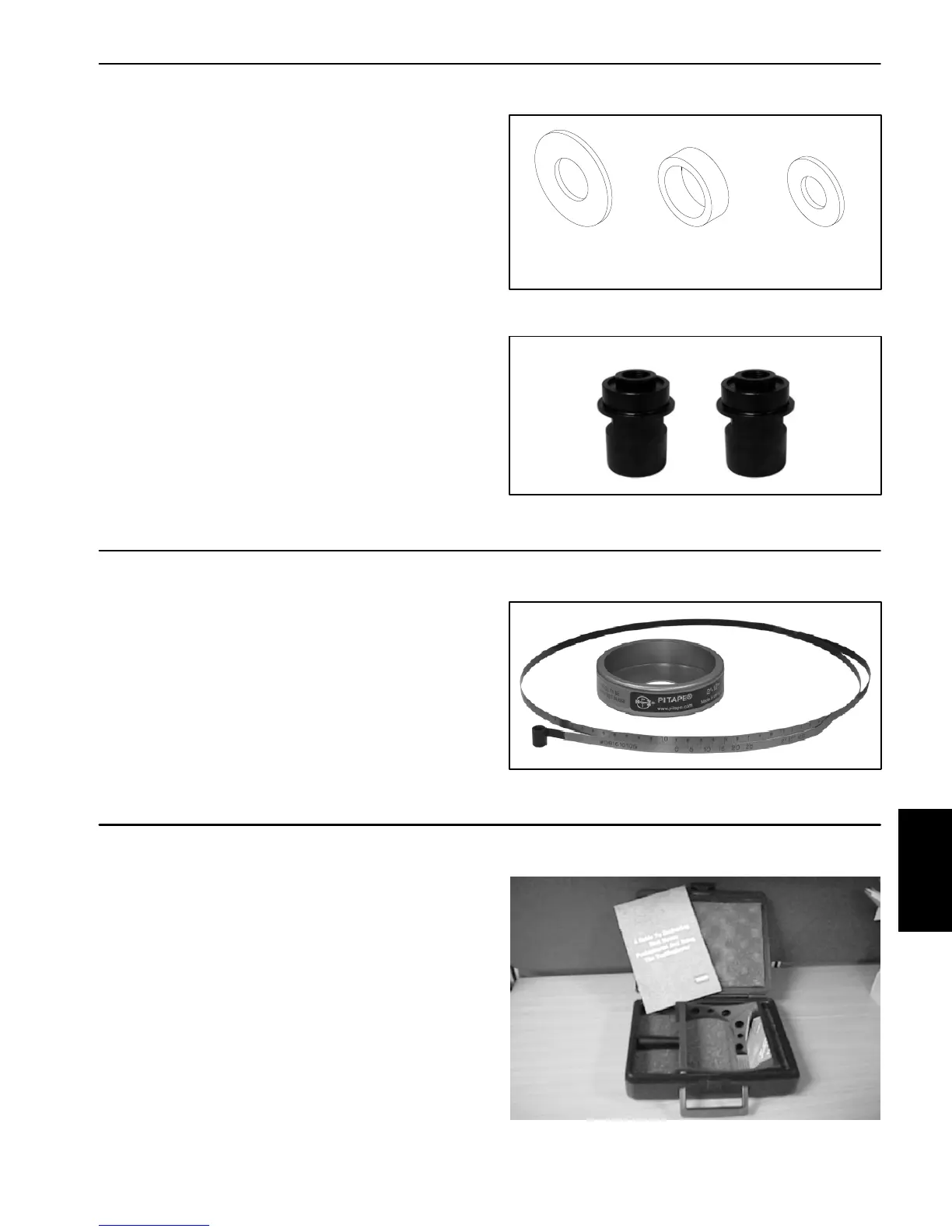

Roller Bearing Installation Tools
Washers and spacer used to install bearings and seals
into front and rear rollers (Fig. 6).
Seal installation washer: 107--8133
Seal installation spacer: 107--3505
Bearing installation washer: 104--6126
As an alternative to using washers and spacers listed
above,aspecialtoolsetisavailablethatcanbeusedfor
roller bearing and seal installation (Fig. 7).
Toro Part Number: TOR4105
Figure 6
Seal Installation
Washer
Seal Installation
Bearing Installation
WasherSpacer
(yellow)(black)
Figure 7
Diameter/Circumference Measuring Tape
Spring steel measuring tape for accurately measuring
the circumference and outside diameter of cutting reel
and other spherical components. Tape calibration is in
fixed inch readings (no adjustments).
Toro Part Number: TOR6023
Figure 8
Turf Evaluator Tool
Many turf discrepancies are subtle and require closer
examination. In these instances, the Turf Evaluator
grass viewing tool is helpful. It can assist turf managers
and service technicians in determining causes for poor
reelmowerperformanceandincomparing theeffective
height--of--cut of one mowed surface to another. This
tool should be used with the Toro Guide to Evaluation
Reel Mower Performance and Using the TurfEvaluator
(Toro part no. 97931SL).
Toro Model Number: 04399
Figure 9
DPA Cutting
Units
