Greensmaster 3250--D GroomerPage 8 -- 15
Thegroomerdrivesideplateassemblyincorporatesthe
idler system for tensioning the groomer drive belt. The
idler system uses a spring to maintain proper belt ten-
sion.
Removal
1. Remove groomer belt cover, drive belt and drive
pulleyfromgroomerdrivesideofmower(seeGrooming
Reel Removal in this section).
2. Using Figures 15 and 16 as guides, remove idler
bracket, idler pulley and/or idler bearings as needed.
Installation
1. Assemble components using Figures 15 and 16 as
guides.
NOTE: When properly installed, the idler pulley should
move freely from side to side on the idler bracket pin.
2. Install drive pulley, drive belt and belt cover to right
side of mower (see Grooming Reel Installation in this
section).
3. Check and adjust grooming reel height and mower
height--of--cut settings.

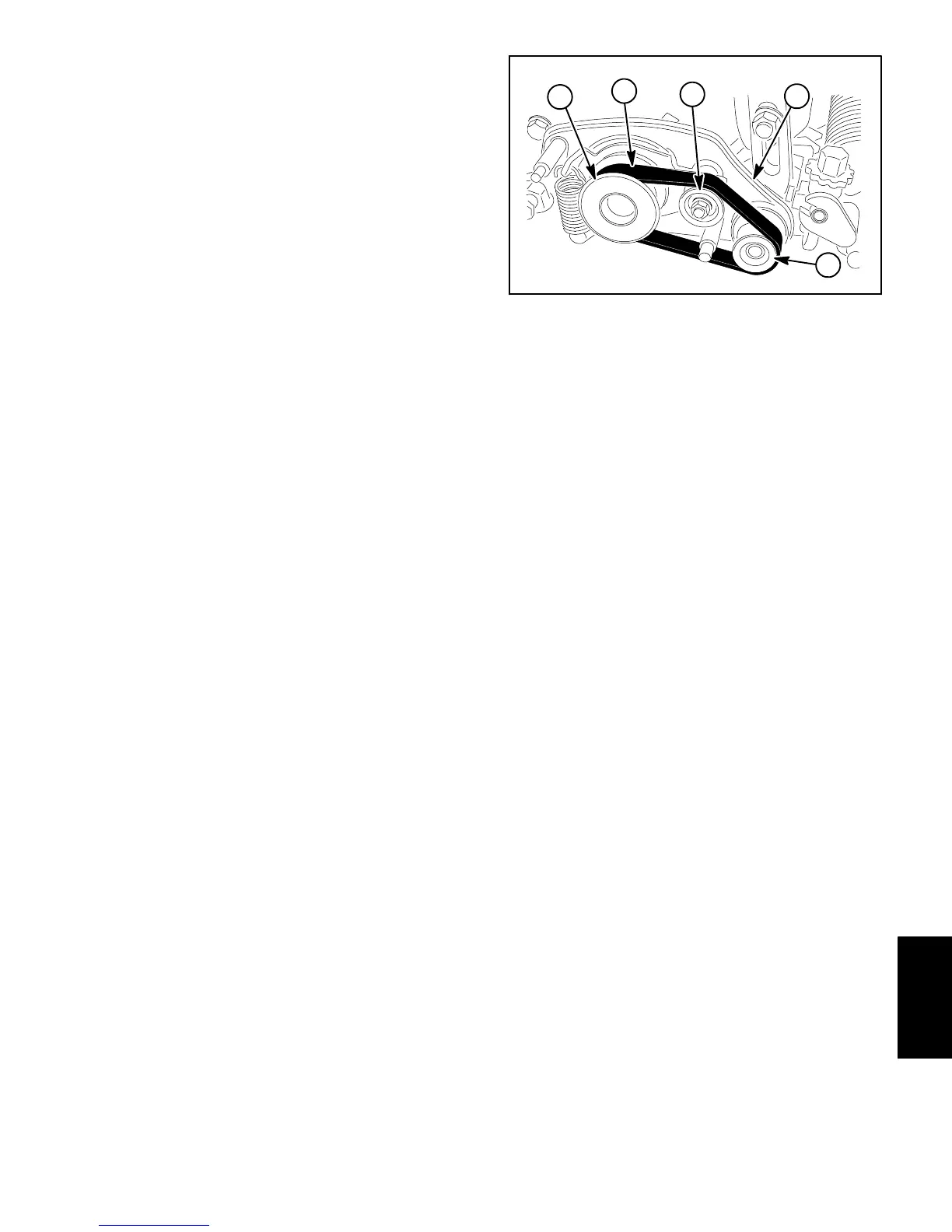

1. Drive pulley
2. Idler pulley assembly
3. Driven pulley
4. Drive plate assembly
5. Groomer drive belt
Figure 16
1
2
4
3
5
Groomer
