Greensmaster 3250--D Hydraulic SystemPage 4 -- 6 7
For repair of the piston pump, see Eaton, Medium Duty
PistonPump,RepairInformation,Model70160Variable
Displacement Piston Pump at the end of this chapter.
NOTE: The charge relief valve is attached to the piston
pumpbackplate(showninFig.45).Thebackplatemust
be removed to service the relief valve.
NOTE: The piston pump is equipped with relief valves
(items18and41)forboththeforwardandreversedirec-
tion.Duetoengineoutput,itisunlikelythattractionpres-
sure will reach relief valve settings. If, however, a piston
pump relief valve is leaking or otherwise faulty, traction
performance would be affected.
IMPORTANT: Theshimkit(item7)isusedtoreplace
theoriginalcrushring(notshown)inthecoverplate
(item 25). If the swash p late (item 10), cover plate
(item25)orhousing(item29)isreplacedduringser-
vicing, the old crush ring must be replaced. For in-
formation on crush ring replacement, see Piston
Pump Crush Ring Replacement in this section in
conjunctionwith thepiston pumpservicemanualat
the end of this chapter.

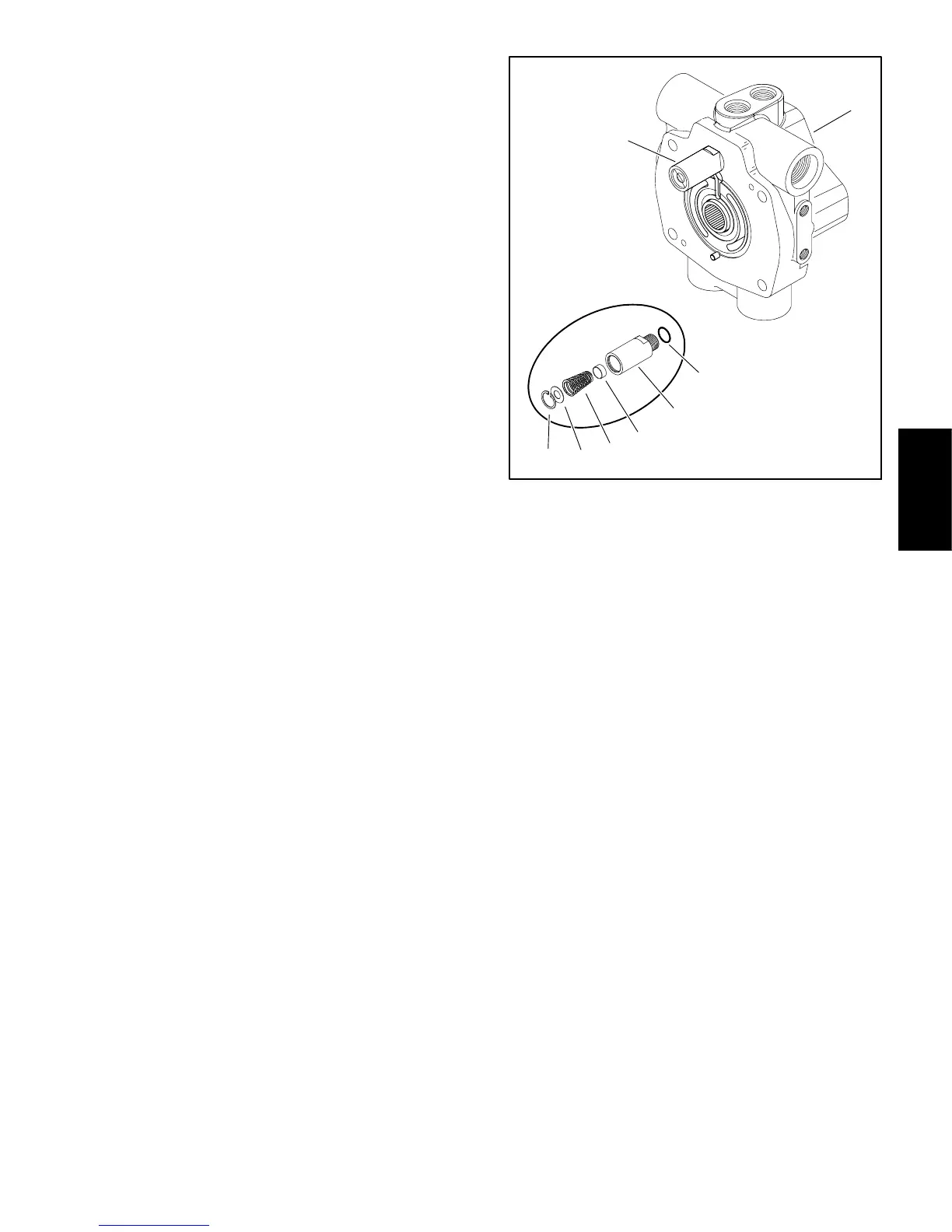

1. Back plate
2. Charge relief valve
3. O--ring
4. Housing
5. Poppet
6. Spring
7. Washer
8. Retaining ring
CHARGE RELIEF
1
2
8
VALVE
4
5
6
7
3
Figure 45
Hydraulic
System
