DISASSEMBLY AND REPLACEMENT
4 - 174
4.13.3 KD-1058 (Paper Feed Pedestal)

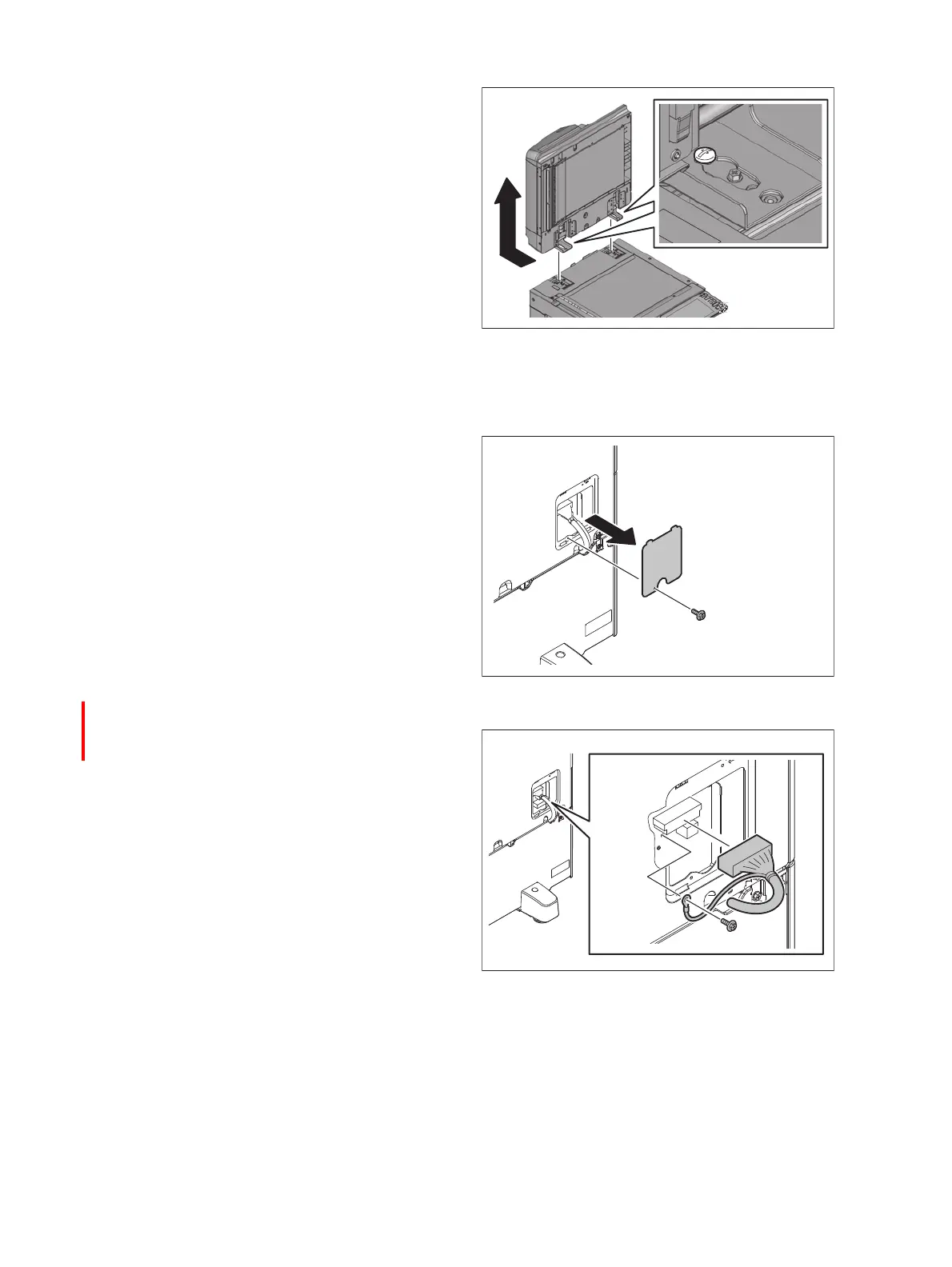

(11) Remove the reversing automatic document
feeder by sliding it toward the rear side.
Fig. 4-471
(1) Press the [Power] button on the control panel
to shut it down.
(2) Turn the main power switch of the equipment
off.
(3) Disconnect the power cable.
(4) Remove 1 screw and take off the cover.
Fig. 4-472
(5) Remove 1 screw and take off the ground
cable. Disconnect 1 connector.
Fig. 4-473
