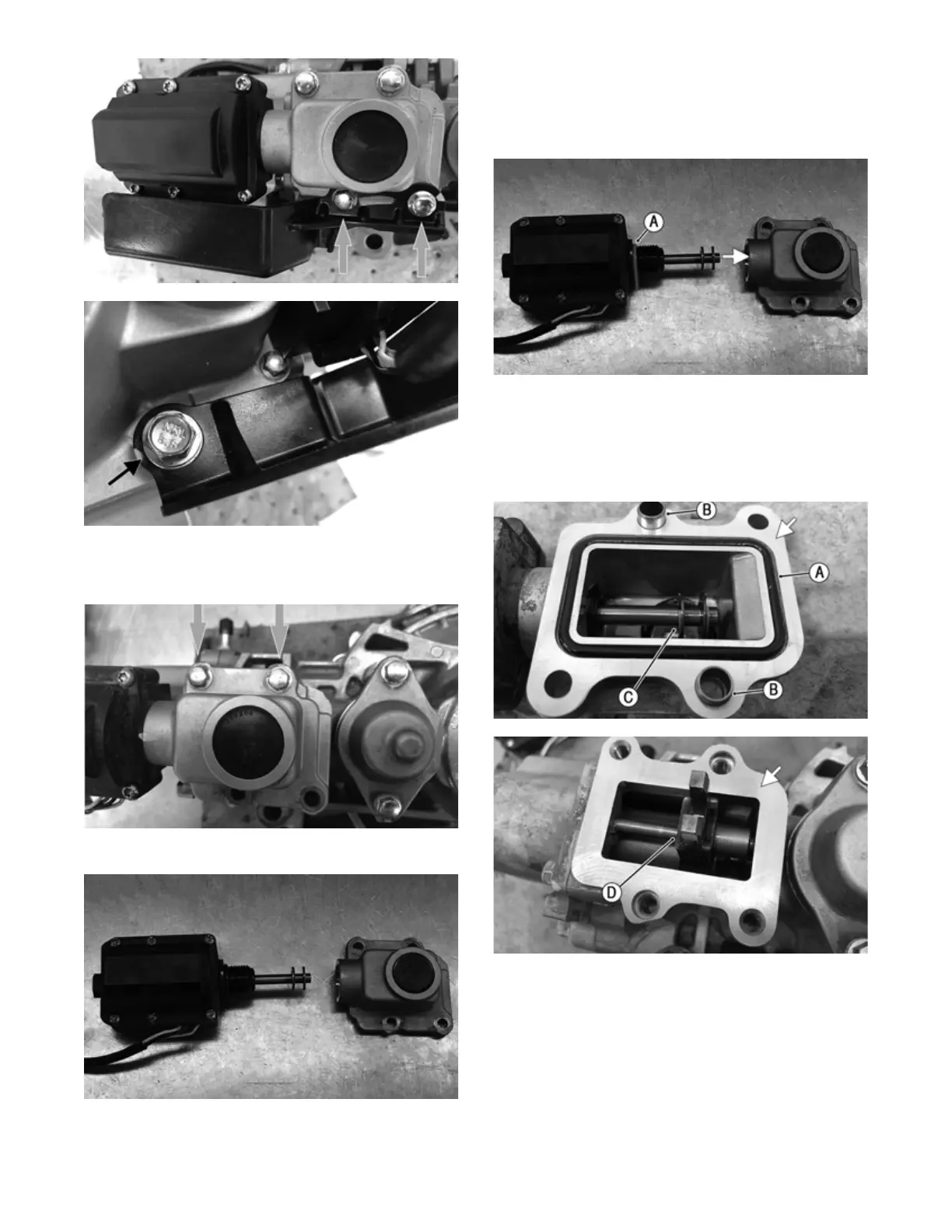

3. Remove the remaining two screws holding the actua-
tor adapter seat and remove actuator/adapter assem-
bly.
OHA165
4. Unscrew actuator from adapter seat.
OHA166
INSTALLING
1. Inspect actuator O-ring (A) for cuts and replace if
needed. Ensure sealing surfaces on both pieces are
clean and free of debris. Screw actuator into adapter
seat.
OHA166A
2. Inspect adapter O-ring (A) for damage and ensure
both machined surfaces are clean and free of debris.
Replace O-ring if damaged. Account for two align-
ment sleeves (B) and ensure that washers (C) on
actuator shaft align to capture shift fork (D) in front
differential.
OHA167
OHA168
3. Install actuator/adapter assembly to front differential
and secure with two fasteners.
