24
XR166A

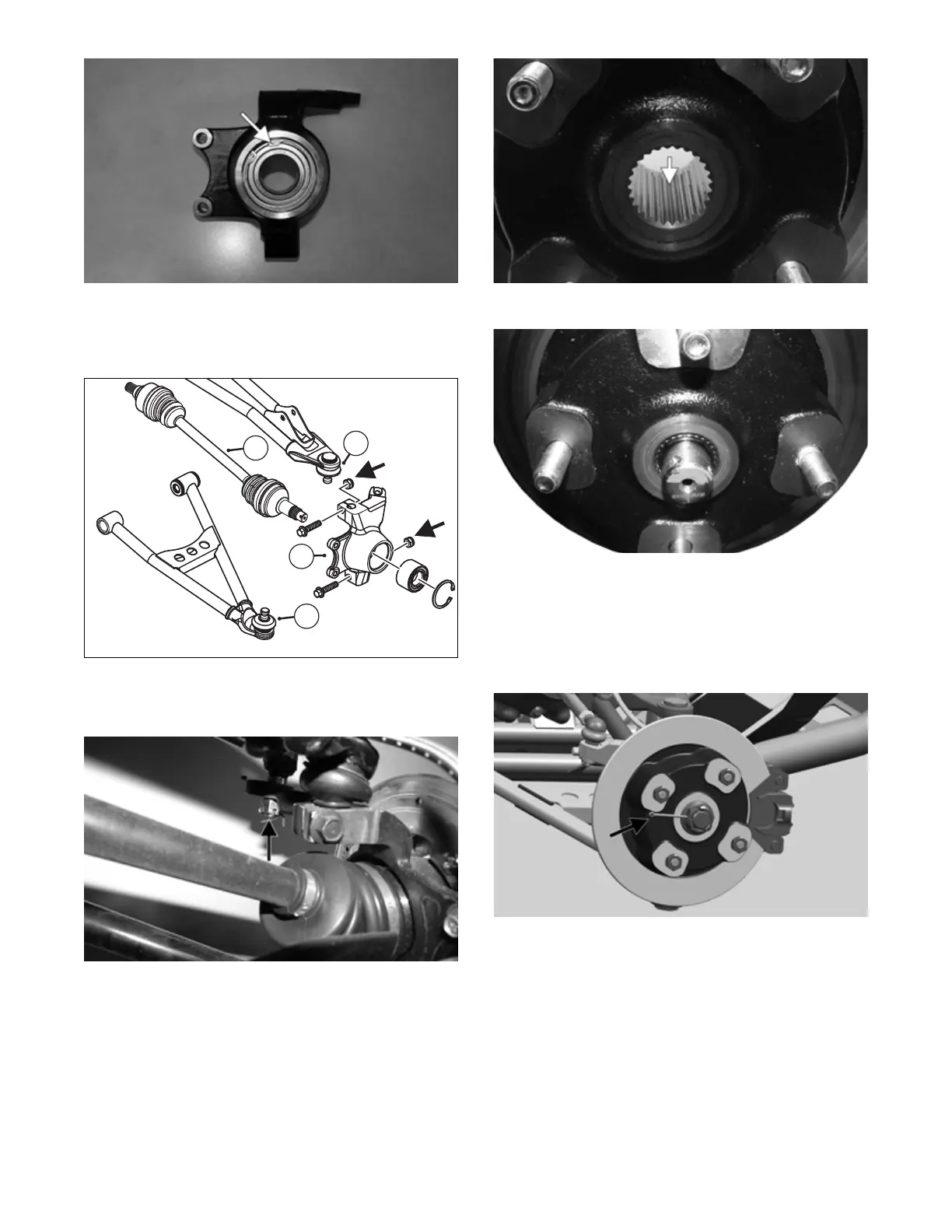

2. Position knuckle (A) on half shaft (B). Install the
upper (C) and lower (D) ball joints on the knuckle
and secure with the two cap screws and nuts. Tighten
to 45 ft-lb (61 N-m).
OHA068
3. Install the tie rod end and secure with the nut.
Tighten to 30 ft-lb (40.7 N-m); then install a new cot-
ter pin and spread the pin.
XR148A
4. Apply a small amount of grease to the hub splines.
MOD328
5. Install the hub assembly onto the axle.
MOD329
6. Secure the hub assembly with the nut. Tighten to 200 ft-lb
(271.2 N-m); then install the cotter pin (front) and
spread the pin to secure the nut or hub retaining plate
(rear).
NOTE: If the cotter pin does not line up, always
tighten to the next alignment.
OHA129
NOTE: If the hub retaining plate cannot be inserted
due to misalignment of the hole in the axle and the
slots in the nut, tighten the nut until properly aligned.
The hub retaining plate must be against the hub with
no gap.
