39
LYC010

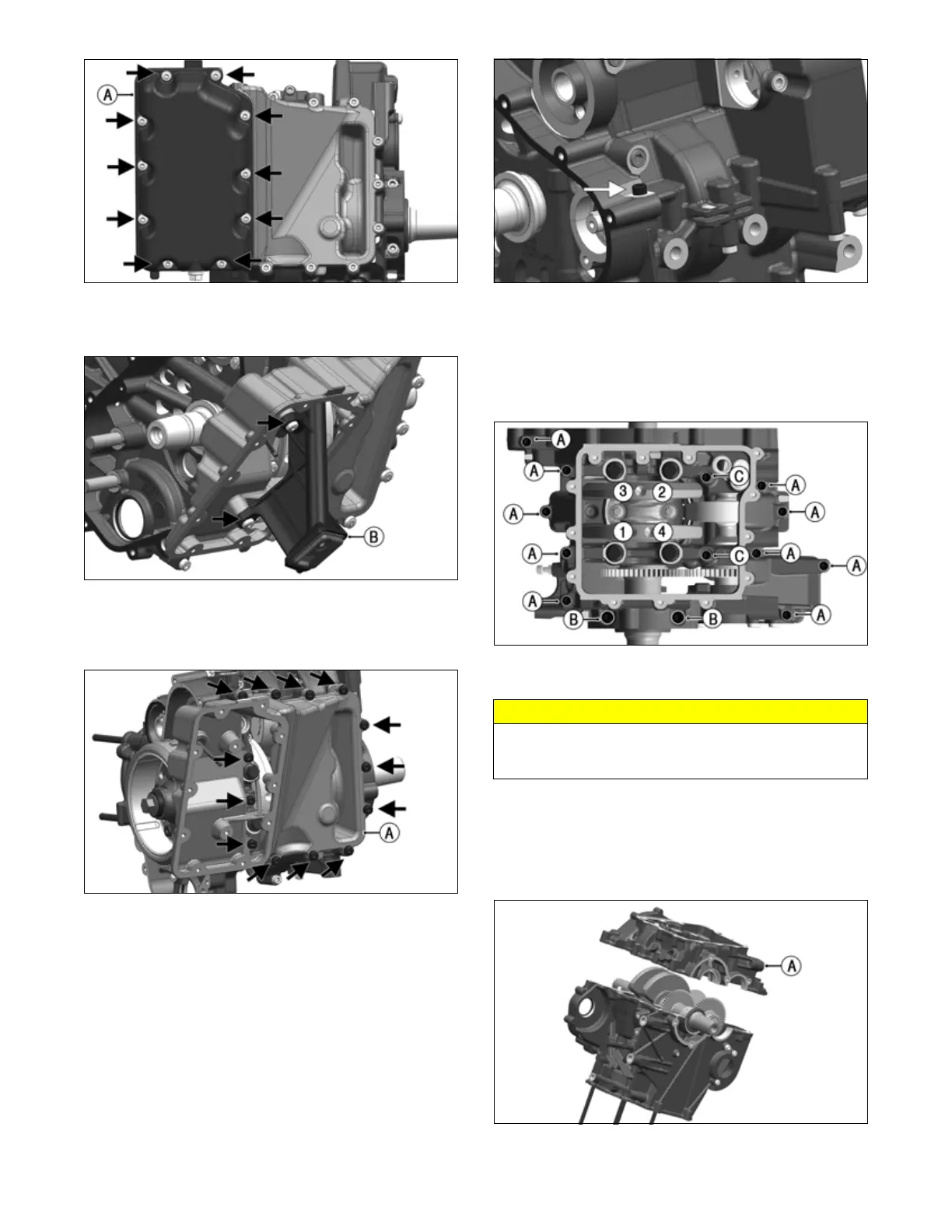

17. Remove two screws holding oil pickup assembly (B)
and remove oil pickup assembly.
LYC011
18. Remove 13 upper oil pan screws (10 outer and three
inner), then gently pry in pry areas to separate upper
pan from crankcase and remove pan.
LYC012
19. Remove one M6x35 screw on upper crankcase.
LYC037
20. With engine upside down, note the size and location
and remove the 10 M6x35 screws (A), two M6x90
screws (C) and two M8 screws (B) that secure the
lower crankcase to upper crankcase. Then remove
the four center bolts in a crisscross pattern to prevent
damage.
LYC014
21. Remove lower half of crankcase (A).
NOTE: Separate the upper and lower crankcase
using only the pry areas. Work slowly and carefully
and make sure the crankcase halves separate evenly.
NOTE: The upper and lower crankcase halves are
serviced as an assembly.
LYC015
CAUTION
DO NOT drive any tool between the crankcase halves to
separate the crankcase. Damage to the sealing sur-
faces will result. Use the available pry areas.
