Trane Tracer Summit Hardware And Software Installation

Ethernet communication
BMTX-SVN01C-EN 95

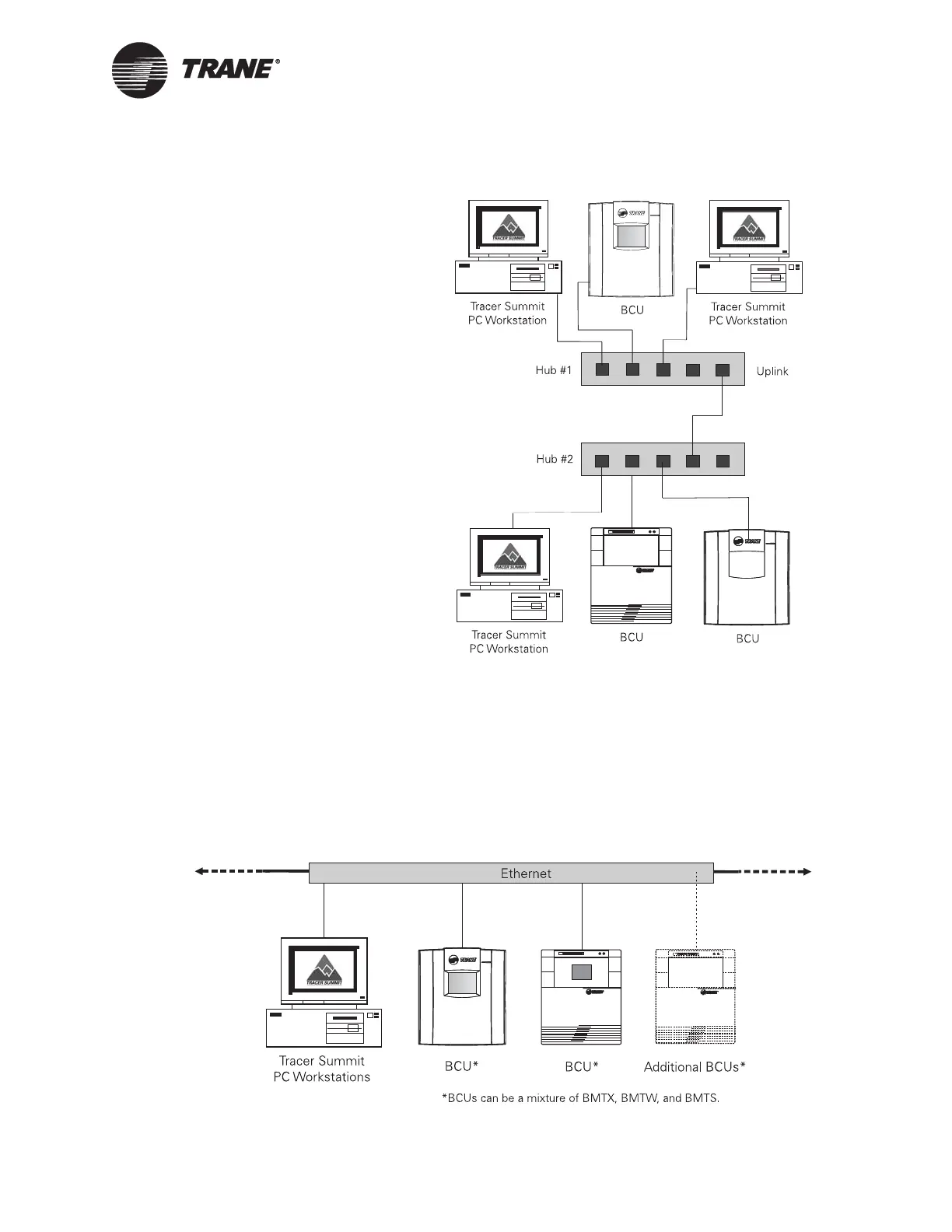

Figure 30. Typical star topology
Dedicated Ethernet networks
A dedicated network has only building automation system equipment on
it. An example of a dedicated Tracer Summit Ethernet network is shown
in Figure 31 on page 95.
For more information on designing a dedicated Ethernet network, see
Tracer Summit for Windows and Ethernet (BAS-EB-70).
Figure 31. Example of dedicated Tracer Summit Ethernet network
