Chapter 3 BMTX BCU mounting, installing, and power wiring
20 BMTX-SVN01C-EN
Mounting the back of the enclosure
The back of the enclosure is shipped with the termination board installed
inside it.
IMPORTANT
The termination board should be shipped with the grounding screw
installed. Verify this by checking the location shown in Figure 9.
The enclosure door is shipped separately. If the door has already been
attached to the enclosure back, remove it. To mount the back of the enclo-
sure:
1. Using the enclosure back as a template, mark the location of the four
mounting holes on the mounting surface (see Figure 9).

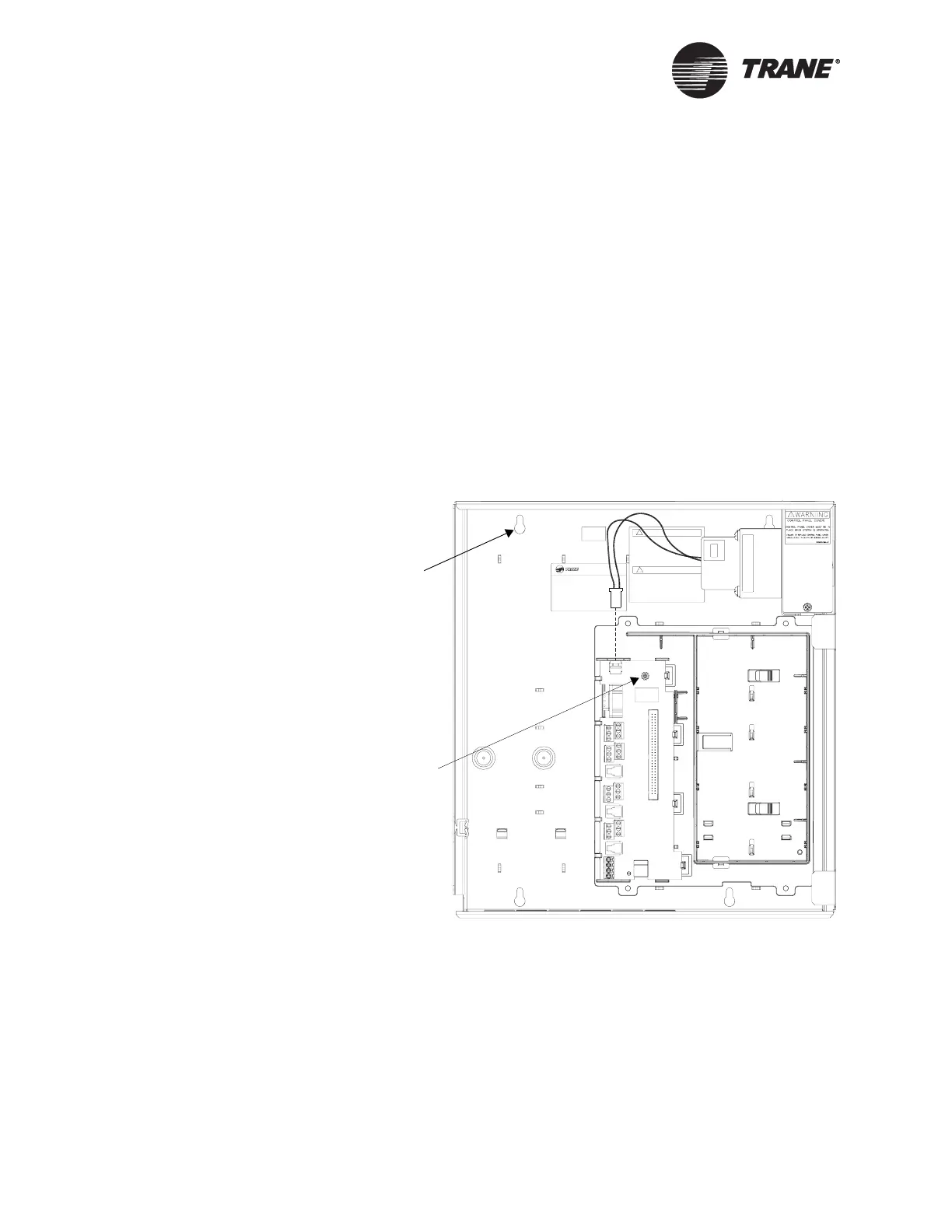

Figure 9. Enclosure mounting holes
2. Set the enclosure back aside and drill holes for the screws at the
marked locations.
Drill holes for #10 (5 mm) screws or #10 wall anchors. Use wall
anchors if the mounting surface is dry wall or masonry.
3. Insert wall anchors if needed.
4. Secure the enclosure back to the mounting surface with the supplied
#10 (5 mm) screws.
Mounting hole
(four locations)
Termination board
grounding screw
