Trane Tracer Summit Hardware And Software Installation

BMTX BCU parts list
BMTX-SVN01C-EN 9

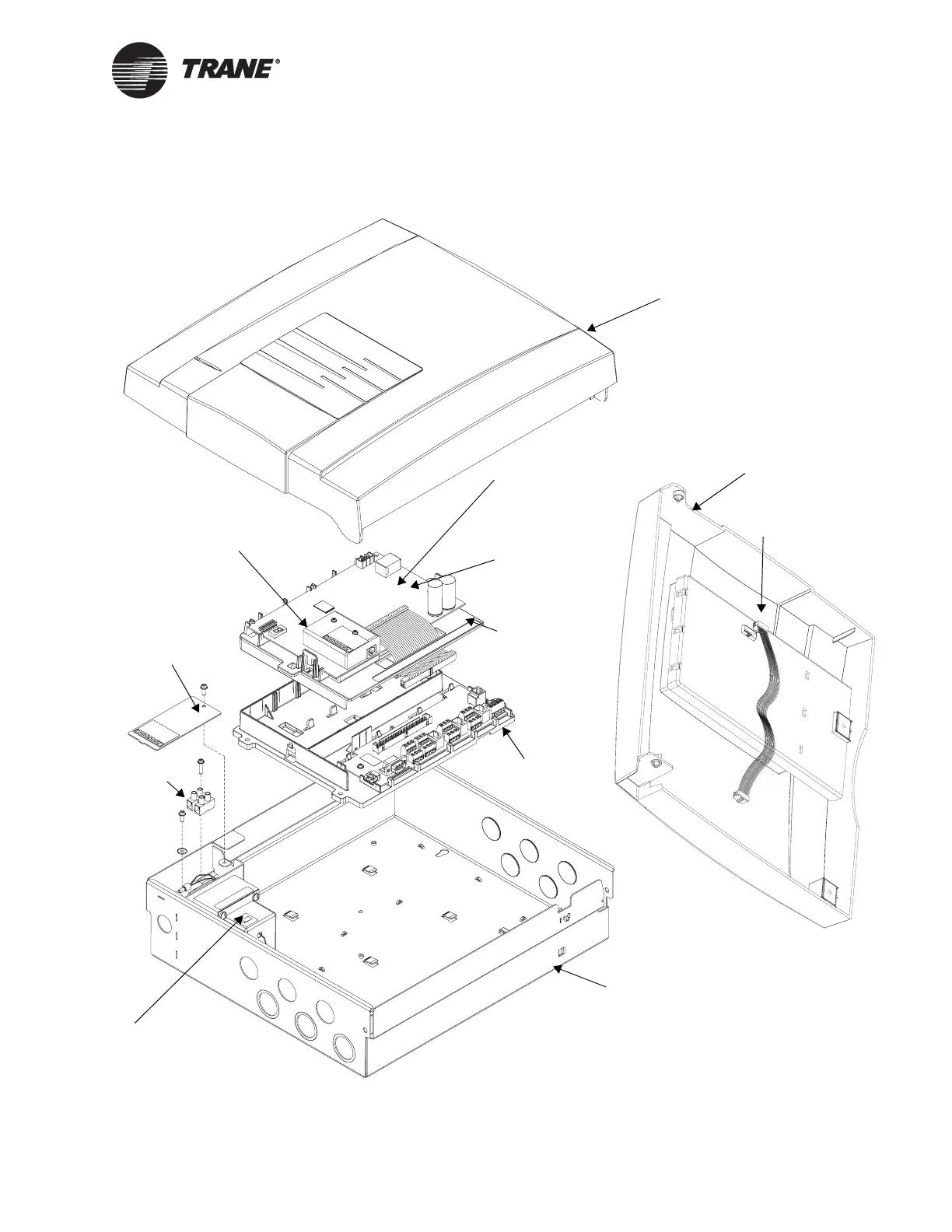

Figure 3. BMTX BCU parts
1: Main logic board,
with modem,
includes CE
enclosure;
includes item 8
2: (option) Main
logic board
without modem;
includes item 8
8: Carrier for
main logic
board; part can
be ordered
separately
3: Modem card does
not include CE
enclosure
7: Power wiring
cover
12: Two-pole
terminal
block
10: Metal enclosure
base
11, 12: Transformer
9: Termination
board with
lower carriage
5: Cover with
operator display
6: Operator display
cable
4: Cover, without operator
display
