Description
Main dimensions
28
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020
Main dimensions
Please take the measurements of your specific conveyor from the service
specifications of your order confirmation. Application-specific dimensions are
given as variables.

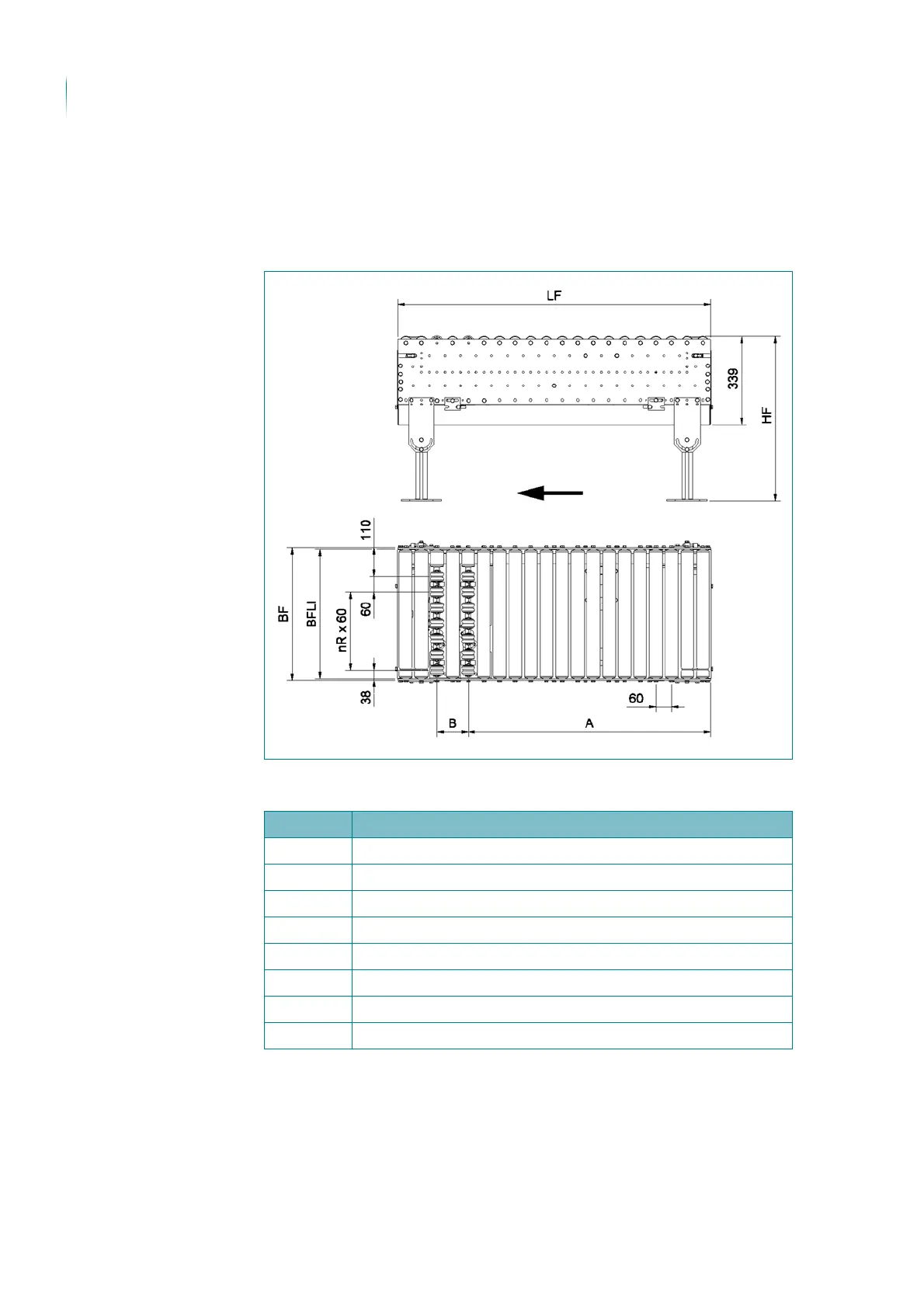

TS 4800 Main dimensions, example illustration
Supports and suspensions other than the illustrated ones may be installed
(see contract specifications).
Variables used
Variable Description
LF Nominal length
BF Nominal width
HF Conveyor height
BFLI Clearance between side guide
nE Number of swivel roller bars
NR Number of swivel rollers per swivel roller bar
A Distance of first swivel roller bar from infeed
B Distance of second swivel roller bar
