Description
Conveyor configurations
29

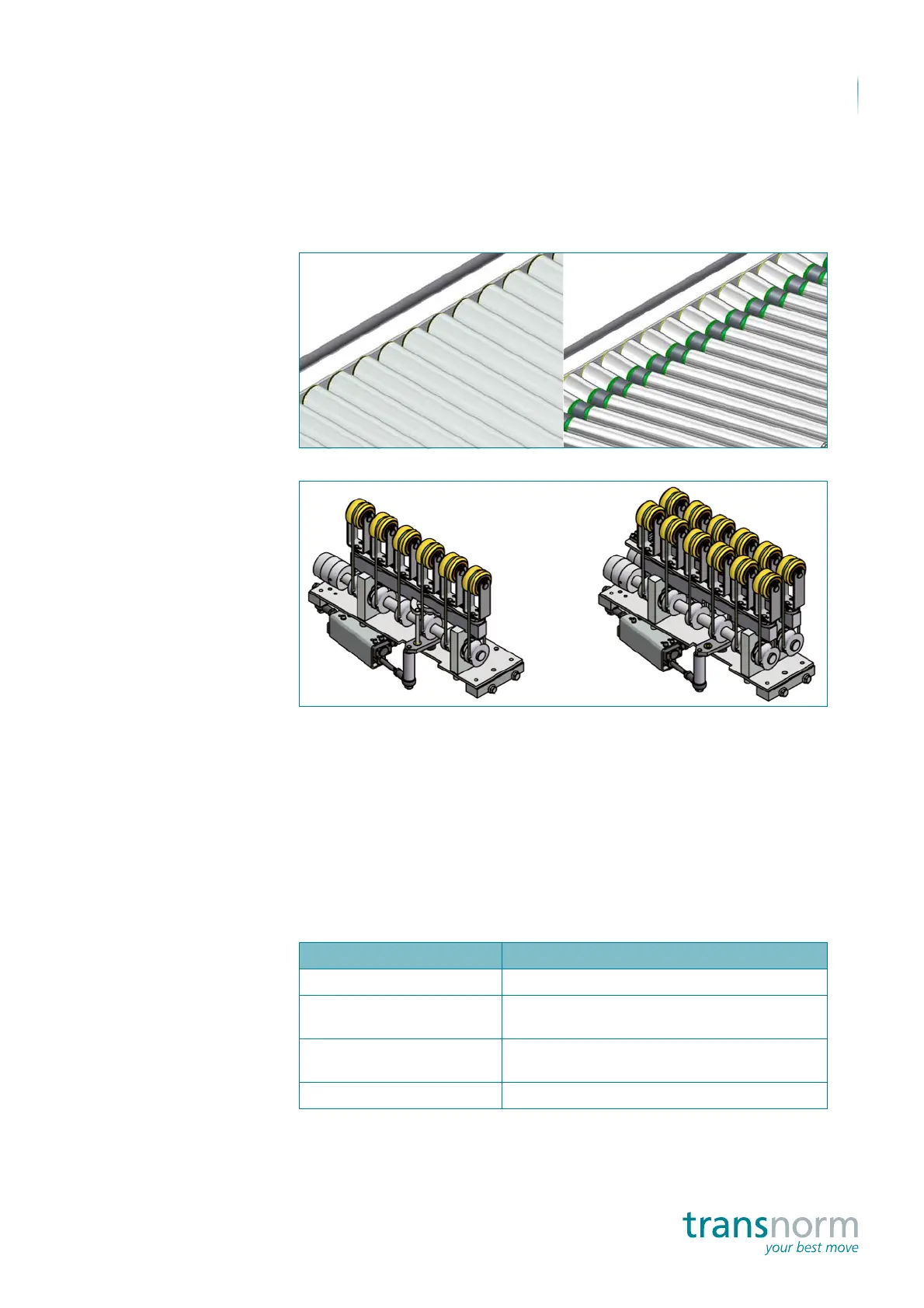

Conveyor configurations
The following configurations of the TS 4800 are possible. These are defined
as shown below.
TS 4800 with idler rollers / universal joint rollers
Pneumatic swivel roller bar – single-row / double-row
Technical data
For the technical data regarding your specific machine, please refer to the
service specifications of your order confirmation. The following refers to the
general technical data of preference items.
Mechanical Data TS 4800
Designation Data
Design versions see performance specifications
Conveyor length (LF) min. 540 mm, (+ n x 60 mm ), max. 7,380 mm,
n = 0,1,2,...
Conveyor width (BF) min. 436 mm, (+ n x 60 mm ), max. 916 mm,
n = 0,1,2,...
Conveying height (HF) min. 261 mm
