transnorm TS 4800 - Replacing the swivel roller assembly

Maintenance and repair
Replacing the swivel roller assembly
83
Replacing the swivel roller assembly
Requirements:
 Machine has been taken out of operation.
 Machine has been secured to prevent it from being switched on inadvert-
ently.
 Motor has cooled down if necessary.
 Drive belt is loosened.
 Corresponding idler rollers are disassembled.

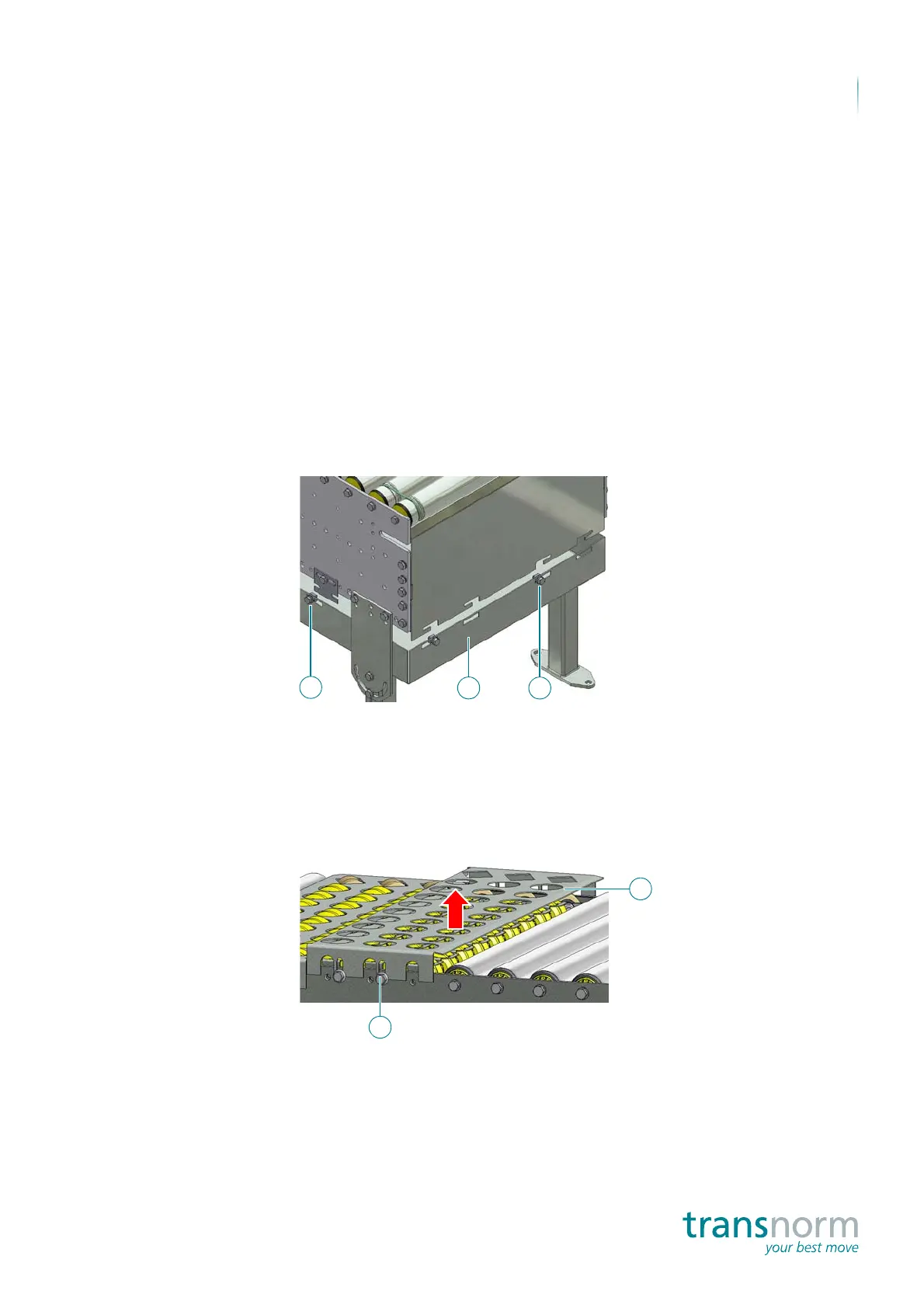

 Remove the bottom
cover
Complete the following steps:
1. Release the joining elements (1), (2) on all sides and push them to the
side.
2. Disassemble the bottom cover (3).
 Bottom cover is removed.
 Remove the finger
guard
Complete the following steps:
1. Release the joining elements (2) on both sides.
2. Remove the finger guard (1).
 Finger guard is disassembled.
1
2
3
2
1
