Transportation and erection
Final assembly on site
45
2. Check the levelling. Observe the correct heights for infeed and outfeed.
Depending on the system concept, different heights may be useful. The
system design engineer will comment on this.
3. Only in case of floor anchorage: anchor supports so they cannot change
position any more. The foot plates of the supports are equipped with
corresponding bore holes.
4. Only in the case of ceiling suspension: anchor the suspensions so that
they can no longer change position. The laces of the suspensions are
equipped with bores already.
5. Use retaining bolts to secure all joints with positive locking.
6. Manually check the transfer accuracy at the front and back of the
machine. Use loads according to specifications to carry out this check.
The machine has been aligned.
The machine has been installed and aligned.
Electrical connection
Danger of fatal injury caused by electricity
The machine is powered by 3-phase alternating current.
The electrical installation must be carried out by qualified and authorised
electricians.
Complete the following steps:

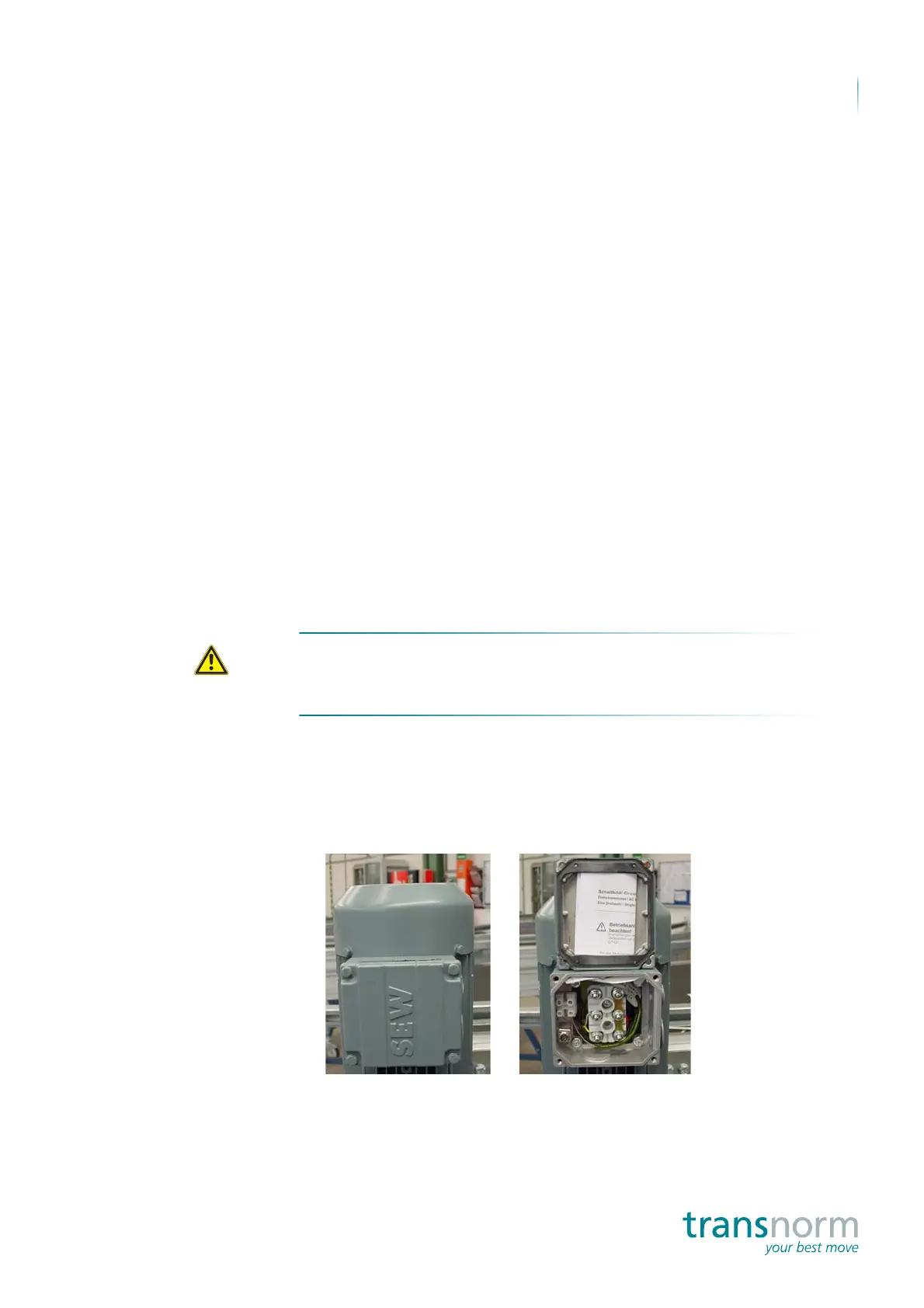

Connect the motor according to the wiring diagram provided by the
motor manufacturer. This is included in the motor delivery (see interior of
the terminal box cover).
If this wiring diagram is missing, the motor must not be connected.
The machine has been connected.
