transnorm TS 4800 - Replacing the gear motor

Maintenance and repair
Replacing the gear motor
77
Replacing the gear motor
When replacing the gear motor, have the new gear motor ready according to
the spare parts list and prepare it according to the manufacturer's specifica-
tions.
Gear motor, motor position M3
Requirements:
 Machine has been taken out of operation.
 Machine has been secured to prevent it from being switched on inadvert-
ently.
 Motor has cooled down.
 Remove the covers
Complete the following steps:

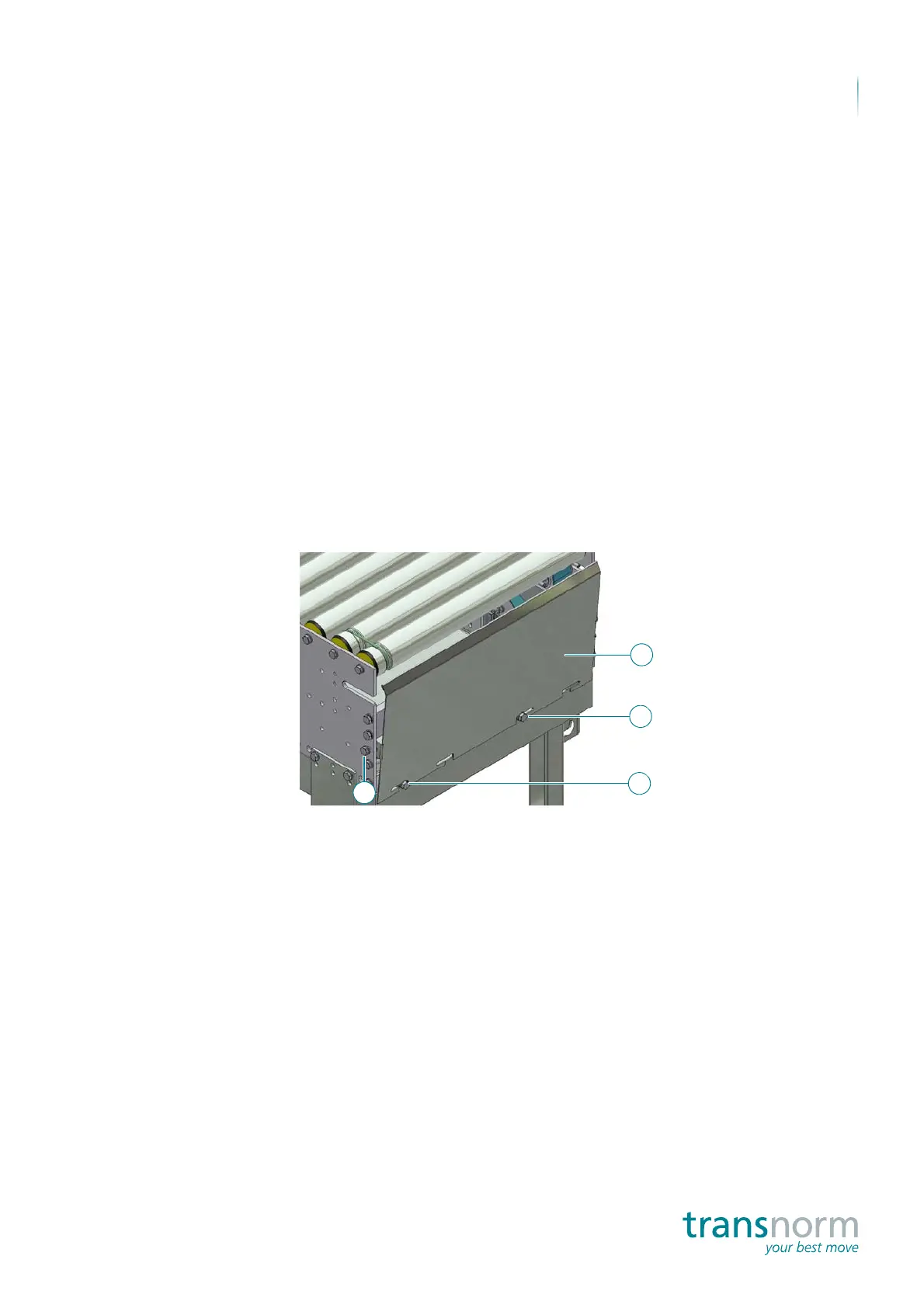

1. Release the joining elements of the front cover (1) on both sides.
2. Release the joining elements (2) and push them to the side.
3. Detach the front cover (3) on both sides.
3
2
1
2
