Transportation and erection
Final assembly on site
44
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020

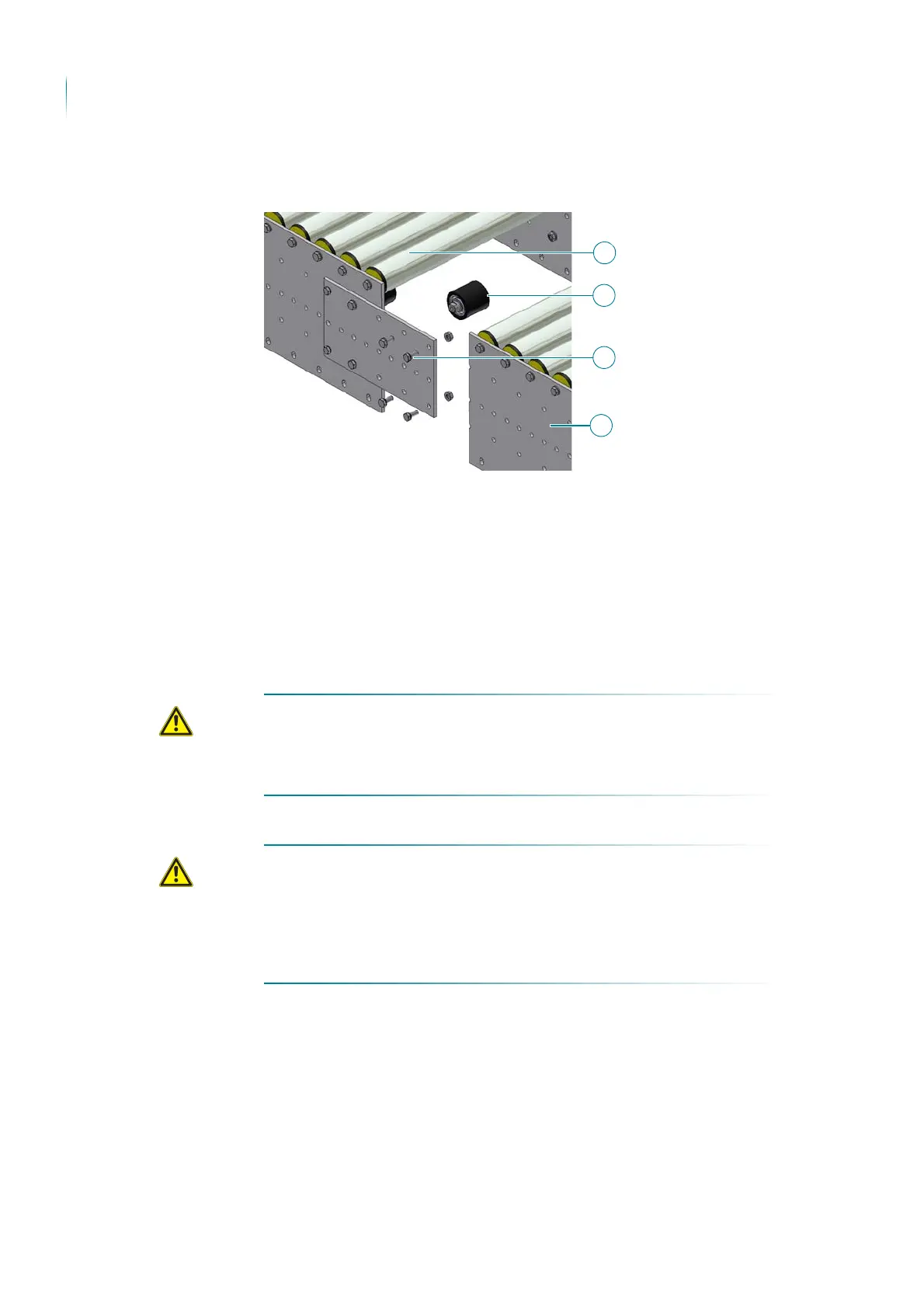

3. Push individual sections (1), (2) together and fit with the fixing
elements (3) provided.
4. If applicable mount tail rollers (4) on intended areas.
5. Install the tail pulley with the drawn-in drive belt (refer to the operating
instructions, Section Maintenance, Paragraph "Replacing the drive belt").
Frame has been mounted.
Align and anchor the
machine, all types
Danger of fatal injury through crushing of parts of the body!
If supports are not anchored, the machine can topple and fall over when
moved to position it.
Before aligning it, take up the machine with suitable lifting gear. Refer to
the information under "In-company transportation".
Danger of fatal injury through crushing of parts of the body!
Loose mounting bolts for the height adjustment may allow the machine to
slide.
When adjusting supports or suspensions, additionally support the
conveyor.
For suspensions, create a positive locking joint by means of retaining
bolts.
Complete the following steps:
1. Align the machine horizontally and free of torsion in accordance with the
required infeed and outfeed height. Proceed by loosening the fixing
screws for the support height adjustment.
