Transportation and erection
In-company transportation
39

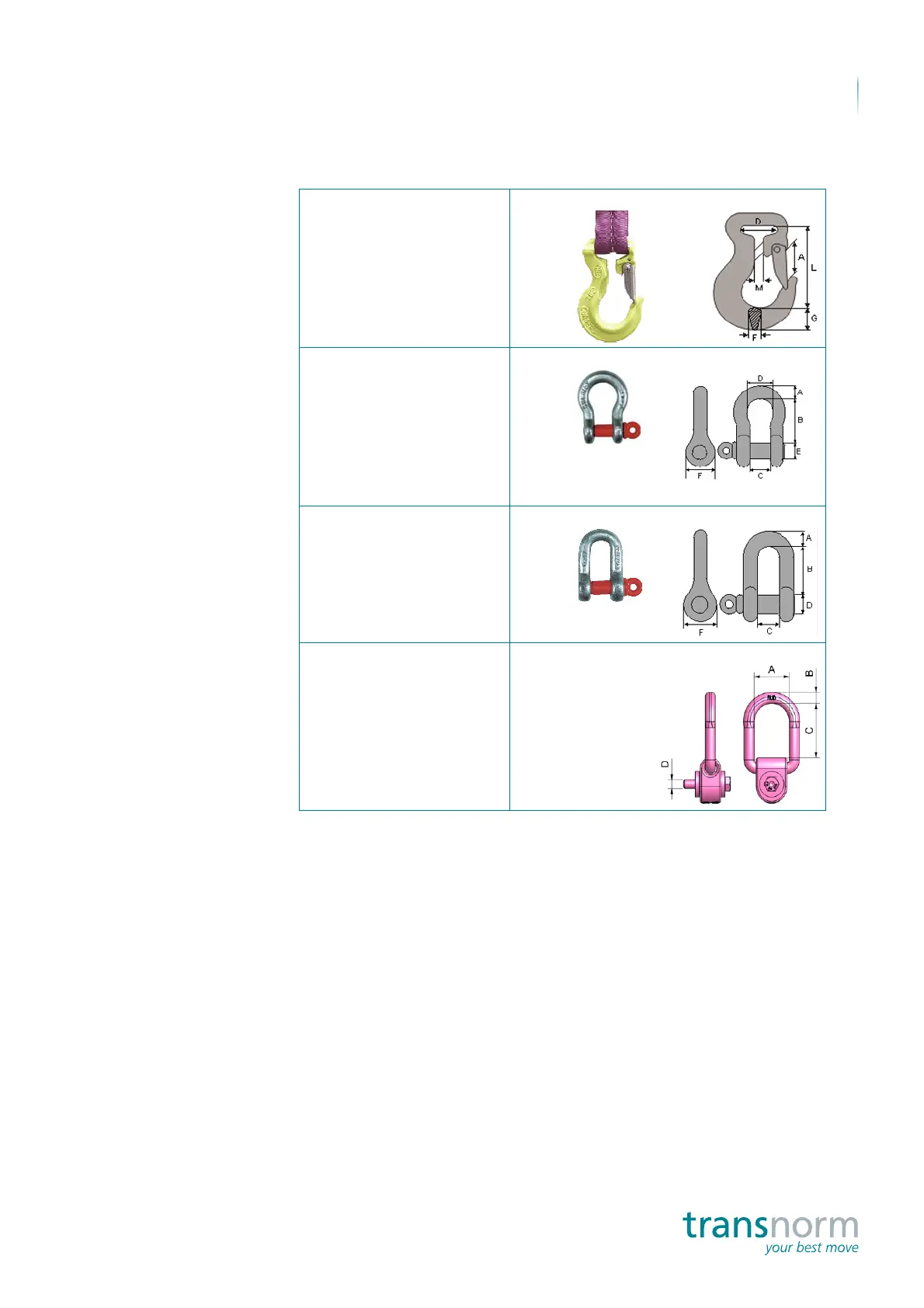

Round sling hook,
safe working load 1,000 kg
L = 84 mm
A = 24 mm
D = 35 mm
F = 17 mm
G = 20 mm
M = 8 mm
Anchor shackle,
safe working load 3,250 kg
A = 16 mm
B = 60 mm
C = 27 mm
D = 43 mm
E = 20 mm
F = 42 mm
Chain shackle,
safe working load 3,250 kg
A = 16 mm
B = 51 mm
C = 27 mm
D = 20 mm
F = 42 mm
Attachment eye,
load capacity 300 kg
A = 34 mm
B = 10 mm
C = 50 mm
D = M8
