Maintenance and repair
Replacing the drive belt
68
Operating instructions: Outfeed conveyor TS 4800
Version 3.6ENG, 27.01.2020

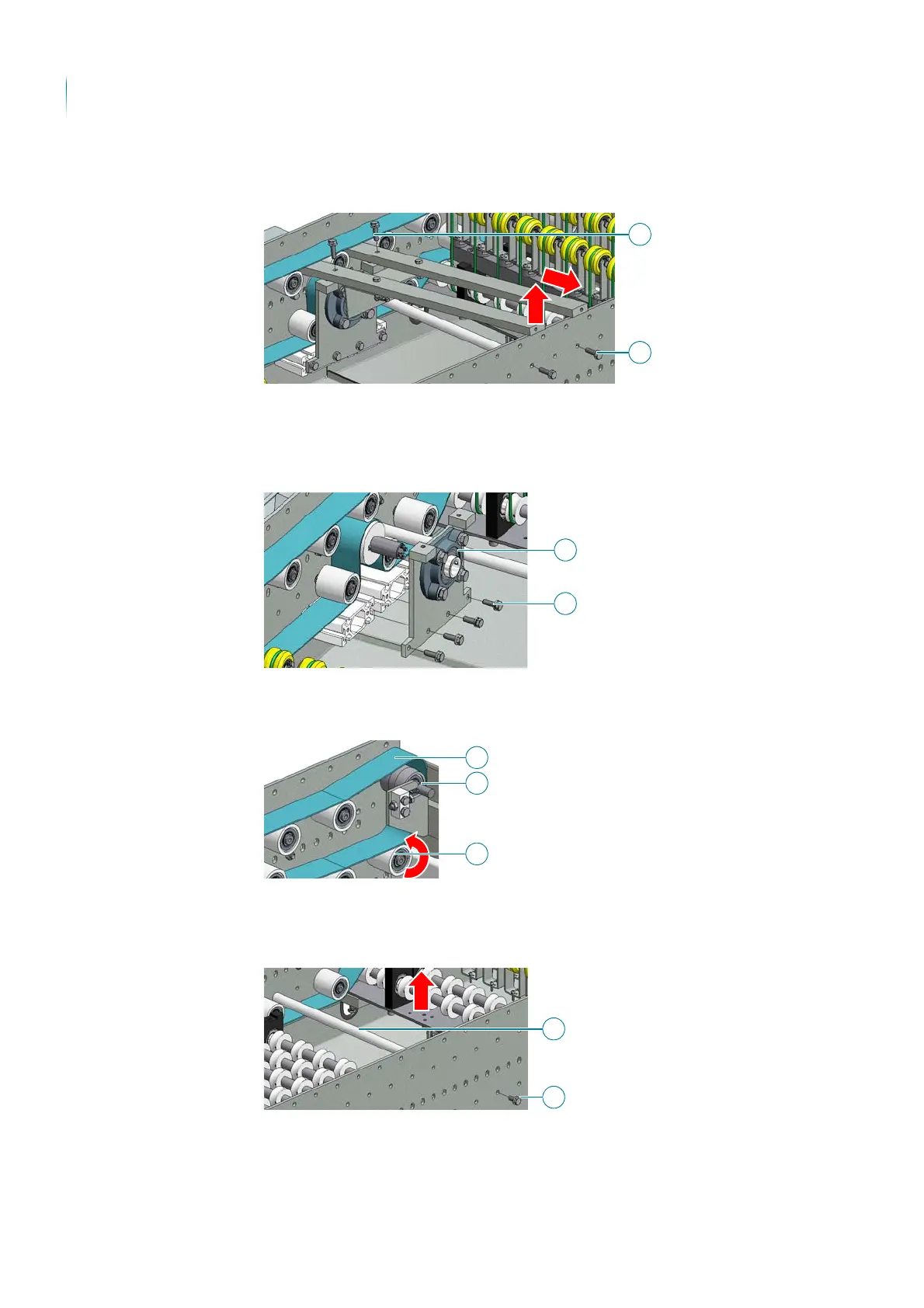

3. Remove joining elements (3) on both sides and joining elements (2). On
shaft-mounted gear drive station
4. Lift the cross beams fully in the direction of the arrows and place them
down.
5. Release the grub screws of the flange bearing (4) and remove the joining
elements (5).
6. Pull the flange bearing and base plate off.
7. Lift the belt (6) off the roller (8) on infeed and outfeed.
8. Remove the tail pulley (7) on infeed and outfeed.
9. Remove the joining elements (10) on both sides and then remove the
spacer (9).
3
2
5
4
6
7
8
9
10
