TRENDnet TEW-821DAP User Manual

TRENDnet User’s Guide
TEW-821DAP
34
© Copyright 2015 TRENDnet. All Rights Reserved.

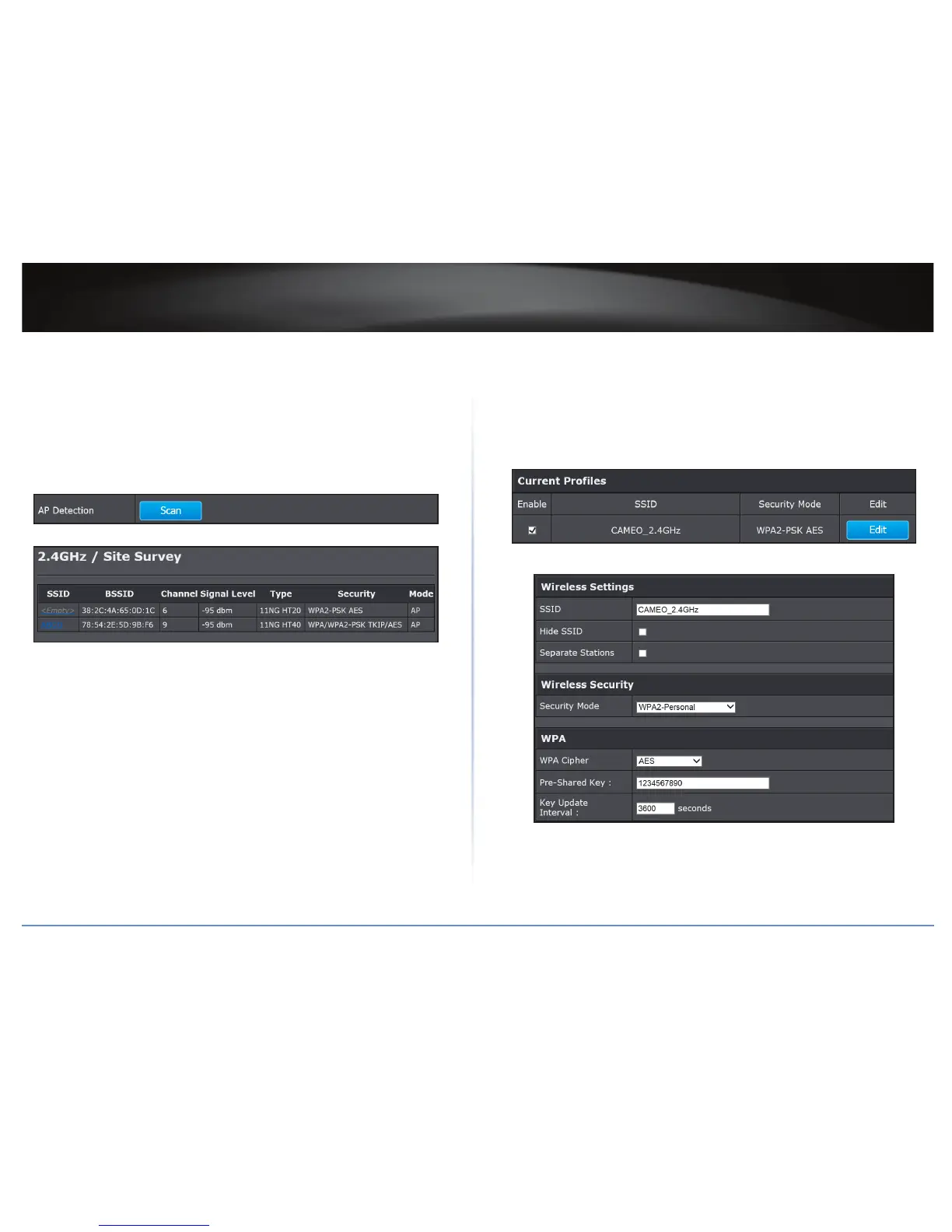

AP Detecon
Wireless 2.4GHz > Wireless Network
Before you setup your TEW-821DAP wireless sengs, you may want to know what signal
are currently broadcasng.
To view the site survey and list the running access points around you, do the following:
1 Log into your access point management page (refer to “Log in to Management Page”
on page 10).
2 Click Wireless 2.4GHz > Wireless Network.
3 Click Scan next to the AP Detecon eld.
 The site survey page opens.

In site survey you can see the following informaon:
• SSID: Service Set Idener. This SSID is human readable and performs as ESSID to
setup wireless groups.
• BSSID: Basic SSID. This is strictly unique SSID to idenfy a wireless access point,
WAP. It is also the MAC address of the wireless interface.
• Channel: 2.4GHz wireless channel number.
• Signal Level: The signal strength from the access point.
• Type: The 802.11 wireless mode this access point provides.
• Security: Which wireless security was set to use.
• Mode: This wireless source works on infrastructure mode or ad hoc mode.
4 Click Refresh to renew the informaon.
SSID Sengs
Wireless 2.4GHz > Wireless Network
To congure the SSID sengs, do the following:
1 Log into your access point management page (refer to “Log in to Management Page”
on page 10).
2 Click Wireless 2.4GHz > Wireless Network.
3 Select the prole from Current Prole secon and click Edit next to the prole.
 The SSID prole page opens.

4 Modify the following parameters:
• SSID: Select the human readable SSID to be easily idened. You can choose any
combinaon with 1 to 32 leers .
• Hide SSID: Check this box to hide SSID broadcasng. Your wireless network name
is broadcast to anyone within wireless signal range. When this is box is checked,
