Trimble Juno 5 series User Manual

Parts of the Juno 5 series handheld
This section describes the main features of the Juno 5 series handheld, and provides the information you
need to get up and running with the handheld.

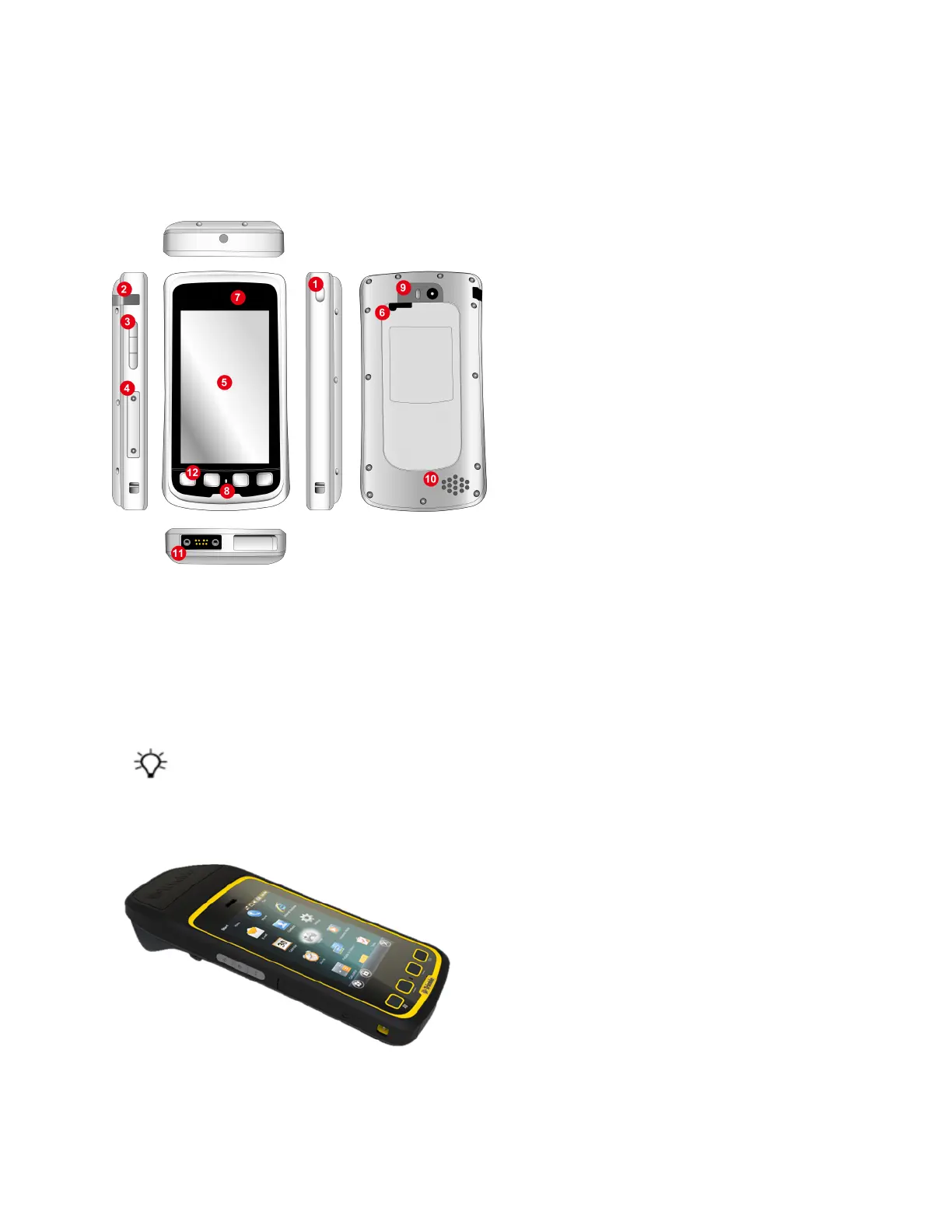

The Juno 5Band Juno 5Bhandhelds (with no barecode reader)have the following parts:
❶
Power button
❺
Touch screen
❾
Camera and flash
❷
Headset connector
❻
GNSS antenna port
❿
Speaker
❸
Volume / Programmable
control buttons
❼
Notification LED
⓫
Power connector
❹
MicroSD and SIMcard slot
❽
Microphone
⓬
Programmable buttons
Tip – To lock the screen and handheld keys without turning off the handheld, use the device lock option (see Device
lock, page 32).
The Juno 5Barcode handheld (5B or 5D)has the same parts as described above, and also had an
integrated barcode imager at the top of the device.

Trimble Juno 5 series Specifications

General

Brand	Trimble
Model	Juno 5 series
Category	Handhelds
Language	English
