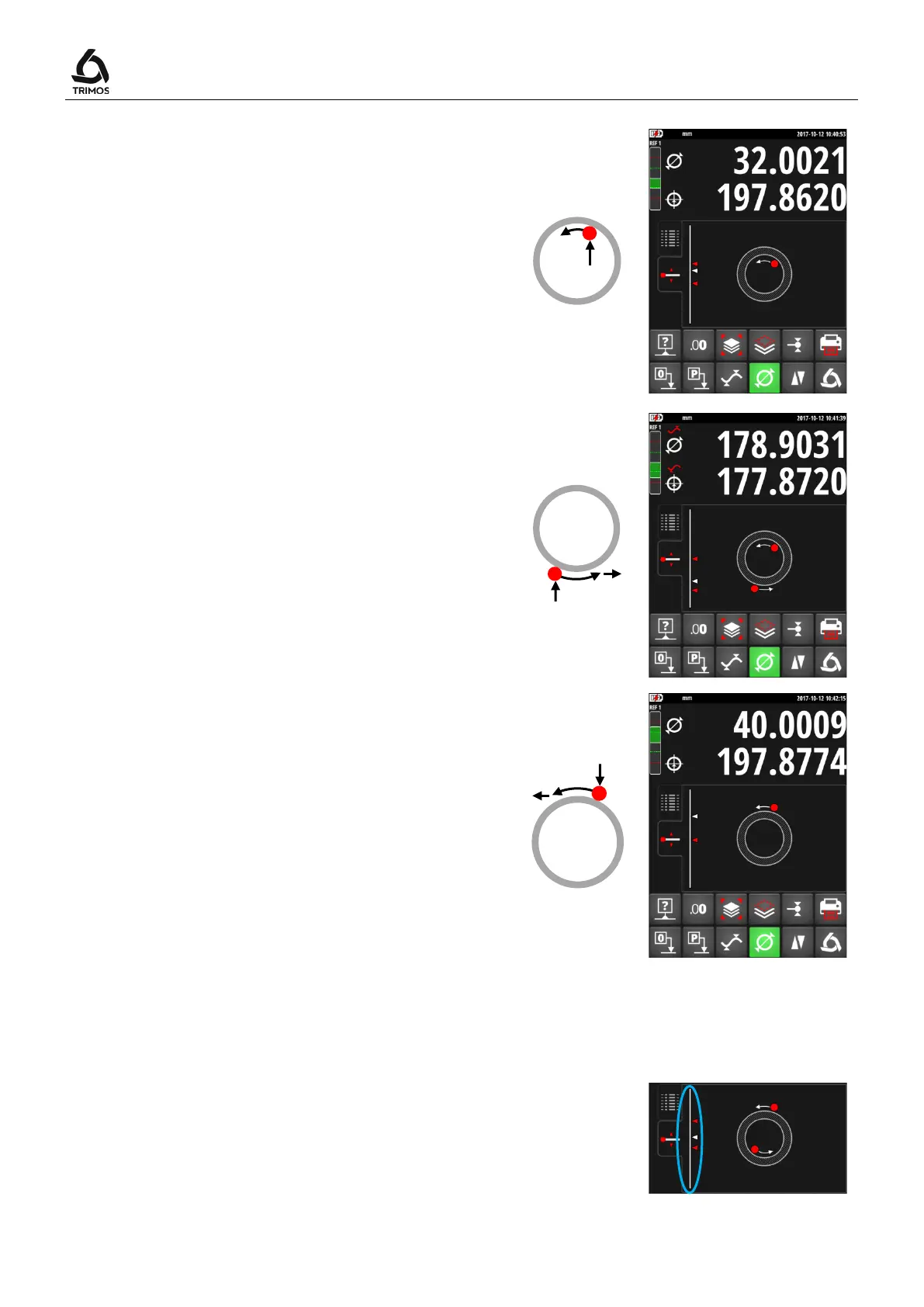

4a. Probe a point near the reversal point on the
side opposite the diameter (3). Move the
instrument (or the part) laterally to determine
the reversal point (4). Diameter and centreline
values are displayed on the 1
st
and 2
nd
lines of
the display respectively.
External diameter
3b. Set the measuring insert off centre on the
lower shaft profile as near as possible to the
reversal point (1). Move the instrument (or the
part) laterally to determine the reversal point
(2). It is automatically stored.
Remove the measuring insert slowly to the
side, off centre (3).
4b. Probe a point near the reversal point on the
side opposite the diameter (4). Move the
instrument (or the part) laterally to determine
the reversal point (5). Remove the measuring
insert to the side, off centre (6). Diameter and
centreline values are displayed on the 1
st
and
2
nd
lines of the display respectively.
5. When the measuring insert is removed, the
display remains frozen on the diameter and
centreline values.
Restart with point 3a or 3b for a new
measurement.
Note:
In "Graphical help" display mode, an indicator helps
in searching the reversal point. The diameter mode
can also be configured (§ 14.1).
