7.11 Angle (and cone) Measurements
This function measures the angle of a side or of a cone in
relation to the measuring table. For this measurement, a
support part and a gauge block are required.

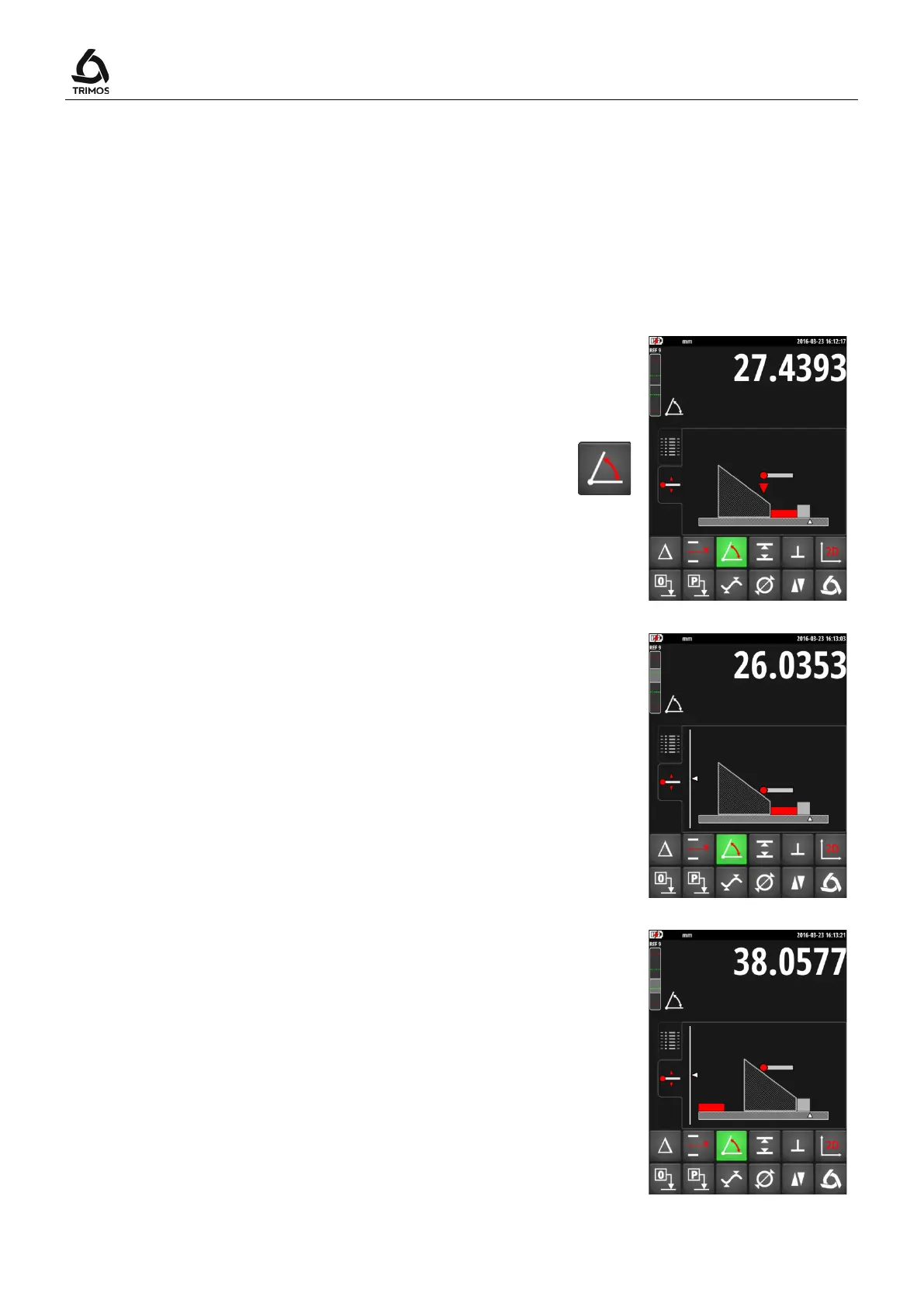

1. Call the angle measurement function by pressing on
the key shown alongside:
2. Take the first measurement with the support part (in
grey) placed against the base of the probe and the
gauge block (in red).
For the cone measurement, search the reversal point
by moving the instrument (or the part) perpendicular
to the axis of the inser
t while maintaining the distance
between the instrument and the constant part.
3. Withdraw the gauge block and take the second
measurement using the support part as shown on the
screen. For the cone measurement, search the
reversal point by moving the instrument (or the part)
perpendicular to the axis of the insert while
maintaining the distance between the instrument and
the constant part.
