User's Manual
750 50 0042 03 44

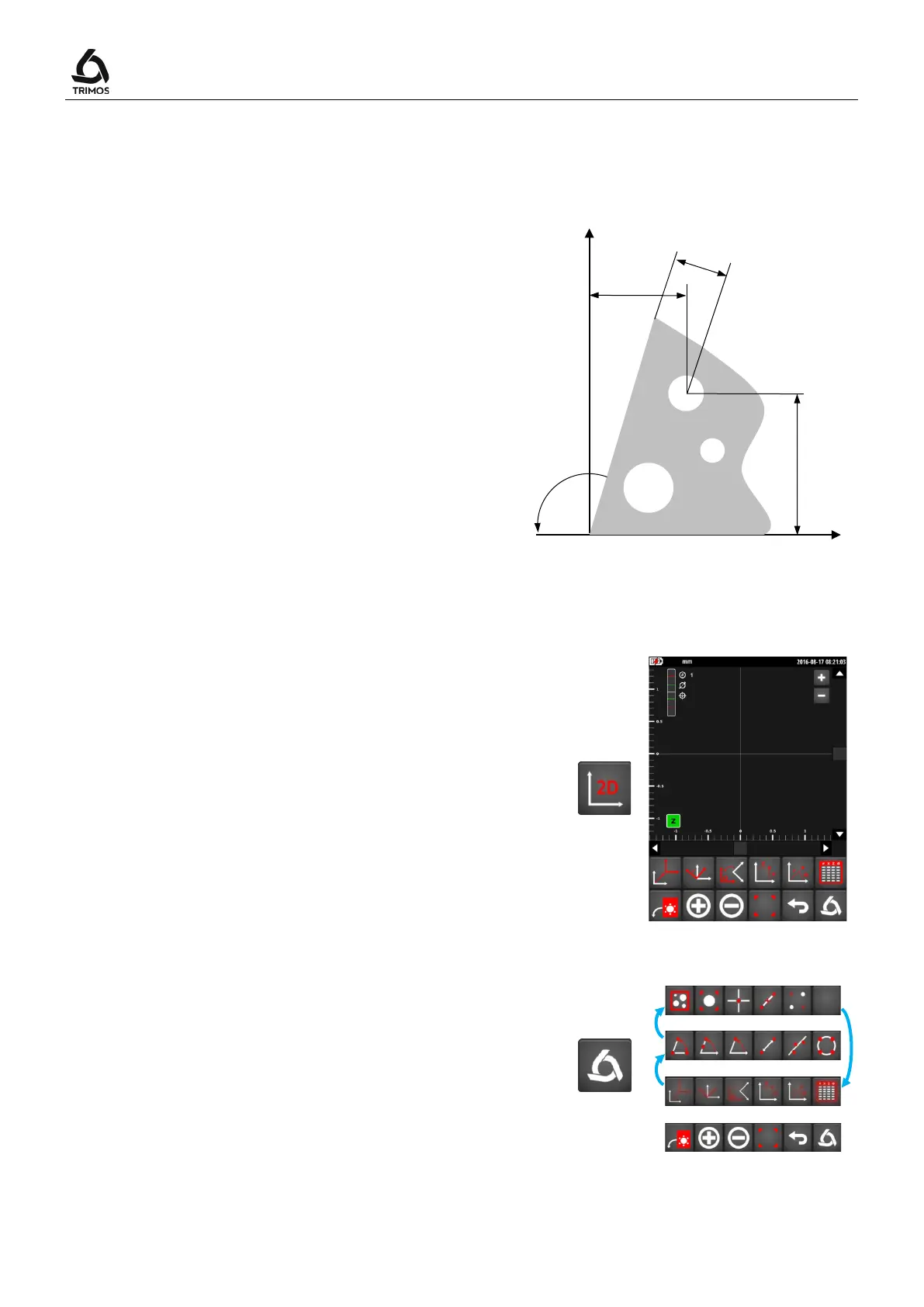

9. 2-COORDINATE MEASUREMENTS (2D)
This function offers 2D measurements of bores or
shafts placed on one surface. The position is
determined in the drawing of the measured parts
based on a Cartesian or Polar reference system
along with their diameters.
Between the measurements along the Z-axis and
those along the X-axis, the part is tilted in an anti-
clockwise direction, seen from the instrument. The
angle of inclination is between 45° and 135°.
In the diagram alongside, Z
m
and X
m
respectively
represent the values measured before and after the
tilting. Z
c
and X
c
represent the values returned in a
90° Cartesian system. These are the values
considered for calculations.
9.1 Getting Started
To begin a 2-coordinate measurement, press the
button from the main menu. The following screen is
displayed.
Note:
The bores should already have been numbered, the
inclination angle determined and the required reference
positions acquired.
The lower functions menu line is the main line. It is static.
The upper function line is scrolling. A press on the
key scrolls the other function lines.
m
c
c
m
