V7 / V9
750 50 0042 03 57

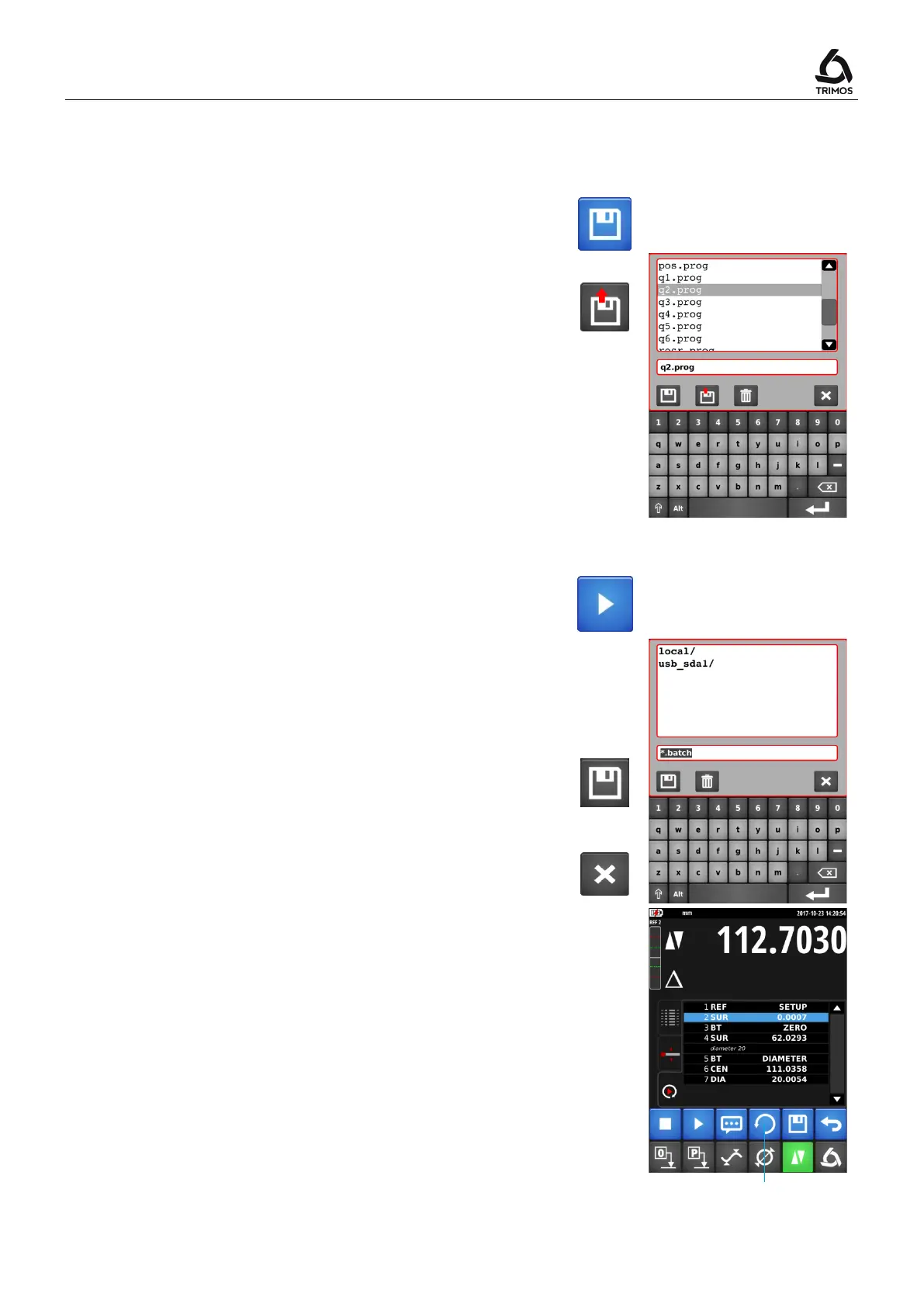

10.3 Running a Sequence
10.3.1 Loading
To load a previously recorded sequence, press the next
key.
Select the sequence to execute in the list and confirm
with the load key.
Note:
If a sequence has just been created, this step can be
ignored. Skip directly to startup (below).
10.3.2 Start
The execution of a measurement sequence starts by
pressing the
key.
The program asks whether the measurement results
should be saved in a batch (.batch file) so that they can
be analyzed later in the statistics menu.
If yes:
Enter a file name or select an existing file, ensuring that it
contains only results from the same program.
If not:
Exit the menu by pressing the cancel key.
The sequence starts immediately.
The current step is indicated in blue in the buffer.
Just follow each step. In motorized mode the instrument
moves alone.
In run mode the menu displays a new function:
1. Go back one step
