6. MAIN MEASUREMENT FUNCTIONS
6.1 Height Measurements

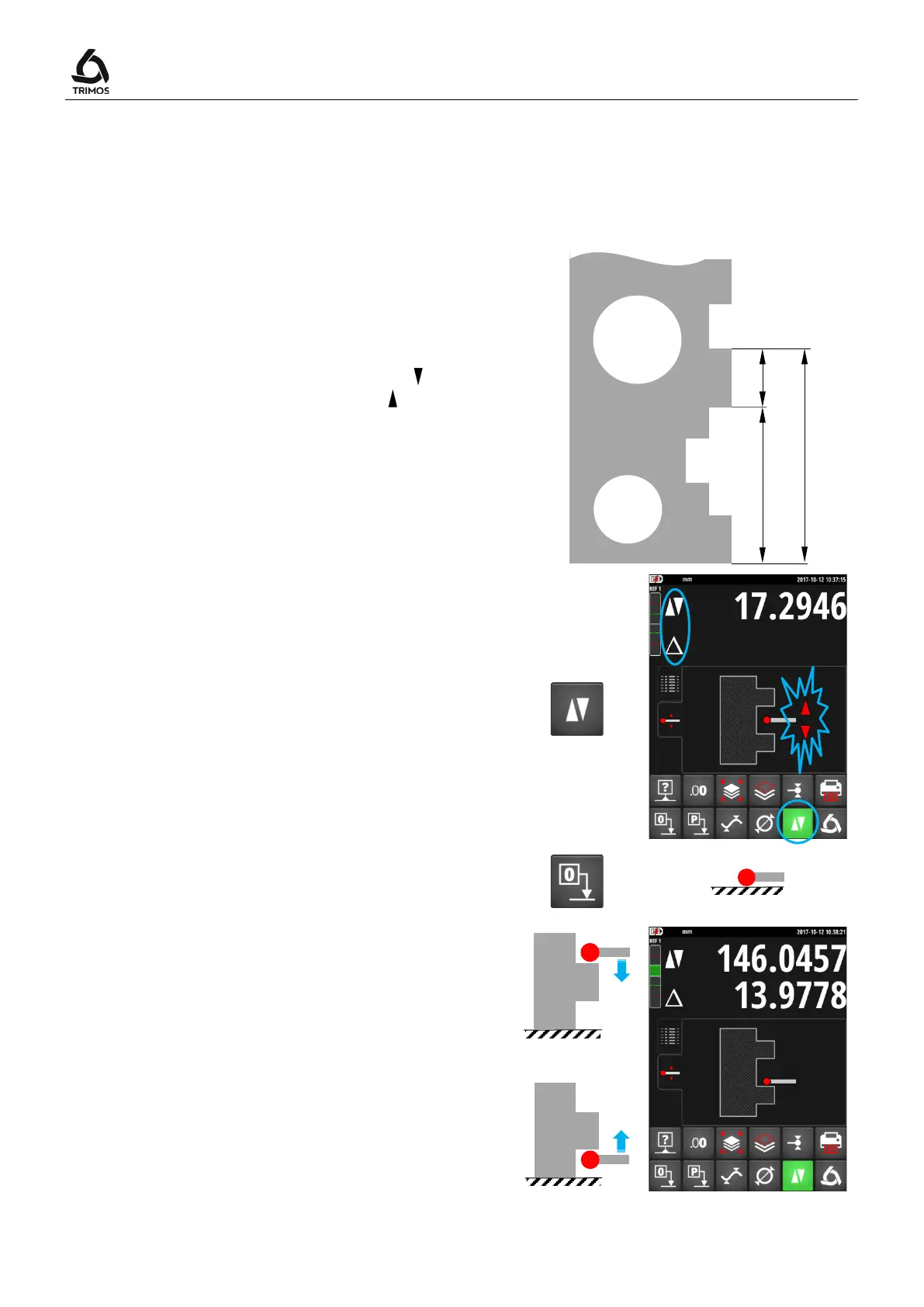

H1 = Height measurement downwards ( )
H2 = Height measurement upwards ( )
H12 = Chain dimensions
1. On starting-up, the instrument is in height
measurement mode. If the instrument is not in
this mode, select height measurement mode.
2. Set the display at zero or at a preset value with
the measuring insert probing a reference
surface (see § 7.1 and § 7.2).
3. Probe the surface to be measured downwards
or upwards. The probing indicator will display
the progression of the measuring force
application. When the right force is reached,
an acoustic signal will confirm the
measurement.
Note:
The first line of the display indicates the height
measured. The second line indicates the
distance from the former height measurement
(chain of dimensions).
