V7 / V9
750 50 0042 03 37

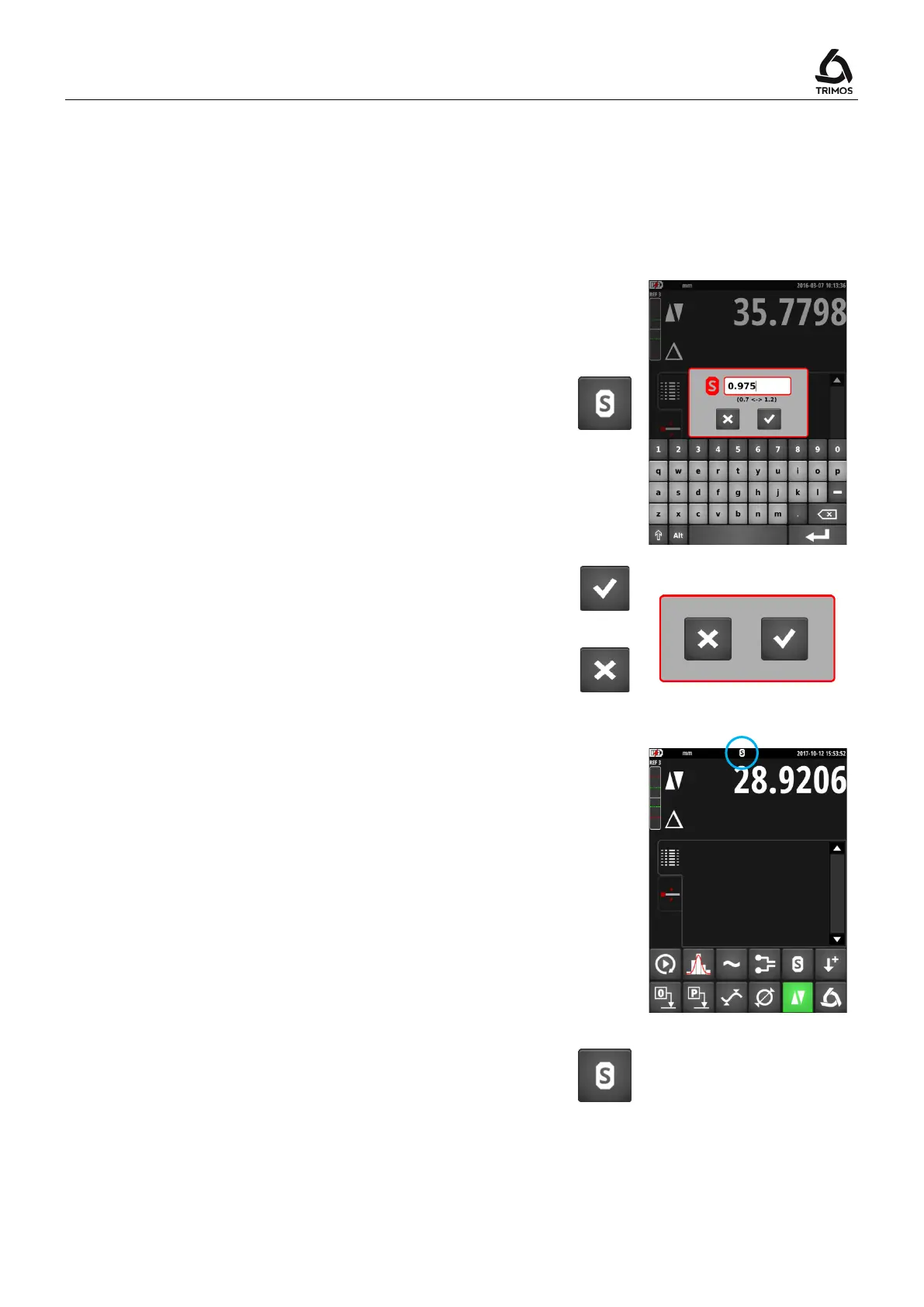

7.15 Shrinking Factor
A shrinking factor can be entered here, for example for
measuring injection moulds. This function allows in
general "distending" or "shrinking" the measuring system
by a defined factor.
1. To enter a shrinking factor, press the key shown
alongside for 2 seconds. Enter the desired factor
(value between 0.7 and 1.2).
> 2 s
2. Validate with the OK key.
To exit without saving the changes, press the Cancel
key.
OK
Cancel
When the shrinking factor is different from 1, the following
symbol appears at the top of the main display.
When a value other than 1 is recorded, the shrinkage
factor function can be activated/deactivated just by
pressing the key shown alongside.
