User's Manual
750 50 0042 03 74
15. AFTER SALES SERVICE

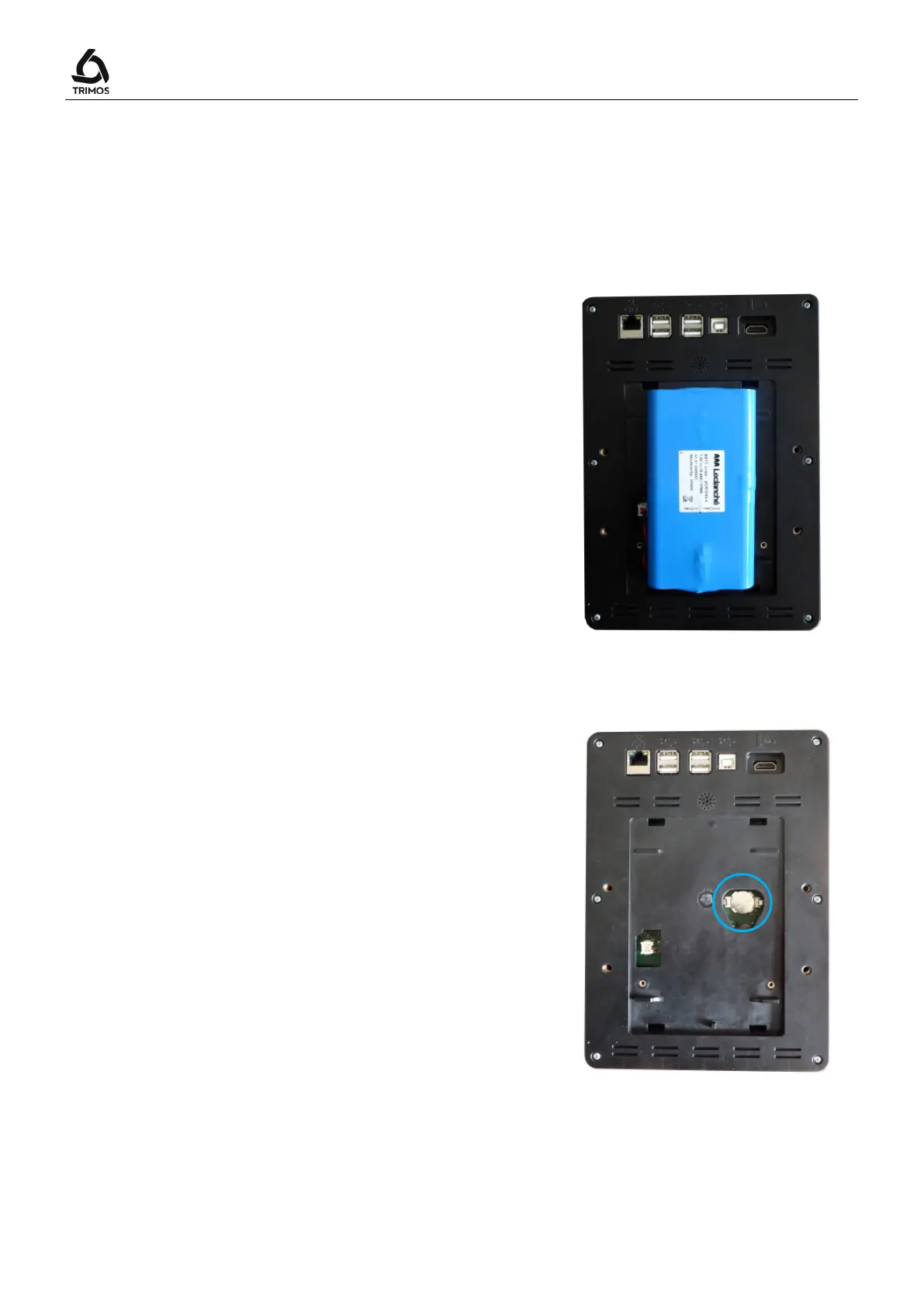

15.1 Replacement of Battery Block
When the instrument autonomy is not sufficient any more,
the battery block must be replaced :
1. Get a battery block from your TRIMOS agent
(TRIMOS ref.: 3704 0022).
2. Open the lid at the back of the display.
3. Remove the old battery block and replace it by the
new one (pay attention to the connector polarity).
4. Close the lid tightly.
5. Load the new batteries.
15.2 Replacement of Clock Back-up Battery
If the instrument stops showing date and time after it is
switched off, replace the back-up battery:
1. Get a new Lithium 3V 125-140 mAh type CR1632
button battery (ref. TRIMOS: 3705 0005)
2. Open the lid at the back of the display.
3. Remove the old button battery and replace it
4. Close the lid tightly.
