Rear Brake Fluid Level Inspection
▼ Check the level of brake fluid visible
in the reservoir.
▼ The brake fluid level must be kept
between the upper and lower level
lines (reservoir held horizontal).

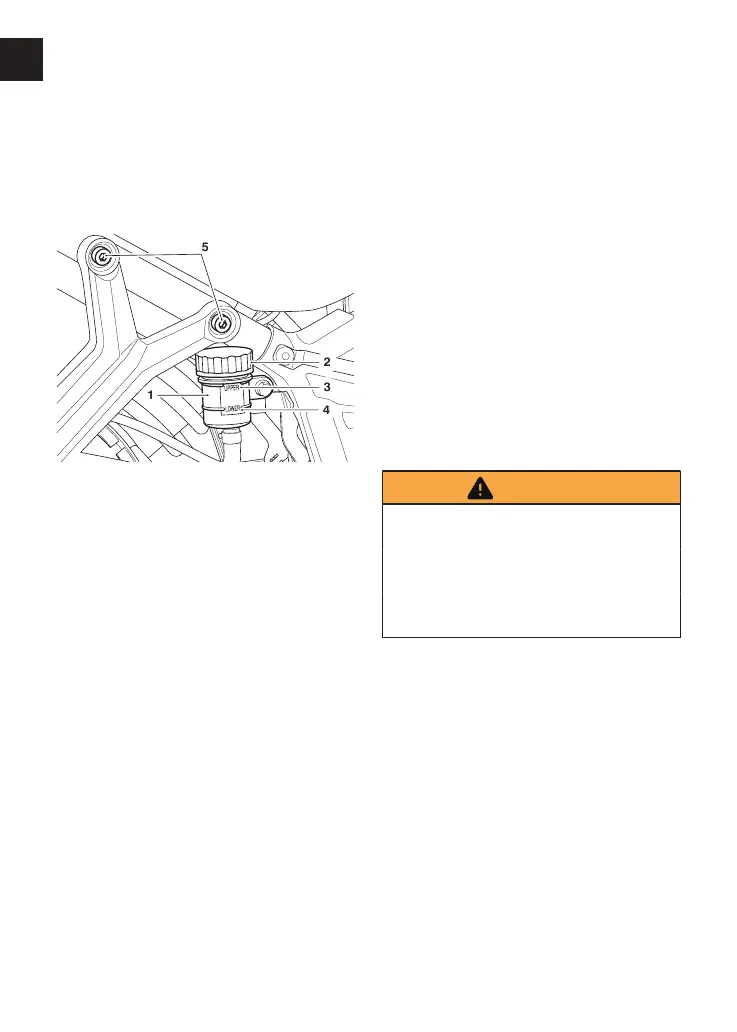

1. Rear brake fluid reservoir (Trident shown)
2. Reservoir cap
3. Upper level line
4. Lower level line
5. Rear footrest hanger fixings
Rear Brake Fluid Level Adjustment
▼ Release the two fixings and remove
the rear footrest hanger.
▼ Release the reservoir cap and
remove the diaphragm seal.
▼ Fill the reservoir to the upper level
line using new DOT 4 brake fluid from
a sealed container. Triumph
Performance DOT 4 brake fluid is
recommended.
▼ Fit the reservoir cap making sure
that the diaphragm seal is correctly
fitted.
▼ Fit the rear footrest hanger and
tighten the two fixings to 25 Nm.
Brake Light Switches
WARNING
Riding the motorcycle with defective
brake lights is illegal and dangerous.
Before riding the motorcycle, make
sure all lights are working.
Failure to follow the advice above
could result in serious injury or death.
The brake light is activated
independently by either the front or
rear brake. If, with the ignition in the ON
position, the brake light does not work
when the front brake lever is pulled or
the rear brake pedal is pressed, the
fault must be checked and rectified by a
competent person with the specialist
knowledge and technical understanding
of motorcycles, such as an authorised
Triumph dealer.
